Online Access Free ACMP-6.3 Exam Questions

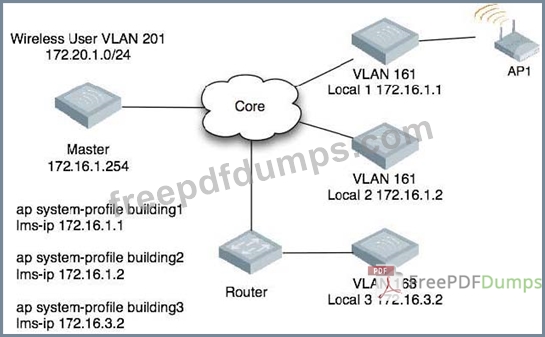

Exhibit: The above diagram has one master and three local controllers. AP1 GRE terminates on controller Local 1. All controllers are configured with the wireless user VLAN 201. A wireless user associates with AP 1. Only L2 mobility is enabled.

Which elements will know about this association?

• A.Local 1 and the Master
• B.Local 1 and Local 2 and the Master
• C.Local 1 and AP1
• D.Local 1 only
• E.All Controllers

How is an AP redirected to a Local controller after DNS resolution returns the Master's IP address?

• A.In the AP-provisioning screen, the LMS-IP attribute must be set
• B.Master looks at the AP-Group and CONTROLLER-IP attributes
• C.The AP must be statically configured to find the local controller
• D.In the AP-provisioning screen, set the CONTROLLER-IP attribute
• E.Master looks at the AP-Group and LMS-IP attributes

Exhibit:

Referring to the above screen capture, on which Controller can you create a vlan?

• A.All three Controllers
• B.Controller 10.1.11.100 only
• C.Controller 10.254.1.101 only
• D.None of the Controllers
• E.Controller 10.1.11.101 and 10.254.1.3 only

An AP 105 was converted into a RAP. The RAP can authenticate its IPSec tunnel to a controller using which of the following methods? (Choose two)

• A.IP address authentication
• B.Captive Portal authentication
• C.Certificate/MAC address authentication.
• D.Username/Password authentication.
• E.802.1X/EAP authentication

If a Remote AP (RAP) is attempting to contact a controller that is behind a NAT device what protocol must be allowed through the NAT/Firewall?

• A.SSH
• B.NATT
• C.GRE
• D.IPSec
• E.PAPI
