Online Access Free Cisco.200-301.v2025-11-10.q556 Practice Test (Page 21)

200-301 Exam Question 96

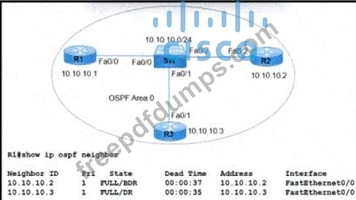

Refer to the exhibit. R1 has taken the DROTHER role in the OSPF DR/BDR election process. Which configuration must an engineer implement so that R1 is elected as the DR?

A.R1(config)#interface FastEthernet 0/0R1(config-if)#ip ospf priority 200R1#clear ip ospf process

B.R2(config)#interface FastEthernet 0/2R2(config-if)#ip ospf priority 1R2#clear ip ospf process

C.R1(config)#interface FastEthernet 0/0R1(config-if)#ip ospf priority 1R1#clear ip ospf process

D.R3(config)#interface FastEthernet 0/1R3(config-if)#ip ospf priority 200R3#clear ip ospf process

200-301 Exam Question 97

What is the expected outcome when an EUI-64 address is generated?

A.The interface ID is configured as a random 64-bit value

B.The seventh bit of the original MAC address of the interface is inverted

C.The characters FE80 are inserted at the beginning of the MAC address of the interface

D.The MAC address of the interface is used as the interface ID without modification

200-301 Exam Question 98

Which MAC address is recognized as a VRRP virtual address?

A.0000.5E00.010a

B.0005.3711.0975

C.0000.0C07.AC99

D.0007.C070/AB01

200-301 Exam Question 99

Which device separates networks by security domains?

A.firewall

B.access point

C.intrusion protection system

D.wireless controller

200-301 Exam Question 100

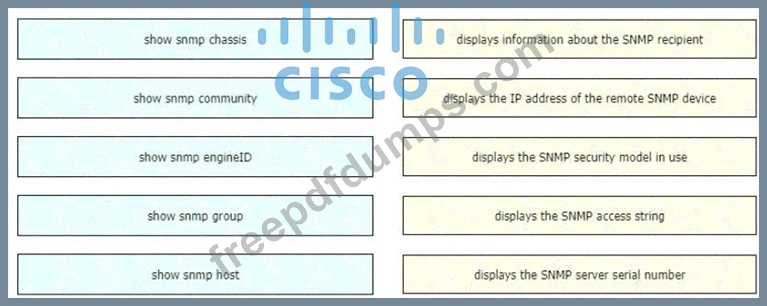

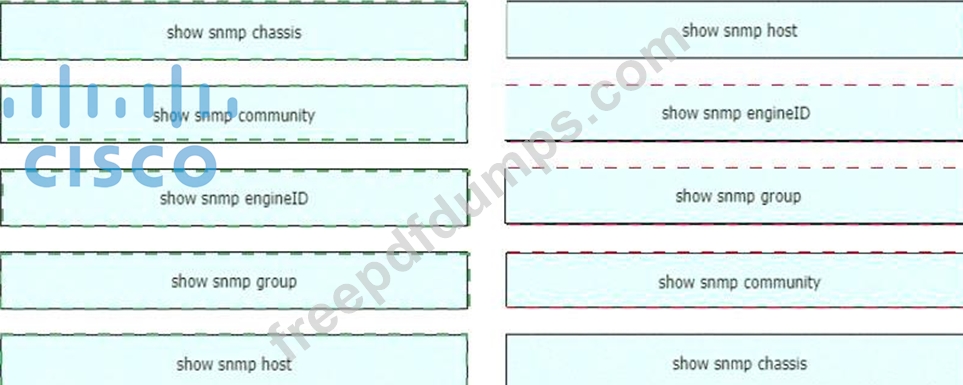

Drag and drop the SNMP manager and agent identifier commands from the left onto the functions on the right
