300-510 Exam Question 16

Refer to the exhibit.

After troubleshooting an OSPF adjacency issue, routers 1, 2, and 3 have formed OSPF neighbor relationships. Which statement about the configuration is true?

A.Router 2 receives a Type 5 LSAs from router 1 for its connected subnets

B.Router 2 uses router 1 as the next hop for 192.168.0.0/24

C.Router 2 uses router 3 as the next hop for 192.168.0.0/24

D.Router 2 receives a Type 7 LSAs from router 3 for its connected subnets

300-510 Exam Question 17

Refer to the exhibit.

Router 1 has established an SR-TE tunnel with router 2. Which statement describes this configuration?

A.Router 2 is the head-end tunnel and has explicitly set a path to router 1.

B.Router 1 has a list of labels used to explicitly lay out a path to router 2.

C.Router 1 is the head-end tunnel and has dynamically chosen a path to router 2.

D.Router 1 and router 2 have a bidirectional tunnel set up with dynamic path selection.

300-510 Exam Question 18

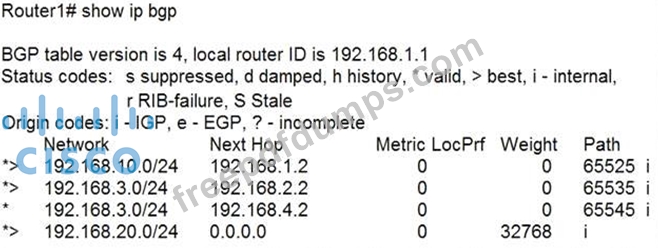

Refer to the exhibit.

Which attribute can router 1 alter so that only other iBGP peers prefer to use 192.168.4.2 as the next hop for route 192.168.3.0/24?

A.local preference

B.MED

C.weight

D.origin

300-510 Exam Question 19

Which output from the show isis interface command helps an engineer troubleshoot an IS-IS adjacency problem on a Cisco IOS-XR platform?

A.hello interval

B.metric

C.circuit type

D.priority

300-510 Exam Question 20

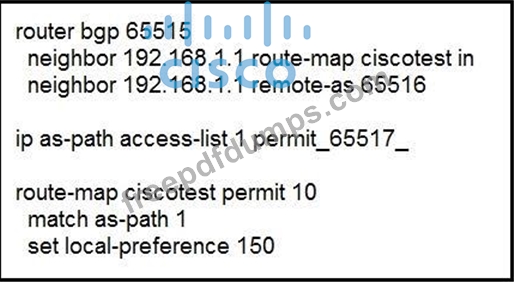

Refer to the exhibit. After troubleshooting BGP traffic steering issue, which action did the network operator take to achieve the correct effect of this configuration?

A.Routes that have passed through AS 65517 have the local preference set to 150.

B.Routes that have originated through AS 65517 have the local preference set to 150.

C.Routes that have passed through AS 65517 have the local preference set to 150 and the traffic is denied.

D.Routes directly attached to AS 65517 have the local preference set to 150.
