300-510 Exam Question 1

What is the role of segment routing mapping server?

A.It advertises a local SID mapping policy to all the mapping clients.

B.It works with IGP instances to calculate the prefix-SIDs in the absence of a mapping policy.

C.It selects multiple mapping entries to create overlapping active mapping policies.

D.It reads and translates remotely received SIDs from other mapping servers to create SID mapping entries.

300-510 Exam Question 2

An engineer is troubleshooting end-to-end customer traffic across an MPLS VPN service provider network.

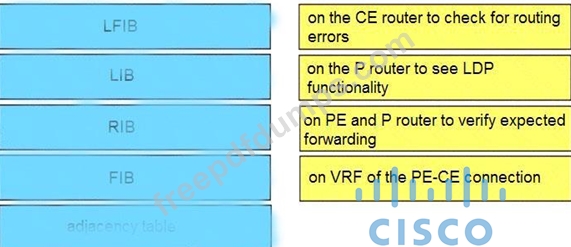

Which tasks should the engineer use to solve the routing issues? Drag and drop the table types from the left onto the most useful troubleshooting tasks/router types on the right. (Not all options are used.)

300-510 Exam Question 3

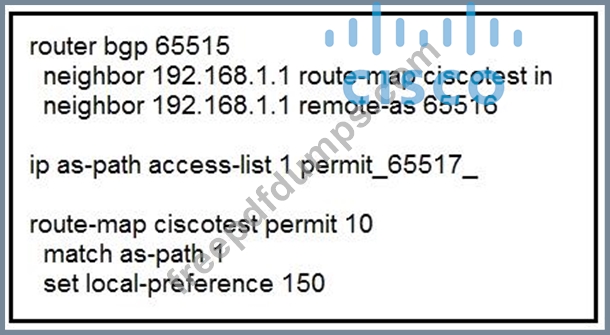

Refer to the exhibit.

After troubleshooting BGP traffic steering issue, which action did the network operator take to achieve the correct effect of this configuration?

A.Routes that have passed through AS 65517 have the local preference set to 150.

B.Routes that have originated through AS 65517 have the local preference set to 150.

C.Routes that have passed through AS 65517 have the local preference set to 150 and the traffic is denied.

D.Routes directly attached to AS 65517 have the local preference set to 150.

300-510 Exam Question 4

Refer to the exhibit. An engineer has successfully fixed BGP peering issue. R1 has an established eBGP peering with R2 and R3.
Which mechanism should the engineer apply in order to steer the traffic correctly?

A.The weight attribute can be applied on R2 to influence AS 65513 to use AS 65515 as the primary path.

B.The MED attribute can be applied on R2 to influence R1 to use it as the primary path.

C.The local preference attribute can be applied on R3 to influence AS 65513 to use AS 65515 as the secondary path.

D.The IGP metric can be manipulated on R1 to allow traffic to be load balanced between R2 and R3.

300-510 Exam Question 5

Refer to the exhibit. Which statement about this configuration is true?

A.Router 1 sends and receives multiple best paths from neighbor 192.168.1.1

B.Router 1 sends up to two paths to neighbor 192.168.1.1 for all routes

C.Router 1 receives only the best path from neighbor 192.168.1.1

D.Router 1 receives up to two paths from neighbor 192.168.1.1 for all routes in the same AS
