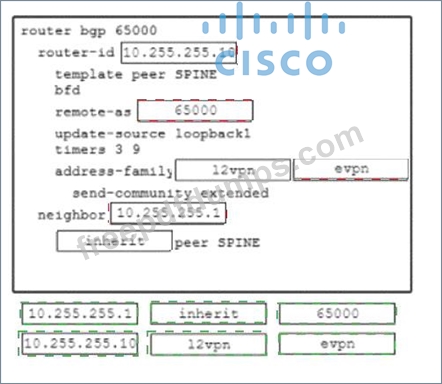

Refer to the exhibit An engineer must provision a VXLAN deployment The OSPF has already been configured as the underlay protocol All BGP configurations will be performed using the template method The deployment must meet these requirements
* The local update source for leaf switches must be loopback 1
* The router ID must be the local loopback IP address
* The external BGP connections must use a template name
Drag and drop the configuration snippets from the bottom to complete the configuration

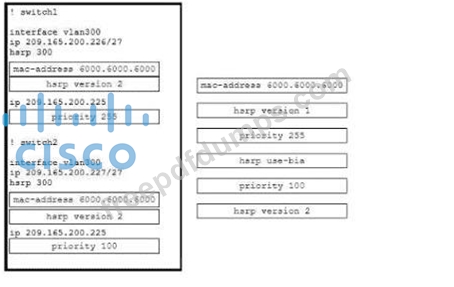

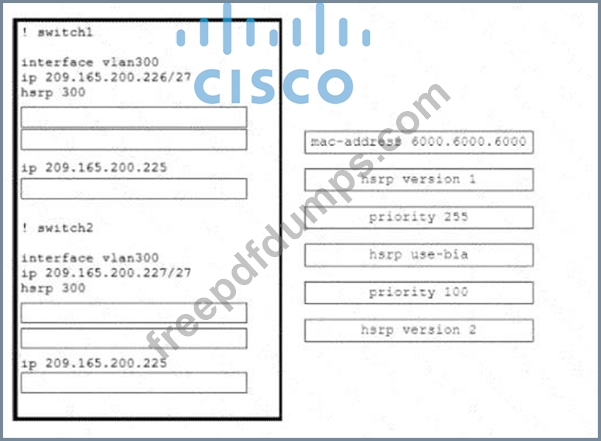

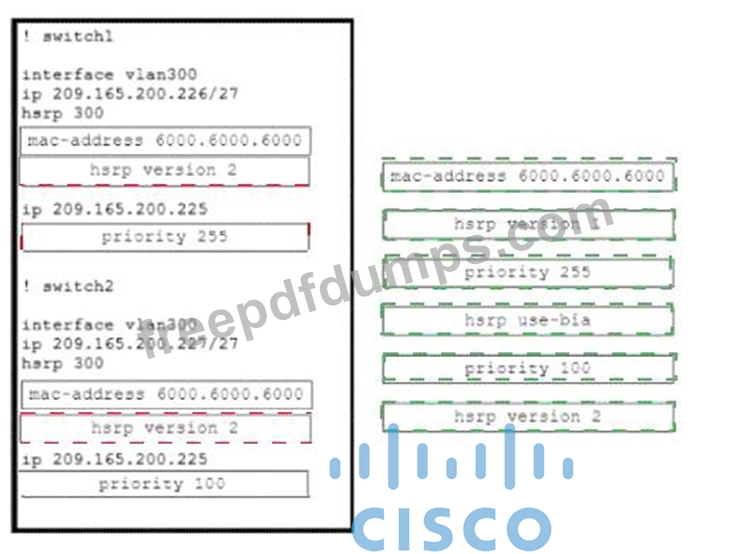

An engineer must configure HSRP protocol on two cisco nexus 9000 series switches running a virtual port channel in addition, the HSRP implementation must meet these requirements:

Drag and drop the commands from the the right to complete a configuration of the HSRP on the left. The commands are used more than once. Not all commands are used

Refer to the exhibit. A source is sending a multicast traffic stream to the receiver. How is the multicast traffic expected to flow through the network when it reaches a vPC peer?

An administrator needs to configure an automated policy to shut down a link when a given threshold is exceeded on MDS switch.
Which feature needs to be used?

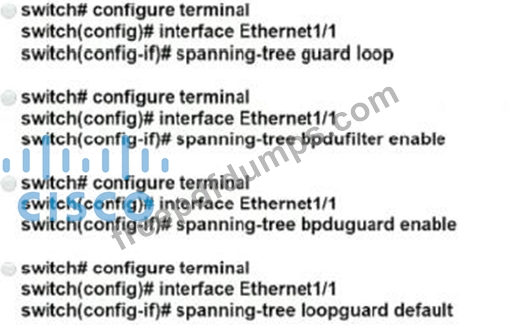

An engineer needs to Implement a solution that prevents loops from occurring accidentally by connecting a switch to interface Ethemet1/1. The port Is designated to be used tor host connectivity. What configuration should be implemented?
