Tesla Radio GmbH is going to build a new research lab network based on a set of switches that would connect to their existing enterprise network. They are considering a design that would guarantee loop-free behavior within the set of switches. The design would also allow the group of switches to seem like a single switch to the enterprise network, because it is owned by a separate administrative group. Which Spanning Tree Protocol should be used to support the design requirements?

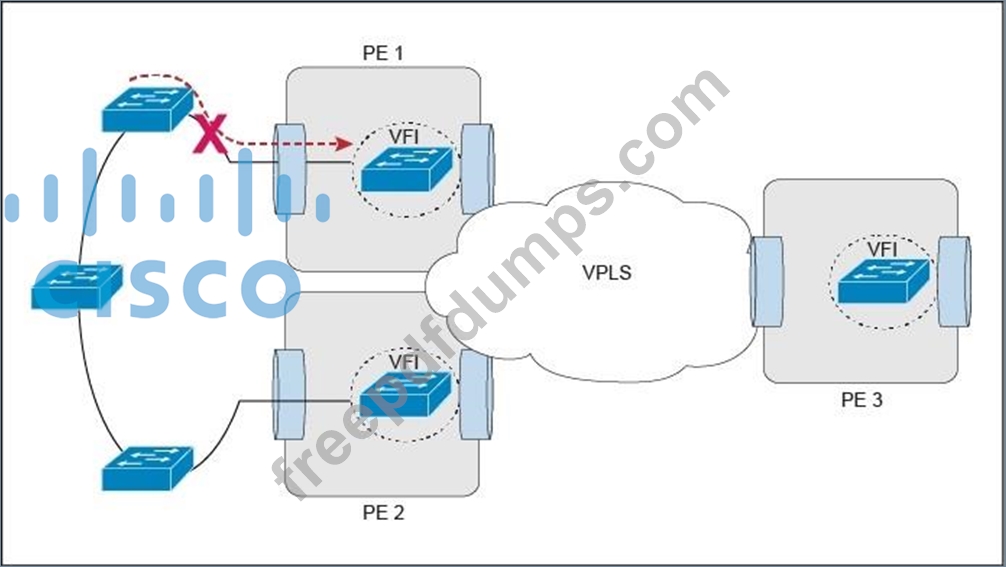

Refer to the exhibit.

This Layer 2 ring has 10 VLANs with 1000 MAC addresses in each VLAN. Which protocol or mechanism provides the shortest traffic outage if the link marked with "X" fails?

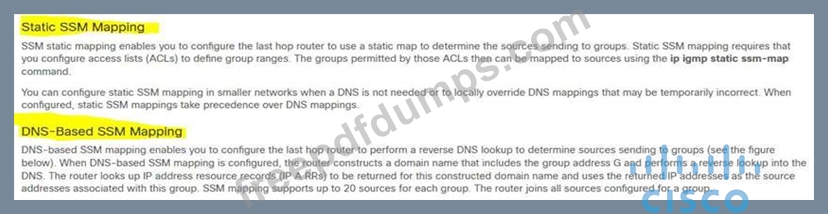

A company wants to use SSM as the multicast routing protocol inside its network. Some of its multicast applications do not support IGMPv3. In which two ways can the mapping be done when these applications send IGMPv2 join message? (Choose two.)

Which two techniques are used in a network design to slow down the distribution of topology information caused by a rapidly flapping link? (Choose two.)

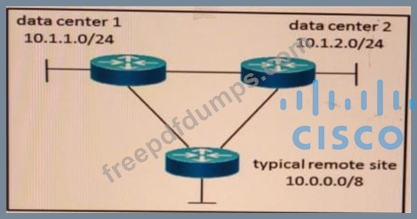

Refer to the exhibit. A customer currently has a large EIGRP based network with several remote sites attached.
All remote sites connect to the two Corporate data centers, depicted as 10.1.1.0 and 10.1.2.O. The customer has experienced several network wide failures where neighbours were stuck in active and had other network stabilitty issues due to some links flapping. Which two redesign options increase network stability and reduce the load on the remote site routers, while still maintaining optimal routing between remote sites and the two data centers? (Choose two)
