See the Explanation for detailed information on this simulation
Explanation:

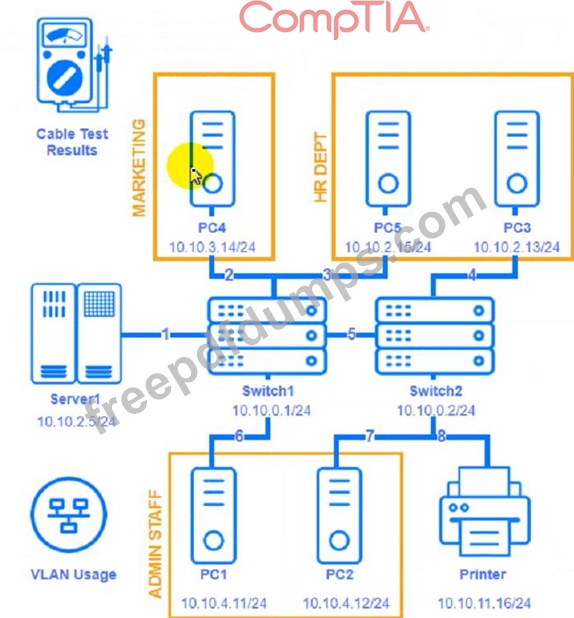

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding) To troubleshoot all the network components and review the cable test results, you can use the following steps:

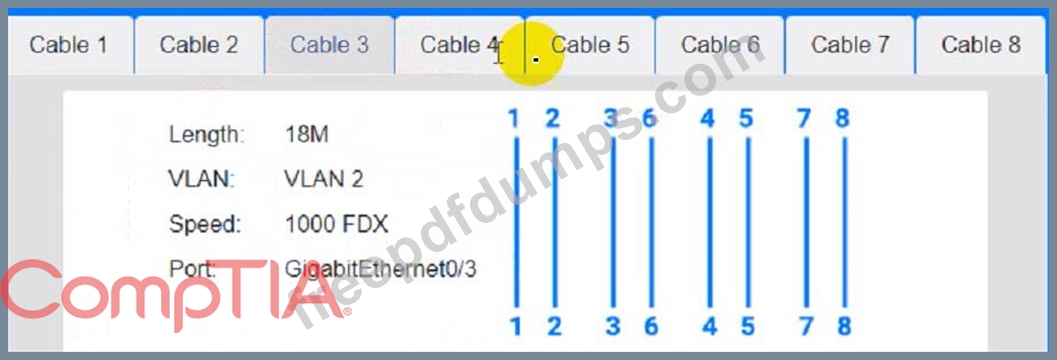

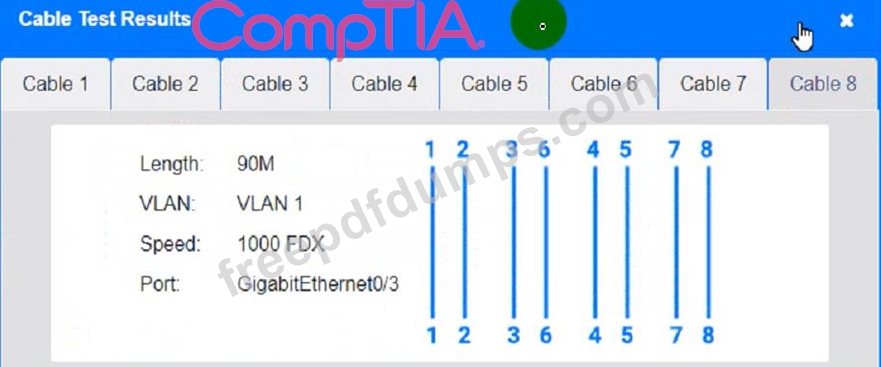

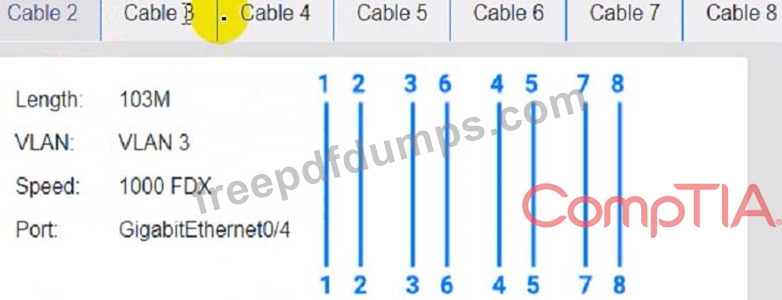

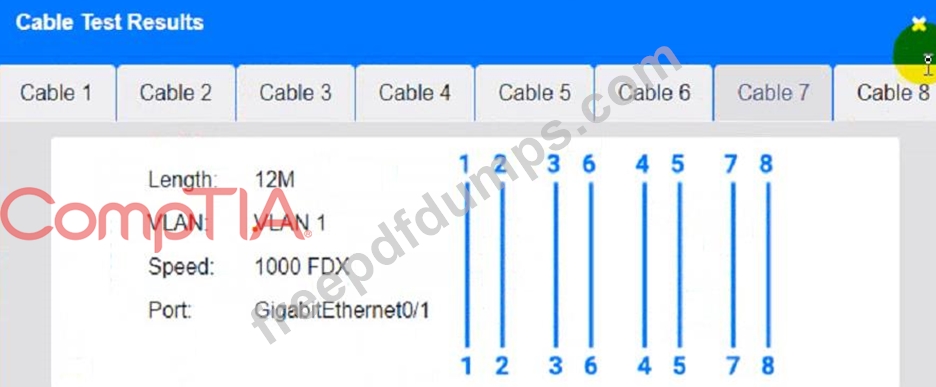

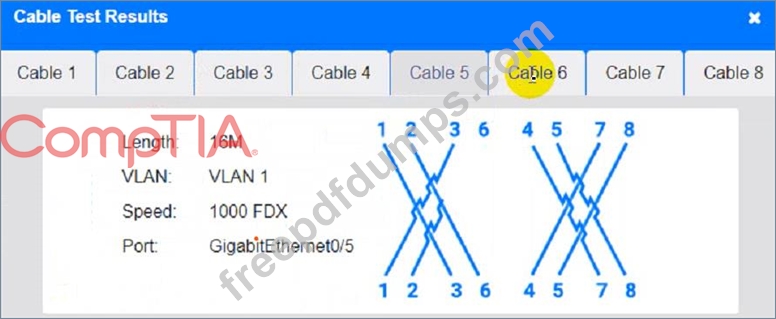

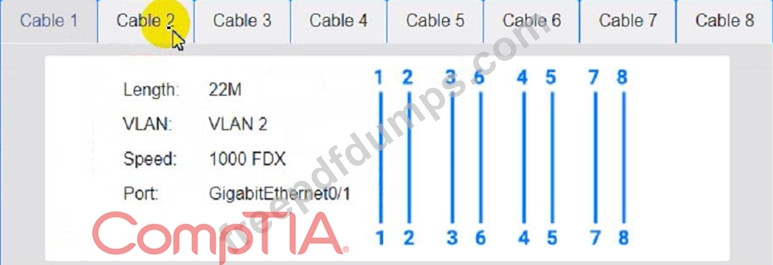

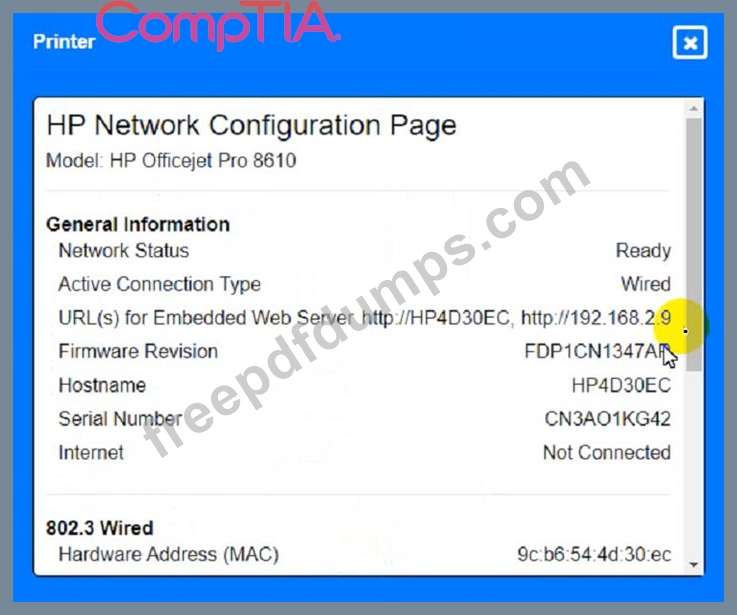

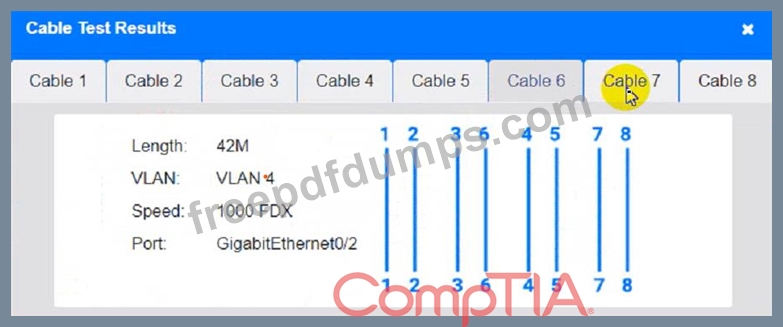

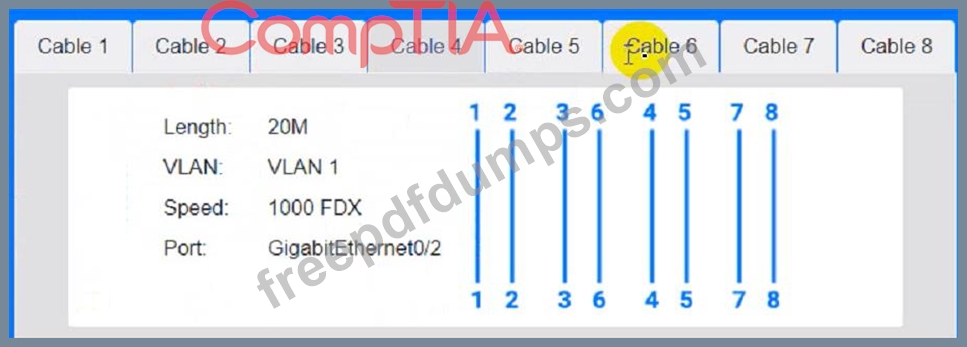

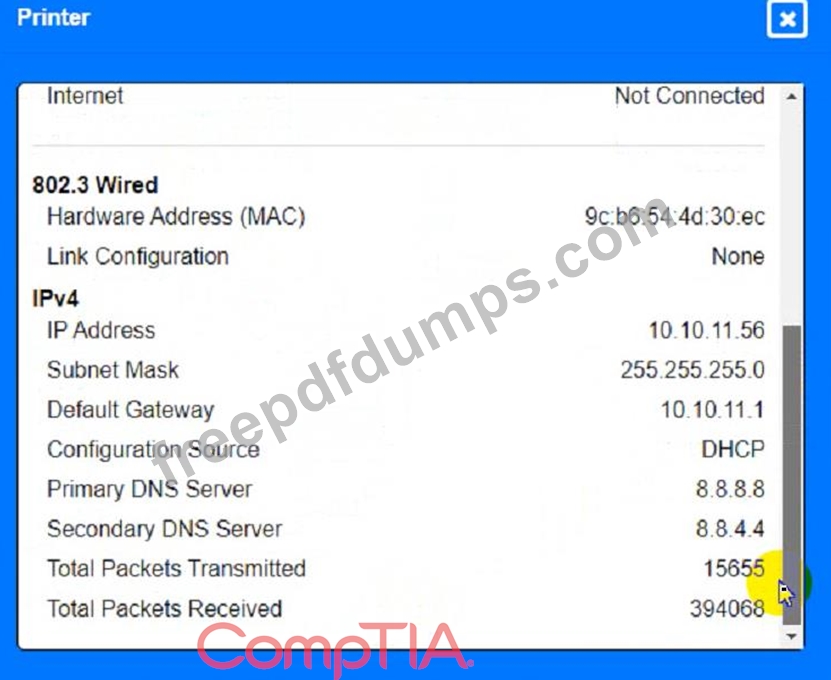

Click on each device and cable to open its information window.
Review the information and identify any problems or errors that may affect the network connectivity or performance.
Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

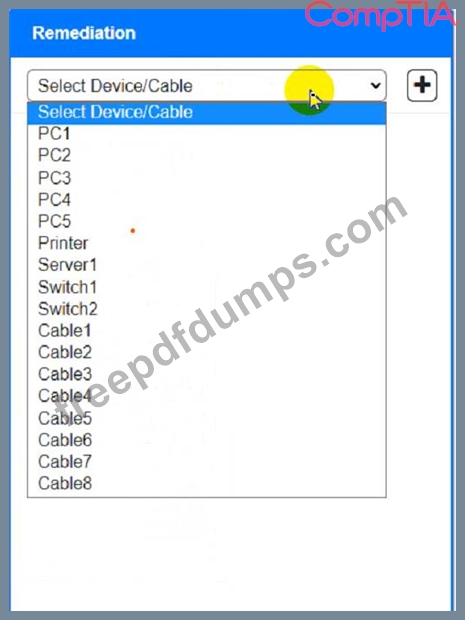

Fill in the remediation form using the drop-down menus provided.
Here is an example of how to fill in the remediation form for PC1:
The component with a problem is PC1.
The problem is Incorrect IP address.
The solution is Change the IP address to 192.168.1.10.
You can use the same steps to fill in the remediation form for other components.
To enter commands in each device, you can use the following steps:

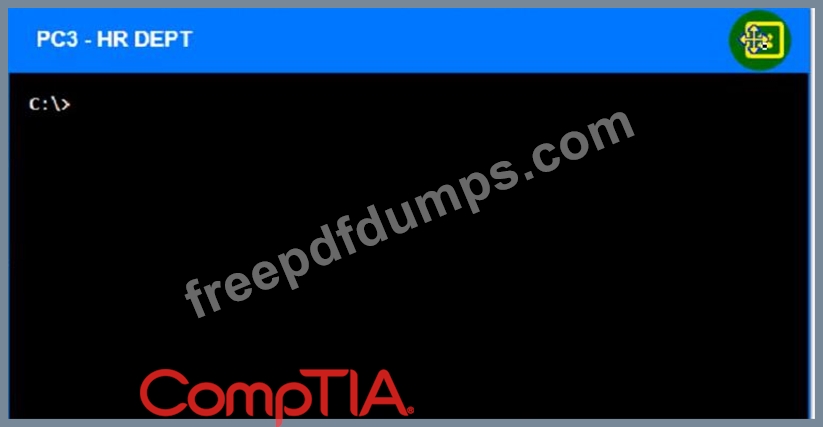

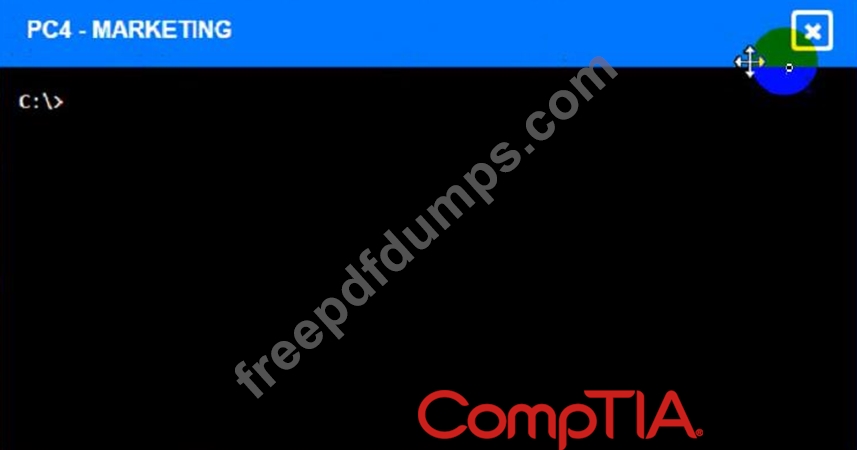

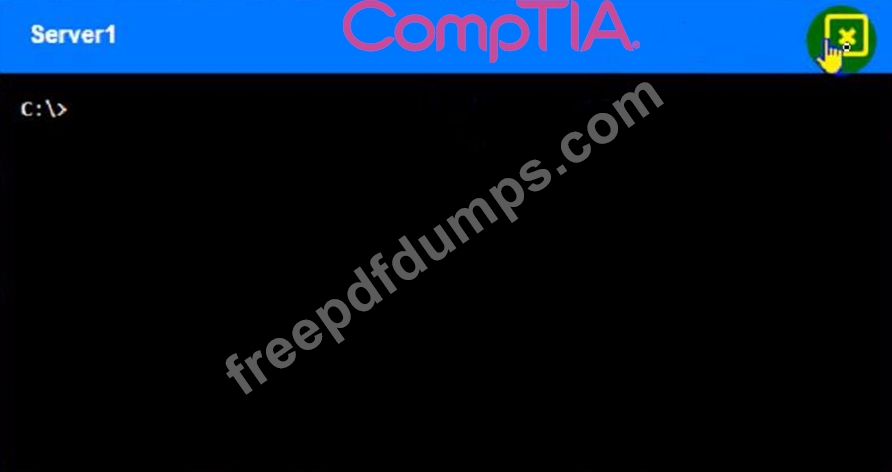

Click on the device to open its terminal window.
Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.
Enter the command ping <IP address> to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.
Enter the command tracert <IP address> to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.
Here is an example of how to enter commands in PC1:

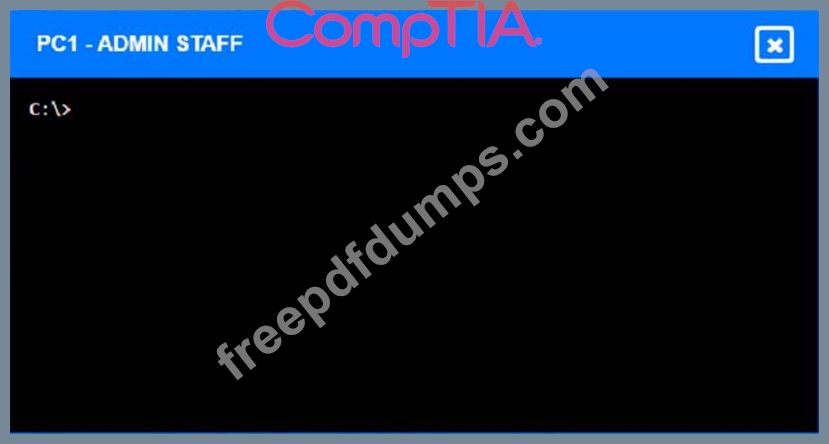

Click on PC1 to open its terminal window.
Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.
Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.
Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.
You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

See the solution below in Explanation.
Explanation:
To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:
* Identify the correct VLANs for each device and port.
* Enable necessary ports and disable unused ports.
* Configure fault-tolerant connections between the switches.

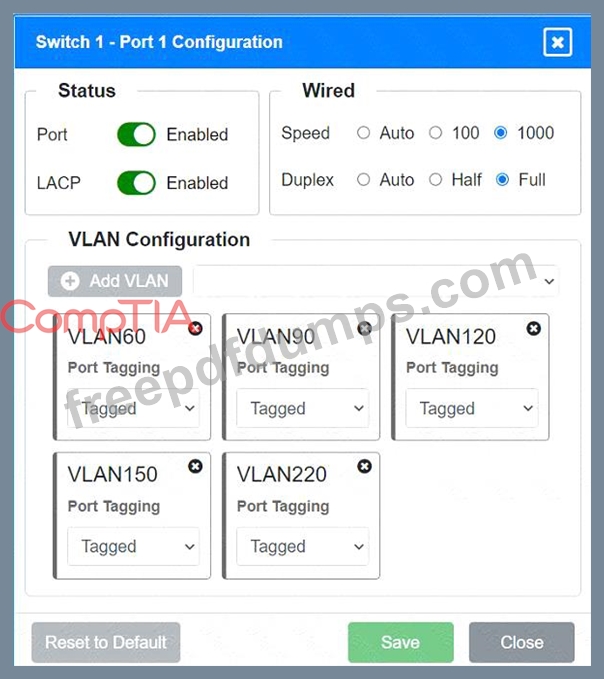

Configuration DetailsSwitch 1Port 1 Configuration (Uplink to Core Switch)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full

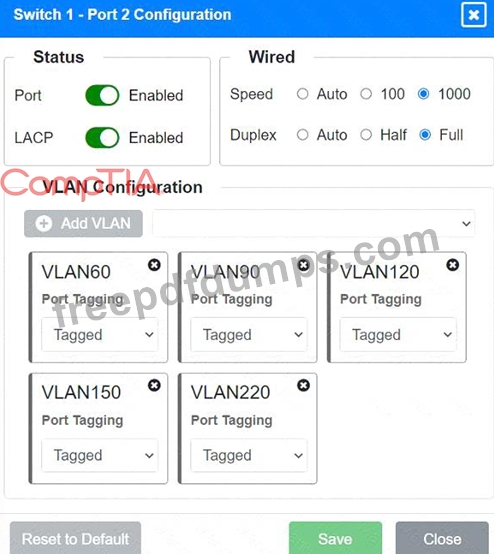

* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 2 Configuration (Uplink to Core Switch)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 3 Configuration (Server Connection)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN90 (Servers)
Port 4 Configuration (Server Connection)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN90 (Servers)
Port 5 Configuration (Wired Users and WLAN)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150
Port 6 Configuration (Wired Users and WLAN)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150
Port 7 Configuration (Voice and Wired Users)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

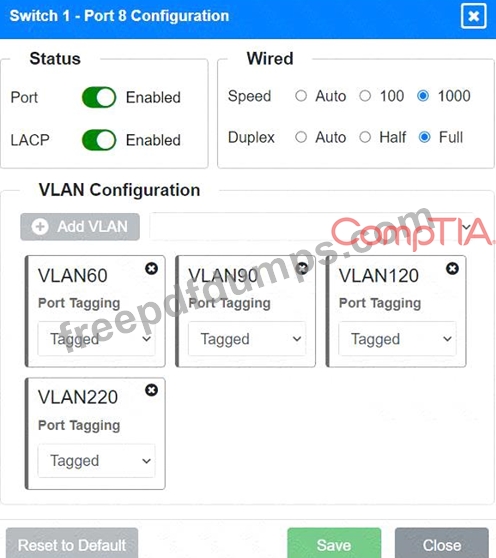

Port 8 Configuration (Voice, Printers, and Wired Users)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

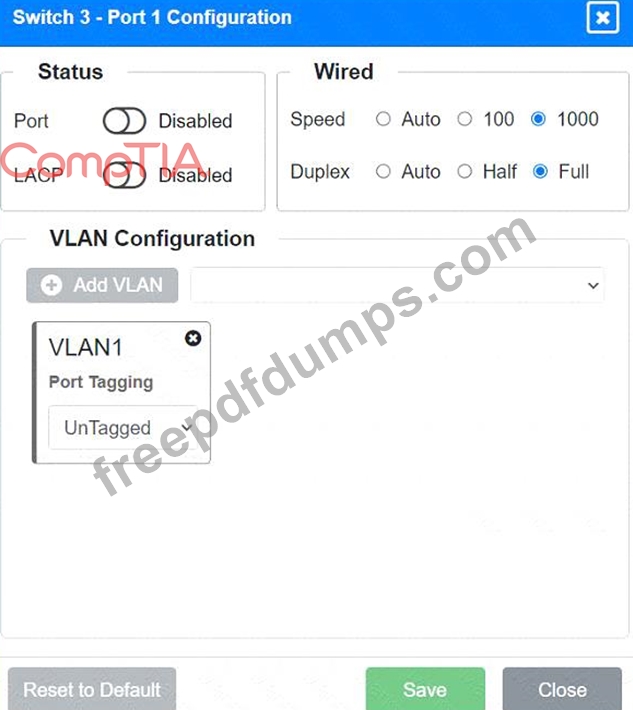

Switch 3Port 1 Configuration (Unused)
* Status: Disabled
* LACP: Disabled

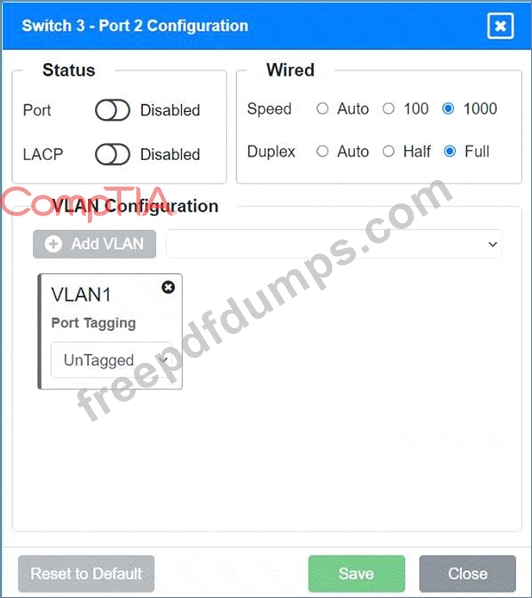

Port 2 Configuration (Unused)
* Status: Disabled
* LACP: Disabled
Port 3 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
Port 4 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
Port 5 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
Port 6 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
Port 7 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
* Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.
* Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.
* Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.
* Unused ports on Switch 3 are disabled.
* Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.
* Core Switch Ports should be configured as needed for uplinks to Switch 1.
* Ensure LACP is enabled for redundancy on trunk ports between switches.
Summary of ConfigurationsEnsure All Switches and Ports are Configured as per the Requirements:By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.

The tracert (Traceroute) command is used to determine the path packets take from the source to the destination. It helps in identifying routing issues by showing each hop the packets pass through, along with the time taken for each hop. This command can pinpoint where the connection is failing or experiencing delays, making it an essential tool for troubleshooting routing issues.References: CompTIA Network+ study materials and common network troubleshooting commands.

Multimode fiber optic cables involve the transmission of light signals that bounce off the core's cladding as they travel down the fiber. This characteristic differentiates it from single-mode fiber, where the light travels directly down the fiber without reflecting off the cladding.
Here are some detailed points about multimode fiber cables:
* Construction: Multimode fibers have a larger core diameter, typically 50 or 62.5 microns, compared to single-mode fibers, which have a core diameter of about 9 microns.
* Light Propagation: The larger core of multimode fiber allows multiple light modes to propagate.
These modes travel at different angles, leading to reflections off the core-cladding boundary.
* Distance and Bandwidth: Due to modal dispersion, where different light modes arrive at the receiver at different times, multimode fibers are suited for shorter distance applications compared to single- mode fibers. Typical distances are up to 550 meters for 10 Gbps Ethernet using OM4 multimode fiber.
* Applications: Multimode fibers are commonly used in LANs (Local Area Networks), data centers, and for shorter distance data transmission due to their cost-effectiveness and ease of installation.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide, which covers fiber optic technologies, including the differences between multimode and single-mode fibers.
* Cisco Networking Academy: Provides training materials and reference guides on the properties of different fiber optic cables.
* Fiber Optic Association (FOA): A professional society dedicated to fiber optics, offering extensive information and certification on fiber optic technologies.
Multimode fibers are specifically designed for short-range communication with higher data rates and are typically used in environments like data centers, where high bandwidth over shorter distances is crucial. The reflections off the cladding, inherent to multimode fiber, facilitate this high-capacity communication.

* Troubleshooting Methodology:
* Confirming the Root Cause: After testing and confirming the theory, the next logical step is to address the issue by implementing a solution.
* Implementation of the Solution:
* Resolve the Issue: Implement the identified solution to rectify the problem. This step involves making necessary changes to the network configuration, replacing faulty hardware, or applying software patches.
* Documentation: Document the solution and the steps taken to resolve the issue to provide a reference for future troubleshooting.
* Comparison with Other Steps:
* Determine Resolution Steps: This is part of the implementation process where specific actions are outlined, but the actual next step after testing is to implement those steps.
* Duplicate the Problem in a Lab: This step is typically done earlier in the troubleshooting process to understand the problem, not after confirming the root cause.
* Present the Theory for Approval: In some scenarios, presenting the theory might be necessary for major changes, but generally, once the root cause is confirmed, the solution should be implemented.
* Final Verification:
* After implementing the solution, it is important to verify that the issue is resolved and that normal operations are restored. This may involve monitoring the network and testing to ensure no further issues arise.
References:
* CompTIA Network+ study materials on troubleshooting methodologies and best practices.
