* Understanding End-of-Support:
* End-of-Support Status: When a vendor declares a device as end-of-support, it means the device will no longer receive updates, patches, or technical support. This poses a security risk as new vulnerabilities will not be addressed.
* Risks of Keeping an End-of-Support Device:
* Security Vulnerabilities: Without updates, the switch becomes susceptible to new security threats.
* Compliance Issues: Many regulatory frameworks require that critical infrastructure be maintained with supported and secure hardware.
* Best Next Step - Replacement:
* Decommission and Replace: The most secure approach is to replace the end-of-support switch with a new, supported model. This ensures the infrastructure remains secure and compliant with current standards.
* Planning and Execution: Plan for the replacement by evaluating the network's needs, selecting a suitable replacement switch, and scheduling downtime for the hardware swap.
* Comparison with Other Options:
* Apply the Latest Patches: While helpful, this does not address future vulnerabilities since no further patches will be provided.
* Ensure the Current Firmware Has No Issues: This is only a temporary measure and does not mitigate future risks.
* Isolate the Switch from the Network: Isolating the switch may disrupt network operations and is not a viable long-term solution.
References:
* CompTIA Network+ study materials on network maintenance and security best practices.

BNC connectors are commonly used for coaxial cables, including those connecting to external antennas in Wi- Fi, radio, and surveillance systems.
Breakdown of Options:
A). BNC - Correct answer. Used for coaxial cables in wireless and antenna connections.
B). ST - Used for fiber optic cables, not antennas.
C). LC - A fiber optic connector, not for antennas.
D). MPO - Used for multi-fiber optic cables, not RF antennas.
Reference:
CompTIA Network+ (N10-009) Official Study Guide - Domain 1.1: Compare and contrast physical network connectors.
IEEE 802.11: Wireless standards and antenna connectors

A toner and probe tool, also known as a tone generator and probe, is used to trace and identify individual cables within a bundle or to locate the termination points of cables in wiring closets and patch panels. It generates a tone that can be picked up by the probe, helping technicians quickly and accurately identify and label wall plates and wiring. This is the best tool for identifying proper wiring in the Intermediate Distribution Frame (IDF). References: CompTIA Network+ Exam Objectives and official study guides.

See the Explanation for detailed information on this simulation.
Explanation:

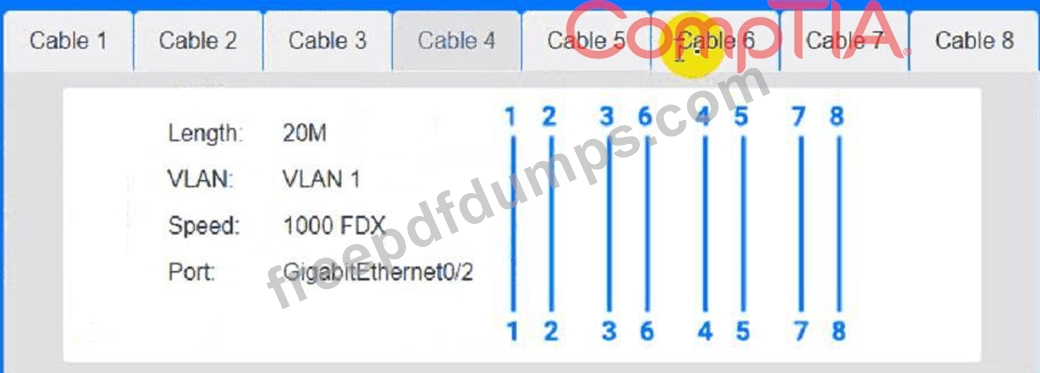

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding) To troubleshoot all the network components and review the cable test results, you can use the following steps:
Click on each device and cable to open its information window.
Review the information and identify any problems or errors that may affect the network connectivity or performance.
Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.
Fill in the remediation form using the drop-down menus provided.
Here is an example of how to fill in the remediation form for PC1:
The component with a problem is PC1.
The problem is Incorrect IP address.
The solution is Change the IP address to 192.168.1.10.
You can use the same steps to fill in the remediation form for other components.
To enter commands in each device, you can use the following steps:
Click on the device to open its terminal window.
Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.
Enter the command ping <IP address> to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.
Enter the command tracert <IP address> to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace <IP address> with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.
Here is an example of how to enter commands in PC1:
Click on PC1 to open its terminal window.
Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.
Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.
Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.
You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

The correct solution is NTP (Network Time Protocol). Accurate timestamps across servers, firewalls, and network devices are critical for correlating logs during incident response. NTP synchronizes device clocks to a trusted time source, ensuring consistency across the network.
A). Syslog centralizes logs but does not synchronize time.
B). SMTP is email transfer, unrelated to time.
D). SNMP monitors devices but does not correct time discrepancies.
By implementing NTP, analysts can ensure that logs from different devices are time-aligned, which is essential for reconstructing attack timelines and detecting anomalies.
References (CompTIA Network+ N10-009):
Domain: Network Operations - Time synchronization, NTP, log correlation.
