Bollards: Bollards are short, sturdy posts designed to prevent vehicles from driving into a particular area. Installing bollards in front of the building would effectively mitigate the risk of cars driving through the front entrance, providing physical barriers that ensure safety for the receptionist and others in the area.

The /etc/fstab file contains the information about the file systems that are mounted automatically at boot time or on demand. The entry nfsserver:/home /home nfs defaults 0 0 indicates that the
/home directory on the local server is mounted from the /home directory on a remote server called nfsserver using the NFS protocol. However, the df -h /home command shows that the /home directory is actually mounted from a local partition /dev/sda2, which may not contain the user's files. This means that the NFS mount failed or was overridden by another mount. To resolve the issue, the technician should attempt to unmount the local partition using umount nfsserver:/home, which will detach the /home directory from /dev/sda2. Then, the technician should try to mount the NFS share again using mount /home, which will attach the /home directory to nfsserver:/home according to the /etc/fstab entry. Creating a new directory (A) or removing an existing one would not help, as they would not affect the mount point. Mounting /home (D) without unmounting it first would not work, as it would result in an error that the mount point is busy.

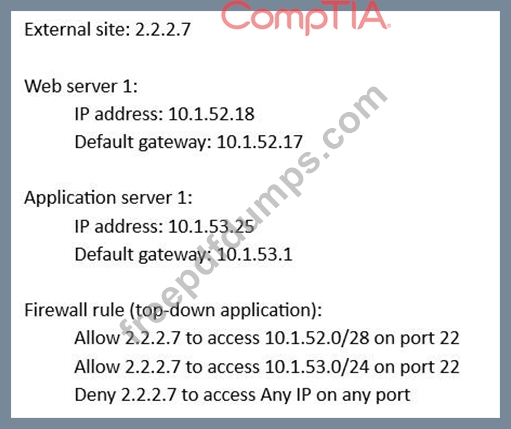

I've opened the image to analyze its contents. After reviewing the information, I can see that the issue seems related to the configuration, particularly around the firewall and network settings for Web Server 1.
The key observation here is the firewall rule, which allows access to the 10.1.52.0/28 network (which Web Server 1 is part of) on port 22. Since the support team can access other servers but not Web Server 1, the issue likely resides in either the network configuration of Web Server 1 or its default gateway.

A virtual switch is a software-based network device that connects the virtual machines (VMs) in a virtual environment and allows them to communicate with each other and with the physical network. A virtual switch can also create and manage virtual LANs (VLANs), which are logical segments of a network that separate the traffic of different VMs or groups of VMs. A VLAN needs a DHCP server to assign IP addresses to the VMs that belong to it. A virtual switch can act as a DHCP relay agent and forward the DHCP requests from the VMs to the DHCP server on the physical network. This way, the VMs can receive correct IP addresses for their VLANs.
