GB0-381-ENU Exam Question 31
The administrator wants to configure the OSPF route priority value to be 100 on the MSR router. Which of the following commands is correct?
GB0-381-ENU Exam Question 32
Regarding the Tpe4 LSA in the OSPF protocol, the correct statement is ______
GB0-381-ENU Exam Question 33

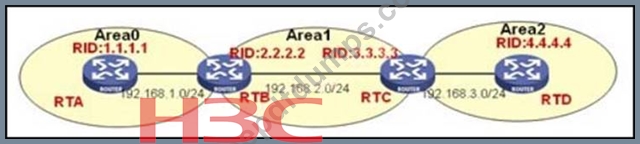

In the topology shown in the figure, the following configurations are performed on RTA, RTB, RTC and RTD respectively:
RTA] ospf 1 router-id 1.1.1.1
RTA-ospf-1] area 0
RTA-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
RTA-ospf-1-area-0.0.0.0] network 1.1.1.1 0.0.0.0
RTB] ospf 1 router-id 2.2.2.2
RTB-ospf-1] area 0
RTB-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
RTB-ospf-1-area-0.0.0.0] network 2.2.2.2 0.0.0.0
RTB-ospf-1] area 1
RTB-ospf-1-area-0.0.0.1] network 192.168.2.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1] vlink-peer 3.3.3.3
RTC] ospf 1 router-id 3.3.3.3
RTC] ospf 1] import direct
RTC-ospf-1] area 1
RTC-ospf-1-area-0.0.0.1] network 192.168.2.0 0.0.0.255
RTC-ospf-1-area-0.0.0.1] vlink-peer 2.2.2.2
RTC-ospf-1] area 2
RTC-ospf-1-area-0.0.0.2] network 192.168.3.0 0.0.0.255
RTD] ospf 1 router-id 4.4.4.4
RTD-ospf-1] area 2
RTD-ospf-1-area-0.0.0.2] network 192.168.3.0 0.0.0.255
RTD-ospf-1-area-0.0.0.2] network 4.4.4.4 0.0.0.0
Then the router type in the RTC in the OSPF area is _______

RTA] ospf 1 router-id 1.1.1.1
RTA-ospf-1] area 0
RTA-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
RTA-ospf-1-area-0.0.0.0] network 1.1.1.1 0.0.0.0
RTB] ospf 1 router-id 2.2.2.2
RTB-ospf-1] area 0
RTB-ospf-1-area-0.0.0.0] network 192.168.1.0 0.0.0.255
RTB-ospf-1-area-0.0.0.0] network 2.2.2.2 0.0.0.0
RTB-ospf-1] area 1
RTB-ospf-1-area-0.0.0.1] network 192.168.2.0 0.0.0.255
RTB-ospf-1-area-0.0.0.1] vlink-peer 3.3.3.3
RTC] ospf 1 router-id 3.3.3.3
RTC] ospf 1] import direct
RTC-ospf-1] area 1
RTC-ospf-1-area-0.0.0.1] network 192.168.2.0 0.0.0.255
RTC-ospf-1-area-0.0.0.1] vlink-peer 2.2.2.2
RTC-ospf-1] area 2
RTC-ospf-1-area-0.0.0.2] network 192.168.3.0 0.0.0.255
RTD] ospf 1 router-id 4.4.4.4
RTD-ospf-1] area 2
RTD-ospf-1-area-0.0.0.2] network 192.168.3.0 0.0.0.255
RTD-ospf-1-area-0.0.0.2] network 4.4.4.4 0.0.0.0
Then the router type in the RTC in the OSPF area is _______

GB0-381-ENU Exam Question 34
Two routers cannot establish OSPF neighbor relationship. The following possible reasons are ________.
GB0-381-ENU Exam Question 35
Among the following types of LSA, there must be ______ generated by ABR.
