The command that is used to set a default route to 10.4.5.1 on an Aruba CX switch when in-band management using an SVI is being used is ip route 0.0 0 0/0 10.4.5.1 . This command specifies the destination network address (0.0 0 0) and prefix length (/0) and the next-hopaddress (10.4.5.1) for reaching any network that is not directly connected to the switch. The default route applies to the default VRF Virtual Routing and Forwarding. VRF is a technology that allows multiple instances of a routing table to co-exist within the same router at the same time. VRFs are typically used to segment network traffic for security, privacy, or administrative purposes. , which is used for in-band management traffic that goes through an SVI Switch Virtual Interface. SVI is a virtual interface on a switch that allows the switch to route packets between different VLANs on the same switch or different switches that are connected by a trunk link. An SVI is associated with a VLAN and has an IP address and subnet mask assigned to it12. References: 1 https://www.
arubanetworks.com/techdocs/AOS-CX/10_08/HTML/ip_route_4100i-6000-6100-6200/Content
/Chp_StatRoute/def-rou.htm 2 https://www.arubanetworks.com/techdocs/AOS-CX/10_08/HTML
/ip_route_4100i-6000-6100-6200/Content/Chp_VRF/vrf-overview.htm

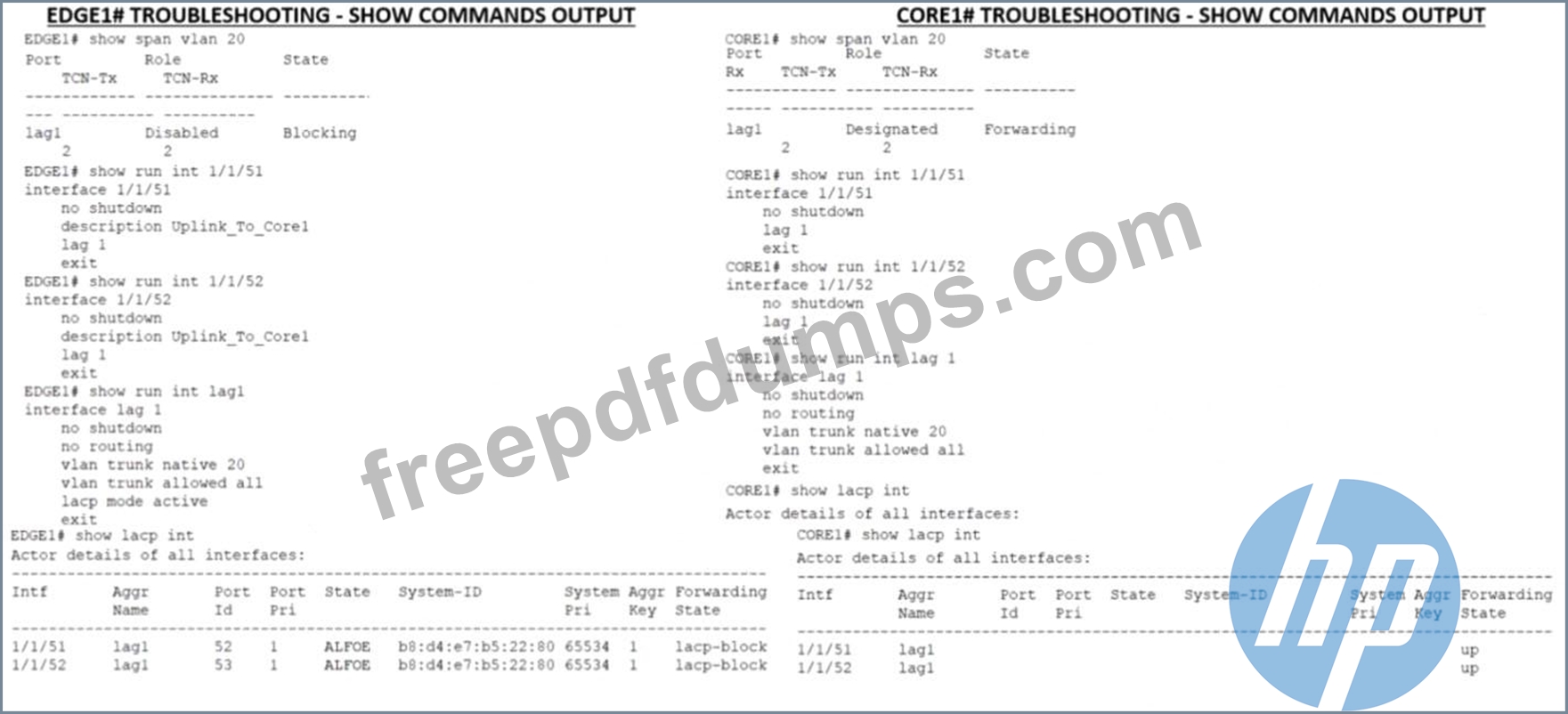

LACP is a protocol that allows multiple physical links to be aggregated into a single logical link for increased bandwidth and redundancy. LACP must be configured on both ends of the link for it to work properly. In this case, EDGE1 has LACP configured on its uplink port-channel 1, but CORE1 does not have LACP configured on its corresponding port-channel 1. This causes a mismatch and prevents the link from coming up.References:
https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview
/lacp.htm

In the access tracker of ClearPass, after a customer successfully connects to a guest network through a captive portal, the OUTPUT tab should show a role indicating that the user is authenticated, such as "Guest authenticated." This role confirms that the user has passed the authentication process and has been granted access.

Wireless client roaming decisions are made by the client device based on its own criteria, such as signal strength, noise level, data rate, etc. The network can influence the client's roaming decision by providing information such as neighbor reports, load balancing, band steering, etc., but the final decision is up to the client.References:https://www.arubanetworks.com/techdocs/Instant_86_WebHelp/Content/instant-ug/wlan- roaming/client-roaming.htm Wireless client roaming decisions are primarily made by the client device itself. The client device monitors the signal strength and quality of the current connection and decides to roam to a different Access Point (AP) when the current signal deteriorates below a certain threshold or a better option is available. While APs and controllers can provide information and support for roaming decisions through protocols like 802.11k and
802.11v, the ultimate decision to roam is made by the client device based on its algorithms and thresholds.
