Online Access Free Huawei.H12-261-ENU.v2022-02-15.q168 Practice Test (Page 2)

H12-261-ENU Exam Question 1

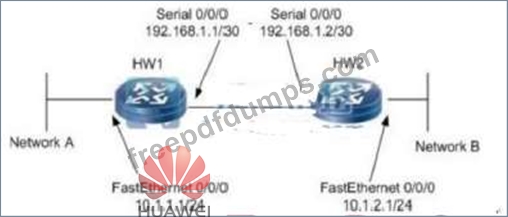

Router HW1 and router HW2 are connected to network A and network B respectively. As shown below, if you want to establish an IPsec VPN between router HW1 and router HW2.
Which ACL does the router HW1 need to configure to enable LAN-to-LAN traffic to pass through the encrypted VPN tunnel?

A.rule permit ip source 10.1.1.0 0.0.0.255 destination 192.168.1.2 0

B.rule permit ip source 192.168.1.10 destination 10.1.2.0 0.0.0.255

C.rule permit ip source 192.168.1.10 destination 192.168.1.2 0

D.rule permit ip source 10.1.2.0 0.0.0.255 destination 10.1.1.0 0.0.0.255

E.rule permit ip source 10.1.1.0 0.0.0.255 destination 10.1.2.0 0.0.0.255

H12-261-ENU Exam Question 2

Which of the following statements is true about the MUX VLAN feature of Huawei switches?

A.The Principal Port can communicate with all ports in the MUX VLAN.

B.Each Separate VLAN can be bound to multiple Principal VLANs.

C.The MUX VLAN and the Super VLAN features can be used together on the same VLAN.

D.The Mux VLAN is classified into Principal VLAN and Subordinate VLAN. The Subordinate VLAN is classified into Separate VLAN and Isolate VLAN.

H12-261-ENU Exam Question 3

The following statement about cross-domain MPLS VPN, which is wrong? (Multiple Choice)

A.When the public network label only use LDP, for the cross-domain vp-Option-c scheme 2, three-layer labels are required for packet forwarding.

B.For the cross-domain vPN-OptionB mode, two ASBR are interconnected by multiple interfaces (including sub-interfaces). Each interface is associated with one VPN. Each ASBR-PE uses the peer as the CE.

C.For the cross-domain vPn-OptionA mode, the route between the two ASBR is a common IPv4 route.

D.For the cross-domain vPN-Option B mode, an MP-eBGP neighbor relationship needs to be established between the two ASBR.

H12-261-ENU Exam Question 4

OSPFv3 and ISIS are running on the router at the same time. You need to import OSPFv3 routes to ISIS. Which of the following configurations is correct: (Multiple choice)

A.[Huawei] isis 1 [Huavvei-isis-1] network-entity 47.0001.0000.0000.0002.00 [Huawei-isis-1] import-route ospfv3 1 [Huawei-isis-1] quit [Huawei] ospfv3 1 [Huawei-ospfv3-1] router-id 2.2.2.2

B.[Huawei] isis 1 [Huavvei-isis-1] network-entity 47.0001.0000.0000.0002.00 [Huawei-isis-1] ipv6 enable topology standard [Huawei-isis-1] ipv6 import-route ospfv3 1 level-1 [Huawei-isis-1] quit [Huawei] ospfv3 1 [Huaweiospfv3-1] router-id 2.2.2.2

C.[Huawei] isis 1 [Huawei-isis-1]is-level level-1 [Huavvei-isis-1] network-entity 47.0001.0000.0000.0002.00 [Huawei-isis-1] ipv6 enable topology standard [Huawei-isis-1] ipv6 import-route ospfv3 1 [Huawei-isis-1] quit [Huawei] ospfv3 1 [Huawei-ospfv3-1] router-id 2.2.2.2

D.[Huawei] isis 1 [Huawei-isis-1] is-level level-1 [Huavvei-isis-1] network-entity 47.0001.0000.0000.0002.00 [Huawei-isis-1] ipv6 enable topology standard [Huawei-isis-1] ipv6 import-route ospfv3 1 level-1 [Huawei-isis-1] quit [Huawei] ospfv3 1 [Huaweiospfv3-1] router-id 2.2.2.2

E.[Huawei] isis 1 [Huawei-isis-1]is-level level-1 [Huavvei-isis-1] network-entity 47.0001.0000.0000.0002.00 [Huawei-isis-1] import-route ospfv3 1 level-1 [Huawei-isis-1] quit [Huawei] ospfv3 1 [Huawei ospfv3-1] router-id 2.2.2.2

H12-261-ENU Exam Question 5

After the BGP connection is successful, then down, what are the reasons for the impossible?

A.The mandatory attribute in the routing update message is lost.

B.Open packet negotiation failed.

C.After the BGP connection is established, the keepalive packet is not received within the negotiated holdtime.

D.Received incorrect BGP packets.
