Online Access Free Huawei.H12-261_V3.0-ENU.v2022-06-08.q138 Practice Test (Page 17)

H12-261_V3.0-ENU Exam Question 76

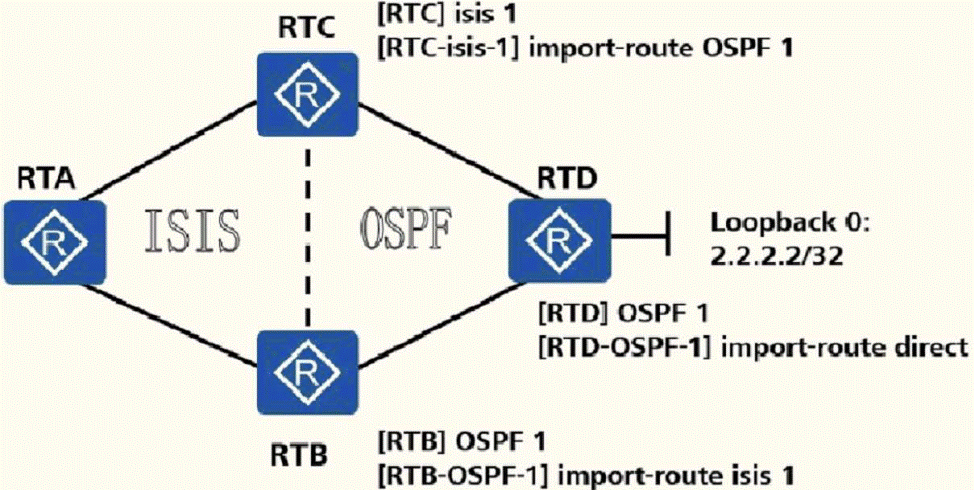

ISIS and OSPF are running on a network at the same time. The topology is shown in the figure. The two border routers: RTB and RTC, are respectively configured to import routes, and the devices are connected by one gigabit port, 2.2.2.2/32 network segment is imported into OSPF by import-route-direct on RTD. Assuming that all other configurations are dead and the default configuration, which about the description of this network is wrong?

A.RTB learns the route next hop for the 2.2.2.2/32 network segment is RTA.

B.Adjusting the ISIS priority on RTB to 160 can avoid suboptimal routing problems in the network.

C.The following configuration can filter out the routes from the 2.2.2.2/32 network segment of RTD when RTC imports OSPF routes. [RTC-acl-basic-2001]rule 5 deny source 2.0.0.0 0.255.255.255 [RTC-ac1-basic-2001]rule 10 permit RTC-isis-1]filter-policy 2001 import

D.Use the following configuration on RTC to filter out only the routes in the 2.2.2.2/32 network segment when importing routes, [RTC]ip ip-prefix 10 index 1 deny 2.0.0.0 8 less-equal 32 [RTC-isis -1]filter-policy ip-prefix 10 import

H12-261_V3.0-ENU Exam Question 77

What is the role of RT in MPLS VPN? (Multiple Choice)

A.Allow the peer CE to decide which VPNv4 routes to import into the specific VRF.

B.Allow the peer PE to decide which VPNv4 routes to import into the specific VRF.

C.Allow the peer CE to decide which VPNv4 routes will not be imported into the specific VRF.

D.Allow the peer PE to decide which VPNv4 routes will not be imported into the specific VRF.

H12-261_V3.0-ENU Exam Question 78

The Type 5 LSA in OSPF are used to pass external routes. Which of the following statements about the Type 5 LSA are wrong?

A.The router in the same area as the ASBR can calculate the external route through the intra-area LSA and the Type 5 LSA.

B.The FA address is included in the Type 5 LSA, and the FA address is 0.0.0.0, but has no practical effect as a reservation.

C.Type 5 LSAs are advertised by the ASBR and flooded in the OSPF network in the non-Stub/NSSA area.

D.Configure the corresponding policies on the ABR and ASBR to filter the Type 5 LSA.

H12-261_V3.0-ENU Exam Question 79

Command ip ip-prefix ip-prefix-name [index indexnumber{permit|deny}ipv4-address mask-length if a prefix list of less-equst has been specified, but greater-equal is not specified, then what is the scope of the prefix?

A.[ess-equal-value , 32]

B.[0 , less-equal-value]

C.No limit

D.[mask-lenath , less-equal-value]

H12-261_V3.0-ENU Exam Question 80

Which of the following statement about the LSA of OSPFv3 3 is correct? (Multiple choice)

A.The Link State id of the Inter-Area Prefix-LSA contains the prefix information.

B.Inter-Area-Prefix LSA also contains Link-Local information

C.When the Intra-Area Prefix LSA has the Referenced Link State Type-2, the Referenced Link State id contains the interface id of the DR.

D.Router-LSA and Network-LSA do not contain routing information.
