H12-261_V3.0-ENU Exam Question 106

Which of the following statements about stack split is wrong?

A.If the main and standby switches are in two stacking systems after the stack is split, the stack system where the original main switch is located updates the topology, re-designates the standby switch, the original standby switch is promoted to the main in the new stacking system, and the new standby switch is elected at the same time

B.If the master and backup switches are still in the same stack system after the stack is split, the slave switches separated from the original master and backup switches will re-elect the master and backup switches due to the timeout of protocol packets.

C.After the stack is split, the MAC addresses of the two stacking systems will change immediately

D.After splitting, multiple stacking systems will have the same IP address and MAC address. In order to avoid network failures, the stacking will perform MAD detection. The party that fails the MAD detection competition will shut down all physical devices except the reserved side port

H12-261_V3.0-ENU Exam Question 107

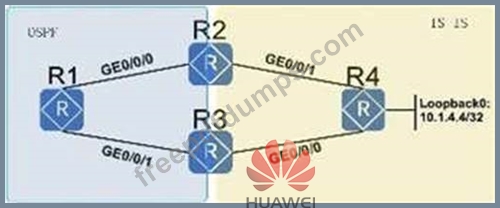

As shown in the figure, an engineer uses 4 routers to conduct branch network interoperability tests. Among them, R1, R2, and R3 in branch 1 deploy OSPF to achieve network interoperability, and R2, R3, and R4 in branch 2 deploy IS-IS to achieve network interoperability.

Now the engineer wants to implement R1 to access the loopback address of R4. Which of the following operations can meet this requirement?

A.Advertise the default route only in the OSPF process of R2

B.Advertise the default route only in the IS-IS process of R2

C.In the OSPF process of R2 and the IS-IS process, respectively advertise the default route

D.No configuration is required

H12-261_V3.0-ENU Exam Question 108

If there is a run 802.1D spanning tree protocol Local Area Network. Which of the following parameters does non-root switch not receive from the root switch?

A.Forward delay

B.Hold time

C.Hello time

D.MaxAge

E.Root cost

H12-261_V3.0-ENU Exam Question 109

In the ISIS broadcast network database synchronization process, the following statement which is correct?

A.R2 acts as DIS will not receive PSNP requests for other routes.

B.R2 acts as DIS and periodically sends CSNP.

C.R1 and R3 maintain database consistency by periodically sending PSNP requests.

D.R2 acts as DIS, and the Hello time is three times than the ordinary router.

H12-261_V3.0-ENU Exam Question 110

Regarding the multicast ASM model and the SSM model, which of the following statements are correct? (Multiple choice)

A.In the ASM model, the receiver cannot know the location of the multicast source in advance

B.SSM directly establishes a multicast forwarding tree between the recipient and the multicast source

C.In the SSM model, the receiver already knows the specific location of the multicast source in advance through other means

D.SSM and ASM use the same multicast address range
