Online Access Free Huawei.H12-261_V3.0-ENU.v2022-06-08.q138 Practice Test (Page 8)

H12-261_V3.0-ENU Exam Question 31

Which of the following description about multi-instance CE features is wrong?

A.Configure MCE to enable one CE to connect to multiple VPNs at the same time, which can achieve complete isolation of services between different VPN users and reduce the investment cost of network equipment.

B.Since the MCE device is already bound to the VPN, there is no need to bind the VPN on the PE connected to the MCE device.

C.The implementation principle of MCE is to create respective routing and forwarding tables for different VPNs on the MCE equipment and bind them to the corresponding interfaces.

D.The interface of the MCE device root media receiving the routing information base can determine the technical source of the routing information base and maintain it in the routing and forwarding table of the corresponding VP

H12-261_V3.0-ENU Exam Question 32

Two routers connected through a firewall cannot establish a BGP neighbor relationship. What is the cause?

A.The firewall did not release the UDP port number 179

B.EBGP Multi-hop is not configured

C.BGP neighbors must form a 2-layer adjacency

D.The firewall did not let go of the IP protocol number 89

H12-261_V3.0-ENU Exam Question 33

Regarding BGP MED, which of the following descriptions are correct? (Multiple questions)

A.In BGP routing rules, the priority of MED is lower than AS Path, Praferred-Value, Local-Preference and Origin

B.The default value of BGP route MED is 0

C.By default, BGP routing rules can compare the MED of routes from different autonomous systems

D.By default, if there is no MED value in the route attribute, it will be treated as 0. If the bestroute med-none-as-maximum command is configured, the MED will be processed as the maximum value of 4294967295

H12-261_V3.0-ENU Exam Question 34

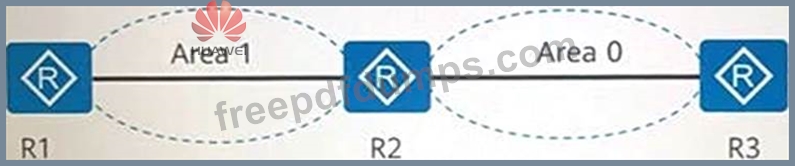

As shown in the figure, all routers run OSPF. Which of the following statements is correct?

A.R2 forwards the Router LSA generated by R1 to R3

B.R2 generates Router LSA in both area 1 and area

C.R2 only generates Router LSA in area 0

D.R2 forwards the Router LSA generated by R3 to R1

H12-261_V3.0-ENU Exam Question 35

If there are multiple receivers in a multicast group, the administrator enables IGMP-Snooping on the switch connecting the receiver. After the receiver receives the general query message from the querier, the receiver receives multiple receivers. How to respond?

A.Only when IGMPv1 is running, all receivers respond to the Report message.

B.All recipients will respond to the Report message.

C.The first responder with a response timeout sends a Report message, and the other recipients do not send it.

D.Only the IGMPV2 is running, and all receivers respond to the Report message.
