H12-261_V3.0-ENU Exam Question 81

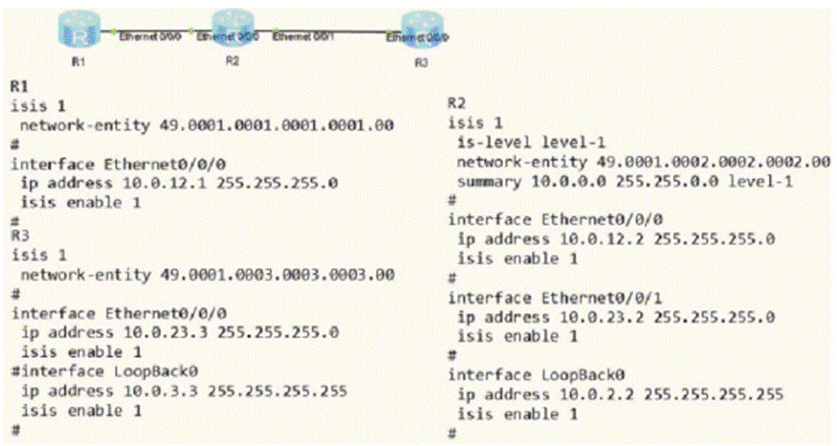

The following topology is available, and based on this analysis, the following statements which are correct?

A.The routing entries of 10.0.2.2/32 and 10.0.0.0/16 in the IP routing table of R1.

B.The routing entries of 10.3.3.3/32 and 10.0.0.0/16 exist in the IP routing table of R1.

C.Because R2 does route aggregation, only the routing entry of 10.0.0.0/16 exists in the IP routing table of R1.

D.The routing entries of 10.0.2.2/32 and 10.0.3.3/32 in the IP routing table of R1.

H12-261_V3.0-ENU Exam Question 82

The correct description in the following of BGP loop protection is: (Multiple Choice)

A.Non-RR BGP routers will not announce any update information from IBGP peers to other IBGP peers

B.Any routing information from IBGP peers will be advertised to other IBGP peers

C.DBGP routers will not announce any updates from EBGP peers to their EBGP peers

D.Through the AS-PATH attribute, discard any update information received from EBGP peers that contains its own AS number in the AS-PATH attribute

H12-261_V3.0-ENU Exam Question 83

The network administrator is going to use the 6to4 automatic tunnel to carry IPv6 data on the IPv4 network. The IPv4 address of the router interface is 138.14.85.210. So the corresponding tunnel address is 2001:8a0e:55d2:1:230:65ff:fe2:9a6

A.False

B.True

H12-261_V3.0-ENU Exam Question 84

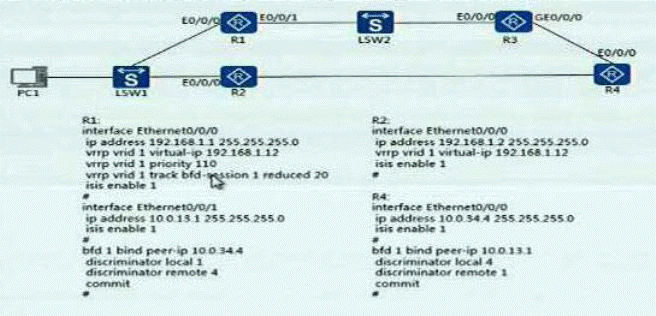

As shown in the following topology diagram, all the interfaces of the router in the figure are all enabled with the ISIS protocol. The correct statements of the following are: (Multiple Choice)

A.If the Ethernet 0/0/0 interface of R1 is down, then R2 will become the master device.

B.If the Ethernet 0/0/0 interface of R3 is down, then R2 will become the master device.

C.If the GE0/0/0 interface of R3 is down, then R2 will become the master device.

D.If the Ethernet 0/0/1 interface of R1 is down, then R2 will become the master device.

H12-261_V3.0-ENU Exam Question 85

ISIS does not send CSNP packets under the P2P network type during the neighbor establishment process.
