IS-IS is a link state routing protocol that uses the SPF algorithm for routing calculations. A park has deployed IPv4 and IPv6 at the same time and runs IS-IS to achieve network interconnection. As shown in the figure, the network IPv4 and IPv6 have the same overhead, and R1 and R4 only support IPv4. By default, in the calculated IPv6 shortest path tree, the next hop device for R2 to access R6 is () (Note: The device name must be consistent with the figure, such as: R1)

IGP converges faster than BGP, which may cause network traffic loss. By enabling the OSPF and BGP linkage feature of the device, the device remains as a () router within the set linkage time, so that the link metric value in the advertised LSA is the maximum value, thereby telling other OSPF devices not to use this router to forward data, so as to avoid the loss of traffic. (Note: If English letters are involved, all capitals are required)

When configuring the DHCP Relay function on the device, the VLANIF interface of the relay connected to the client must be bound to the DHCP server group, and the bound DHCP server group must be configured with the proxy DHCP server IP address.

According to this picture, we can judge:

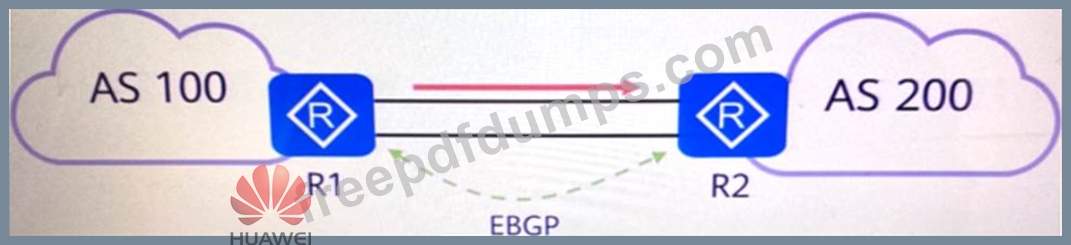

As shown in the figure, network administrator A on the R1 router, after modifying the MED value of the routing entry sent to R2 through the routing policy, can control the path of traffic entering AS100.
