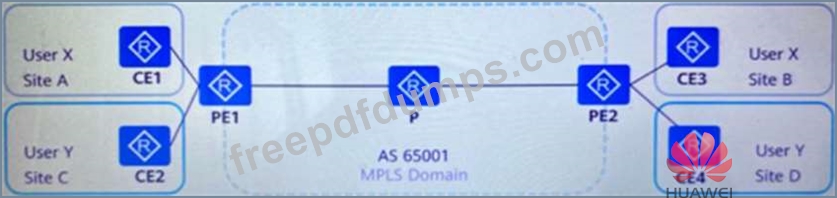

As shown in the figure, the carrier BGP/MPLS IP VPN backbone network constructs SP through DP. If you want to realize the intercommunication between the two sites of user X through the BGP/MPLS IPVPN network, the 32bit mask of Loopback interface address must be used between PE1 and PE2 to establish the MP-IBGP peer relationship.

What is the meaning of ipv6 enable topology ipv6 in IS-IS protocol view?

Which of the following descriptions about TTL in the MPLS header are correct? (Multiple choice)

Which of the following functions will affect BGP neighbor establishment? (Multiple choice)

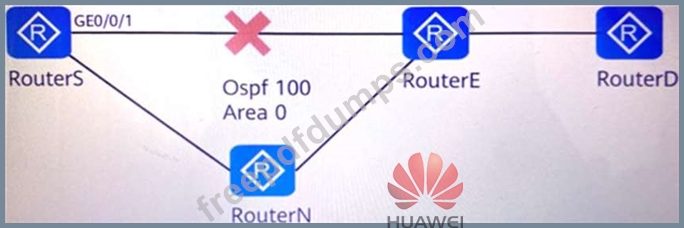

As shown in the figure, the entire network of a certain company uses OSPF to get through the network. However, RouterS and RouterE cannot establish an OSPF neighbor relationship. When detecting OSPF failures, network administrators can execute the display ospf 100 () interface GEO/0/1 command on RouterS to obtain error-related information. Users can perform OSPF failure diagnosis based on this information. (Please use English lowercase letters to complete the command, and the command cannot be abbreviated)
