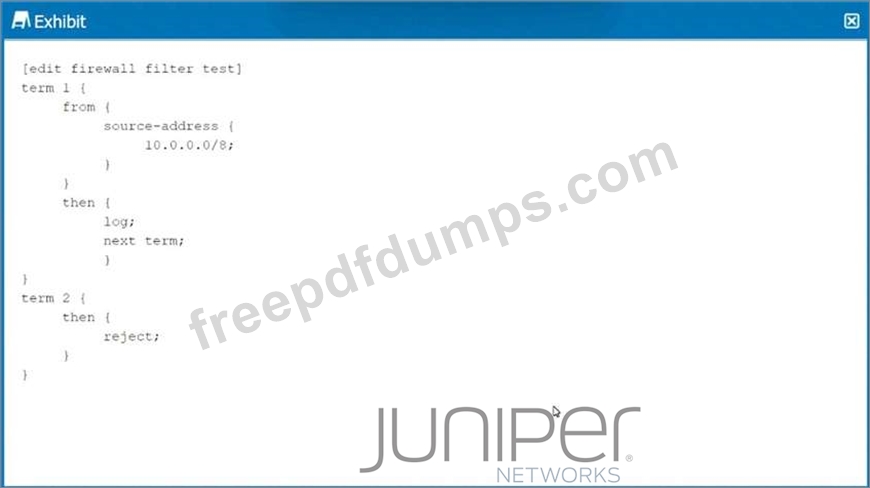

The firewall filter configuration in the exhibit specifies a filter with two terms. Term 1 matches traffic from the source address 10.0.0.0/8 and has two actions: 'log' and 'next term'. The 'log' action will record the match to a log file, and 'next term' indicates that the firewall should evaluate the next term after logging. There is no explicit action such as 'accept' or 'reject' in term 1, so by default, the traffic will be accepted unless subsequently rejected by another term.
Term 2 has the action 'reject', which discards packets that reach this term. Since there is no 'from' condition in term 2, it acts as a default rule for all traffic not matched by term 1.
Because the traffic sourced from 10.0.0.0/8 matches term 1 and there is no reject action in that term, it will be logged and then accepted by the firewall filter. There is no subsequent term that rejects this specific traffic, so the action from term 2 does not apply to it.

Junos OS supports only 1 rescue configuration file on a device. This rescue configuration is a safeguard feature that allows network administrators to revert to a known good configuration in case of a configuration error or issue, ensuring network stability.

In Junos OS, to navigate from operational mode to configuration mode, you can use either theeditorconfigure command. Both commands move the CLI from operational mode, where you can view the state of the device, to configuration mode, where you can make changes to the device's configuration.

The Packet Forwarding Engine (PFE) in Junos OS is responsible for maintaining the forwarding table. The PFE processes incoming packets, performs route lookups in the forwarding table, and forwards packets based on this information, offloading these tasks from the Routing Engine to ensure efficient packet forwarding.

The Packet Forwarding Engine (PFE) in Junos OS performs several key functions, including implementing firewall filters (A) and forwarding transit traffic (C). The PFE applies firewall filter rules to incoming and outgoing traffic and is responsible for the high-speed forwarding of packets based on the information in the forwarding table.
