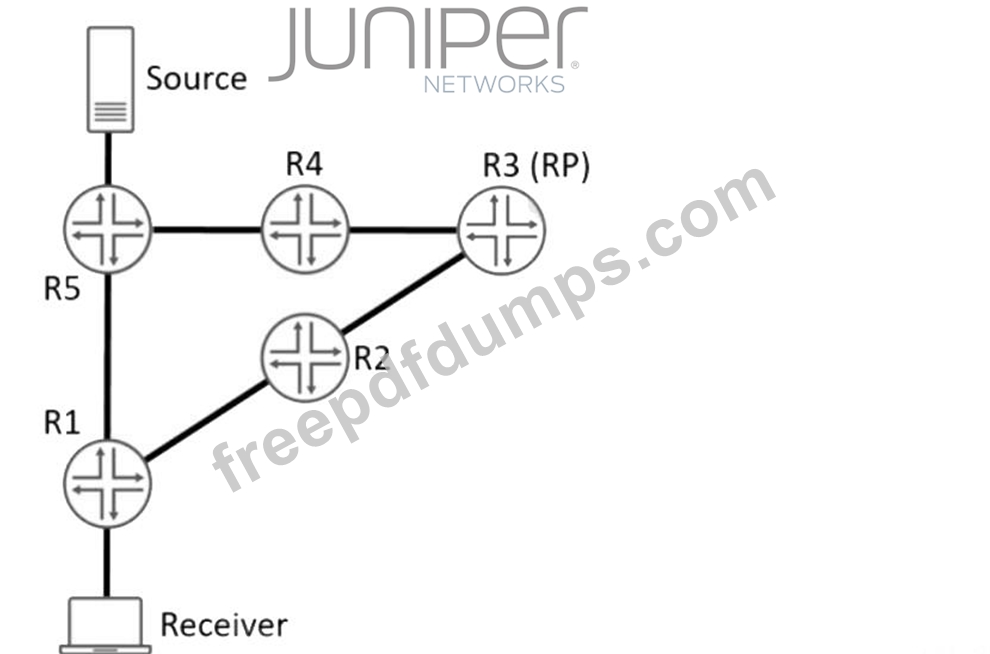

In a PIM-SM (Protocol Independent Multicast - Sparse Mode) network setup:
* Before the formation of the rendezvous-point tree, a join message is sent from R1 to R3 (RP):
* R1, being the router connected to the receiver, sends a PIM join message towards the RP (R3) to join the multicast group.
* Before the formation of the rendezvous-point tree, an IGMP is sent from the Receiver to R1:
* The receiver sends an IGMP membership report to its directly connected router (R1), indicating its interest in joining a multicast group.
References:
* The behavior of PIM-SM and the process of join messages and IGMP reports are covered in multicast networking sections of network configuration and design guides.

* Understanding IEEE 802.3af Standard:
* IEEE 802.3af, also known as PoE (Power over Ethernet), specifies the standard for delivering power over Ethernet cables.
* This standard allows devices like IP phones to receive power along with data over the same cable.
* Maximum Power Allocation:
* According to the IEEE 802.3af standard, the maximum power that can be delivered to a powered device is 15.4 watts.
* This power is delivered over Category 5 (Cat 5) cables or higher.
* EX Series Switches Compliance:
* Juniper EX Series switches with PoE support adhere to the IEEE 802.3af standard.
* Thus, each PoE port on these switches can allocate up to 15.4 watts to connected devices.
References:
* IEEE 802.3af standard specifications
* Juniper EX Series switch documentation

When MVRP is enabled, the protocol manages VLAN registration dynamically. In forbidden mode, VLANs are neither registered nor declared on the interface, meaning it prevents VLANs from being learned or propagated.
References:
* Juniper Networks Configuration Guide on MVRP

* OSPF Protocol Basics:
* OSPF (Open Shortest Path First) is a link-state routing protocol.
* Routers exchange LSAs (Link-State Advertisements) to share topology information.
* LSA Acknowledgment Mechanism:
* OSPF uses a reliable mechanism to ensure LSAs are received.
* When a router sends an LSA to a neighbor, it expects an acknowledgment (ACK).
* If an ACK is not received within a certain period, the router will retransmit the LSA.
* Acknowledgment Process:
* LSAs are sent over OSPF's reliable transport, which ensures delivery through acknowledgments.
* This mechanism helps to maintain consistent and up-to-date topology databases across routers.
References:
* OSPF RFC 2328
* Understanding OSPF Operations

For devices like printers that do not support 802.1X authentication, you can configure static MAC bypass. This allows traffic from devices with specific MAC addresses to bypass 802.1X authentication and gain network access directly.
References:
* From the Juniper documentation, you can implement static MAC bypass for devices that do not support
802.1X by configuring their MAC addresses to be statically permitted on the network.
* Useful Juniper Commands.txt
* Tech Ops Managed Router Juniper Install Guide
shell
Copy code
# Example configuration for static MAC bypass
set protocols dot1x authenticator interface ge-0/0/1.0 mac-radius static-mac 00:11:22:33:44:55 commit These configurations and explanations should address the questions accurately based on the provided information and referenced documents.
