Online Access Free Juniper.JN0-663.v2022-02-17.q84 Practice Test (Page 9)

JN0-663 Exam Question 36

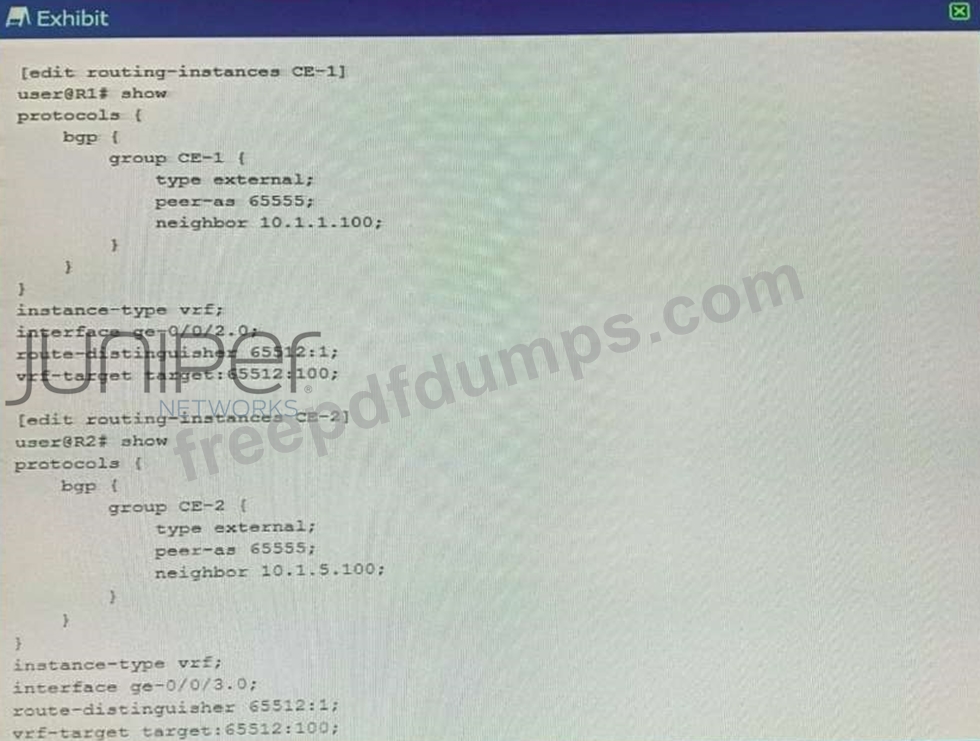

Exhibit:

Referring to the exhibit, which two statements are true? (Choose two.)

A.An AS loop will not exist between CE-1 and CE-2 and the BGP routes will be shared.

B.The CE-1 and CE-2 routes will have the same route distinguisher, which will stop the BGP routes from being shared.

C.The CE-1 and CE-2 routes will have the same route distinguisher, which will not stop the BGP routes from being shared.

D.An AS loop will exist between CE-1 and CE-2 and the BGP routes will not be shared.

JN0-663 Exam Question 37

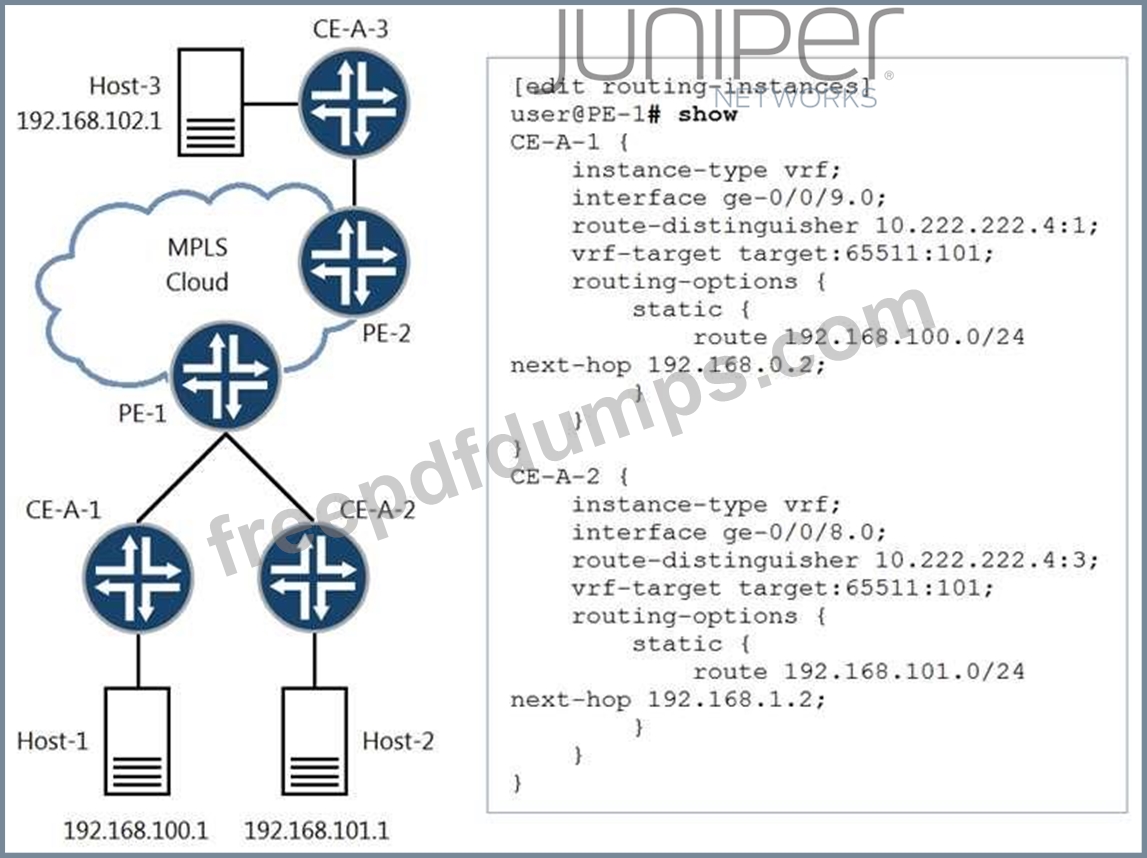

Referring to the exhibit, there is a Layer 3 VPN setup that connects sites CE-A-1, CE-A-2, and CE-A-3 together. Host-1 can communicate with Host-3, but Host-1 cannot communicate with Host-2.
What must you do to solve the problem?

A.Use the auto-exportcommand in both routing instances.

B.Use the next-tableconfiguration statement for static routes in the corresponding routing instances.

C.Change the route distinguisher in both routing instances to the same value.

D.Use BGP instead of static routing between the CE and PE devices.

JN0-663 Exam Question 38

Which two statements about wide and narrow metrics used in IS-IS are correct? (Choose two)

A.Wide metrics are enabled with the wide-metrics-or.ly parameter under protocols IS-IS hierarchy.

B.Wide metrics are sent by default and use 24 bits in TLVs to send information

C.Narrow metrics are enabled by default and use 8 bits in TLVs to send information

D.Disabling narrow metrics results in external routes being leaked from L1 to L2 areas automatically

JN0-663 Exam Question 39

Which two statements regarding Ethernet segments (ES) are correct? (Choose two.)

A.The Type-3 EVPN route will be used for the aliasing function to load-balance to the ES.

B.The Type-1 EVPN route will indicate if the ES is all-active or single-active.

C.The Type-2 EVPN route will indicate if there is a designated forwarder on the ES.

D.The Type-4 EVPN route will be used to elect the designated forwarder for the ES.

JN0-663 Exam Question 40

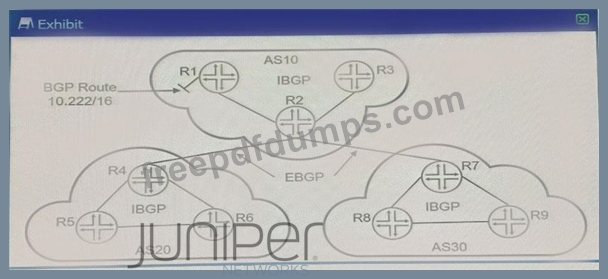

Exhibit:

Referring to the exhibit, which three statements about route 10.222/16 are correct when using the default BGP advertisement rules? (Choose three)

A.R2 will advertise 10.222/16 to R4 with itself as the next hop.

B.R1 will prepend AS10 when advertising 10.222/16 to R2.

C.R7 will advertise 10.222/16 to R9 with itself as the next hop.

D.R2 will prepend AS10 when advertising 10.222/16 to R7.

E.R1 will advertise 10 222/16 to R2 with itself as the next hop.
