See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Scale up the StatefulSet:
- Increase the 'replicas' value in the StatefulSet definition from 3 to 4. Apply the change using 'kubectl apply -f mysql-cluster.yaml'

2. Wait for the new pod to be created: - Monitor the pod creation process using 'kubectl get pods -l app=mysql-cluster'. Wait for the new pod to be created and enter a ready state. 3. Join the new pod to the cluster: - In the new pod's shell, execute the following command to join the existing MySQL cluster: Bash mysql -h -u -p -e "CHANGE MASTER TO MASTER PASSWORD=", MASTER DELAY=O" - Replace with the IP address of one of the existing MySQL replicas. - Replace , and '3306' with the appropriate values for your MySQL setup. 4. Verify the new replica is synchronized: - Use "SHOW SLAVE STATUS" command on the new replica to verify that it's successfully replicating data from the existing cluster. Ensure that the 'Slave 10 Running' and 'Slave SQL Running' statuses are both set to 'Yes'. 5. Promote the new replica: - Promote the new replica to a full member of the cluster by updating the StatefulSet definition to include the new pod's hostname. This will typically involve adding a new entry to the 'volumeClaimTemplates' section of the StatefulSet. 6. Test the cluster's health: - Run a series of read and write operations on the database to verify that the new replica is fully integrated and responding correctly. 7. Remove the old pod: - You can now delete the old pod that had the lowest pod index. This will trigger the automatic cleanup of the old volume, ensuring that only the healthy and synchronized replicas remain. By following these steps, you can add a new replica to your MySQL cluster while ensuring minimal downtime and preserving data consistency. ]

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create a Node Selector:
- Create a Node Selector label on the worker node where you want to host the Nginx pods.
- Example:

- Apply this configuration using 'kubectl apply -f node-config.yaml'. 2. Configure the Deployment: - Update the Nginx deployment to include the Node Selector label in its pod template. - Example:

- Apply the updated deployment configuration using 'kubectl apply -f nginx-deployment.yamr. 3. Create a LoadBalancer Service: - Create a LoadBalancer type service that selects the Nginx pods with the 'app=nginx' label. - Example:

- Apply the service configuration using 'kubectl apply -f nginx-service.yamP. 4. Verify the Deployment: - Confirm the deployment of the Nginx pods on the specified worker node using 'kubectl get pods -l app=nginx -o wide'. - Check the LoadBalancer service's external IP address using 'kubectl get services nginx-service'. - Access the Nginx service using the external IP address. All traffic should be routed to the pods on the worker node with the 'worker-type: nginx' label. ---

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Update Deployment YAML:
- Update the 'spec.replicas' field to the desired number of replicas for the new version.
- In the 'spec.strategy.rollingUpdate' section, set the 'maxUnavailable' to 1, meaning that only one pod can be unavailable during the update process.
- Set the maxSurge' to 1, limiting the number of new pods that can be created simultaneously to 1.

2. Apply the Updated Deployment: - Use 'kubectl apply -f deployment.yaml' to apply the changes to your cluster. 3. Monitor the Update Process: - Use 'kubectl get pods -l app=my-app' to monitor the pods. You will see a rolling update in progress: - One old pod will be terminated at a time. - One new pod will be created at a time. - The update will continue until all replicas are updated to the new version. 4. Verify the Update: - Once the update is complete, use 'kubectl describe deployment my-deployment' to check the deployment status. The 'updatedReplicas' field should match the 'replicas' field, indicating that the update was successful. By using 'maxUnavailable' and 'maxSurge' you control the number of unavailable and surge pods during the update process. This ensures a safe and controlled rolling update strategy.,

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1. Create a Deployment with a Replica Count:
- Create a YAML file named 'deployment.yamr with the following content:

- Apply the YAML file using 'kubectl apply -f deployment.yaml&. 2. Configure a Liveness Probe: - Update the 'deployment.yaml' file to include a liveness probe. For example, you could use a HTTP probe:

- Apply the updated YAML file using 'kubectl apply -f deployment.yaml'. 3. Verify the Deployment: - Check the status of the deployment using get deployments myapp-deploymen. - Ensure that three pods are running and that the liveness probe is monitoring their health. You can use 'kubectl describe pod myapp-deployment-XXXX' (where XXXX is the pod name) to see the details of the pod and the liveness probe status.

See the solution below with Step by Step Explanation.
Explanation:
Solution (Step by Step) :
1 . Configure CoreDNS with Namespace-Specific DNS:
- In the CoreDNS ConfigMap, configure the 'kubernetes' plugin to restrict DNS resolution based on namespaces.

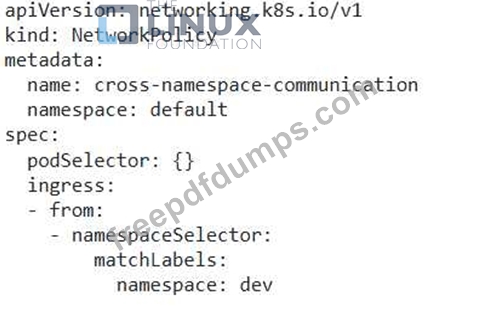

2. Use Network Policies for Cross-Namespace Communication: - If you need pods in one namespace to communicate with services in another namespace, use network policies to explicitly allow the communication.

3. Test Namespace-Specific DNS: - Deploy pods in different namespaces and try to resolve service names from those pods. You should only be able to resolve names of services in the same namespace or namespaces that have been explicitly allowed using network policies.
