A virtual machine scale set is a group of identical virtual machines that are centrally managed, configured, and updated1. A virtual machine scale set can automatically increase or decrease the number of virtual machine instances in response to demand or a defined schedule2. A virtual machine scale set also provides high availability and fault tolerance by distributing the virtual machine instances across multiple fault domains and update domains3.
A fault domain is a logical group of underlying hardware that share a common power source and network switch. A fault domain can fail due to hardware or software failures, power outages, or network interruptions4. A virtual machine scale set can have up to five fault domains in a region.
An update domain is a logical group of underlying hardware that can undergo maintenance or be rebooted at the same time. An update domain can be affected by planned events, such as OS updates, application updates, or configuration changes4. A virtual machine scale set can have up to 20 update domains in a region.
By creating a virtual machine scale set that has 10 virtual machine instances, you can ensure that App1 always runs on at least eight virtual machines during planned Azure maintenance. This is because the default configuration of a virtual machine scale set is to have five fault domains and five update domains. This means that at any given time, only one fault domain or one update domain can be unavailable due to maintenance or failure. Therefore, at least eight out of 10 virtual machine instances will be available to run App1.
An availability set is another option for providing high availability and fault tolerance for your virtual machines. An availability set is a logical grouping of two or more virtual machines that are deployed across multiple fault domains and update domains. However, an availability set does not provide automatic scaling of resources or load balancing of traffic. You need to manually create and manage the number of virtual machine instances in an availability set.
Therefore, a virtual machine scale set is a better option than an availability set for your scenario. To create a virtual machine scale set, you can follow these steps:
Sign in to the Azure portal.
Select Create a resource > Compute > Virtual machine scale set.
On the Basics tab, enter a name for your scale set, select your subscription and resource group, select Windows Server 2019 as the image type, and enter a username and password for the administrator account.
On the Instance details tab, select the region where you want to deploy your scale set, select the size of the virtual machine instances, and enter 10 as the initial instance count.
On the Scaling tab, configure the scaling policy for your scale set based on metrics or schedule.
On the Load balancing tab, configure the load balancer for your scale set to distribute traffic across the instances.
On the Management tab, configure the diagnostics settings, automatic OS upgrades, extensions, and backup options for your scale set.
On the Advanced tab, configure the availability zone, proximity placement group, accelerated networking, host group, and custom script extension options for your scale set.
On the Tags tab, optionally add tags to your scale set resources.
On the Review + create tab, review your settings and select Create.

The correct answer is a Desired State Configuration (DSC) extension . Azure VM extensions are designed for post-deployment configuration and automation on Azure virtual machines, and Microsoft states that VM extensions can be managed by ARM templates, PowerShell, Azure CLI, and the Azure portal. Microsoft's DSC extension documentation states that the Azure DSC extension uses the Azure VM Extension framework to deliver, enact, and report on DSC configurations running on Azure VMs.
Because the virtual machines are Windows Server instances deployed in a virtual machine scale set through an ARM template, the DSC extension is the correct mechanism to enforce a desired software configuration across all deployed instances. It can be included in the template so that each VM receives the required configuration after provisioning.
The New-AzConfigurationAssignment cmdlet relates to machine configuration assignments and is not the direct ARM-template VM extension mechanism for installing software during deployment. Azure Application Insights monitors application telemetry; it does not install NGINX. Microsoft Intune device configuration profiles manage enrolled devices, not Azure VMSS software installation in an ARM deployment. This maps to AZ-104 Deploy and manage Azure compute resources , specifically Deploy and configure Azure Virtual Machine Scale Sets and ARM template-based deployment.

Explanation:
Box 1 = max value
Box 2 = 20
Explanation:
Use max for platformFaultDomainCount
2 or 3 is max value, depending on which region you are in.
Use 20 for platformUpdateDomainCount
Increasing the update domain (platformUpdateDomainCount) helps with capacity and availability planning when the platform reboots nodes. A higher number for the pool (20 is max) means that fewer of their nodes in any given availability set would be rebooted at once.
References:
https://www.itprotoday.com/microsoft-azure/check-if-azure-region-supports-2-or-3-fault-domains-managed- disks
https://github.com/Azure/acs-engine/issues/1030

In this scenario, you need to inspect all network traffic between VM1 and VM2 in VNet1 for a period of time.
The proposed solution uses Azure Network Watcher - Connection Monitor. However, this solution does not meet the goal, because Connection Monitor is designed to test connectivity and monitor latency, packet loss, and reachability between two endpoints-not to capture or inspect the actual contents or packets of the traffic.
According to Microsoft Azure Administrator Study Guide and Azure Network Watcher official documentation, Azure provides different tools for different purposes:
Connection Monitor: Verifies that a connection exists between two VMs or endpoints and monitors metrics such as latency, availability, and packet loss. It does not capture network packets or provide detailed traffic inspection.
Network Watcher Packet Capture: Captures actual network packets entering or leaving a virtual machine. It is the correct tool to use when you need to inspect all network traffic between VMs. Packet capture can be configured to run for a specific time (for example, three hours) and stored in Azure Storage for later analysis.
From the Microsoft Learn: " Implement and Manage Network Watcher " documentation, the correct approach is:
"Use Network Watcher Packet Capture to capture network traffic to and from a virtual machine. Packet capture helps in diagnostics by collecting network traffic over a specified time frame or under certain conditions." Therefore, to meet the goal of inspecting all traffic between VM1 and VM2, you must use Packet Capture, not Connection Monitor.

Explanation:

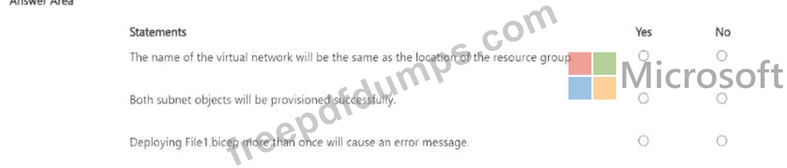

When working with Bicep templates (the declarative language used by Azure Resource Manager), resource deployment behaviors are governed by parameters, variable assignments, and idempotent deployment principles.
Name of the Virtual Network:
In a Bicep file, the name of a virtual network (VNet) is explicitly defined in the template or passed as a parameter. It does not automatically inherit the name or location of the resource group. Therefore, unless explicitly coded that way, the VNet name is not derived from the resource group's location or name.
Subnet provisioning:
A virtual network must have unique subnet names and non-overlapping address spaces. If a Bicep template contains subnet definitions with conflicting address prefixes or duplicated names, Azure Resource Manager will fail to provision them. Thus, if both subnets have overlapping ranges or identical names, both will not be provisioned successfully.
Re-deployment of File1.bicep:
Azure Bicep and ARM templates are idempotent-meaning repeated deployments of the same template with the same parameters do not cause errors. Instead, existing resources are verified and updated if necessary.
Hence, redeploying File1.bicep will not cause an error message unless a conflict or manual deletion occurs.
