Explanation
A service bus instance has already been created (Step 2 below). Next is step 3, Create a Service Bus queue.
Note:
Steps:
Step 1: # Create a resource group
resourceGroupName="myResourceGroup"
az group create --name $resourceGroupName --location eastus
Step 2: # Create a Service Bus messaging namespace with a unique name
namespaceName=myNameSpace$RANDOM
az servicebus namespace create --resource-group $resourceGroupName --name $namespaceName --location eastus Step 3: # Create a Service Bus queue az servicebus queue create --resource-group $resourceGroupName --namespace-name $namespaceName
--name BasicQueue
Step 4: # Get the connection string for the namespace
connectionString=$(az servicebus namespace authorization-rule keys list --resource-group
$resourceGroupName --namespace-name $namespaceName --name RootManageSharedAccessKey --query primaryConnectionString --output tsv) Reference:
https://docs.microsoft.com/en-us/azure/service-bus-messaging/service-bus-quickstart-cli

Explanation
Specify custom warm-up.
Some apps might require custom warm-up actions before the swap. The applicationInitialization configuration element in web.config lets you specify custom initialization actions. The swap operation waits for this custom warm-up to finish before swapping with the target slot. Here's a sample web.config fragment.
<system.webServer>
<applicationInitialization>
<add initializationPage="/" hostName="[app hostname]" />
<add initializationPage="/Home/About" hostName="[app hostname]" />
</applicationInitialization>
</system.webServer>
Reference:
https://docs.microsoft.com/en-us/azure/app-service/deploy-staging-slots#troubleshoot-swaps

Explanation

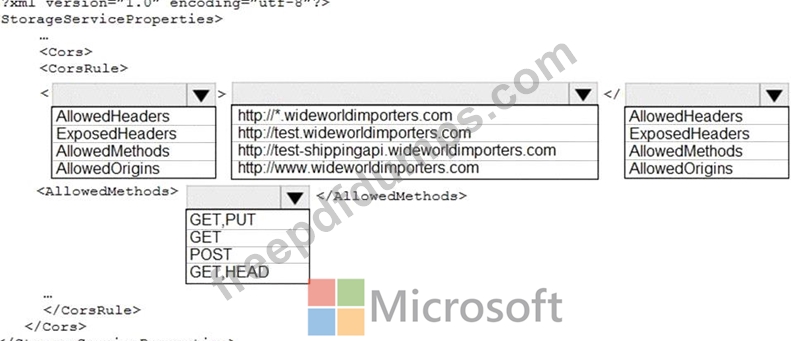

Box 1: AllowedOrigins
A CORS request will fail if Access-Control-Allow-Origin is missing.
Scenario:
The following error message displays while you are testing the website:

Box
2: http://test-shippingapi.wideworldimporters.com
Syntax: Access-Control-Allow-Origin: *
Access-Control-Allow-Origin: <origin>
Access-Control-Allow-Origin: null
<origin> Specifies an origin. Only a single origin can be specified.
Box 3: AllowedOrigins
Box 4: POST
The only allowed methods are GET, HEAD, and POST. In this case POST is used.
"<Corsrule>" "allowedmethods" Failed to load no "Access-control-Origin" header is present References:
https://developer.mozilla.org/en-US/docs/Web/HTTP/Headers/Access-Control-Allow-Origin
Topic 3, City Power & Light
Case study
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.
To start the case study
To display the first question in this case study, click the button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. When you are ready to answer a question, click the Background City Power & Light company provides electrical infrastructure monitoring solutions for homes and businesses.
The company is migrating solutions to Azure.
Current environment
Architecture overview
The
company has a public website located at http://www.cpandl.com/. The site is a single-page web application that runs in Azure App Service on Linux. The website uses files stored in Azure Storage and cached in Azure Content Delivery Network (CDN) to serve static content.
API Management and Azure Function App functions are used to process and store data in Azure Database for PostgreSQL. API Management is used to broker communications to the Azure Function app functions for Logic app integration. Logic apps are used to orchestrate the data processing while Service Bus and Event Grid handle messaging and events.
The solution uses Application Insights, Azure Monitor, and Azure Key Vault.
Architecture diagram
The company has several applications and services that support their business. The company plans to implement serverless computing where possible. The overall architecture is shown below.

User authentication
The following steps detail the user authentication process:
* The user selects Sign in in the website.
* The browser redirects the user to the Azure Active Directory (Azure AD) sign in page.
* The user signs in.
* Azure AD redirects the user's session back to the web application. The URL includes an access token.
* The web application calls an API and includes the access token in the authentication header. The application ID is sent as the audience ('aud') claim in the access token.
* The back-end API validates the access token.
Requirements
Corporate website
* Communications and content must be secured by using SSL.
* Communications must use HTTPS.
* Data must be replicated to a secondary region and three availability zones.
* Data storage costs must be minimized.
Azure Database for PostgreSQL
The database connection string is stored in Azure Key Vault with the following attributes:
* Azure Key Vault name: cpandlkeyvault
* Secret name: PostgreSQLConn
* Id: 80df3e46ffcd4f1cb187f79905e9a1e8
The connection information is updated frequently. The application must always use the latest information to connect to the database.
Azure Service Bus and Azure Event Grid
* Azure Event Grid must use Azure Service Bus for queue-based load leveling.
* Events in Azure Event Grid must be routed directly to Service Bus queues for use in buffering.
* Events from Azure Service Bus and other Azure services must continue to be routed to Azure Event Grid for processing.
Security
* All SSL certificates and credentials must be stored in Azure Key Vault.
* File access must restrict access by IP, protocol, and Azure AD rights.
* All user accounts and processes must receive only those privileges which are essential to perform their intended function.
Compliance
Auditing of the file updates and transfers must be enabled to comply with General Data Protection Regulation (GDPR). The file updates must be read-only, stored in the order in which they occurred, include only create, update, delete, and copy operations, and be retained for compliance reasons.
Issues
Corporate website
While testing the site, the following error message displays:
CryptographicException: The system cannot find the file specified.
Function app
You perform local testing for the RequestUserApproval function. The following error message displays:
'Timeout value of 00:10:00 exceeded by function: RequestUserApproval'
The same error message displays when you test the function in an Azure development environment when you run the following Kusto query:
FunctionAppLogs
| where FunctionName = = "RequestUserApproval"
Logic app
You test the Logic app in a development environment. The following error message displays:
'400 Bad Request'
Troubleshooting of the error shows an HttpTrigger action to call the RequestUserApproval function.
Code
Corporate website
Security.cs:

Function app
RequestUserApproval.cs:
