The Azure Site Recovery Provider must be installed and registered on every Hyper-V host that is a node of the cluster being protected, because each node is a location the protected virtual machines could reside on after a live migration, and each node must independently be able to track and replicate the VMs it is currently hosting. Cluster2 has four nodes according to the Hyper-V failover clusters table (Cluster1 has six nodes and eighteen virtual machines, Cluster2 has four nodes and twelve virtual machines, and Cluster3 has two nodes and six virtual machines), so a minimum of four Provider installations -- one per node -- is required; installing the Provider on only one, two, or three of the nodes would leave replication unable to follow a protected VM if it live-migrated to whichever node lacks the Provider, breaking continuous replication for that VM the moment it moved. Therefore, four is the minimum number of Azure Site Recovery Provider installations required to fully protect all of Cluster2 ' s virtual machines regardless of which node currently hosts them.

Explanation:
1. Create a failover cluster. 2. Enable Storage Spaces Direct. 3. Create a volume.

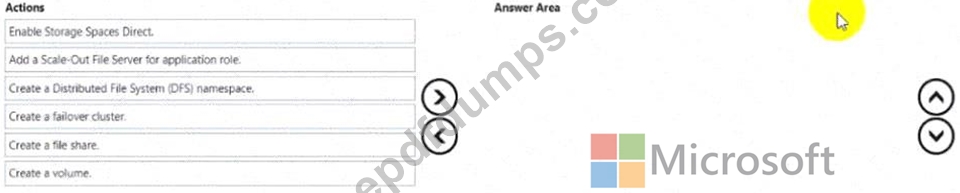

Deploying a Hyper-V hyper-converged cluster backed by Storage Spaces Direct follows a fixed, documented order of operations. The process begins by validating the intended nodes and creating a failover cluster from them, since Storage Spaces Direct is a capability that is enabled on top of an already-existing failover cluster rather than something that can be configured before a cluster exists. Once the cluster is formed, running Enable-ClusterStorageSpacesDirect, or the equivalent Windows Admin Center wizard, pools the local disks contributed by every node in the cluster into a single software-defined storage pool that spans the cluster.
Only after that pool exists can one or more volumes actually be created from it, and those volumes become the Cluster Shared Volumes that Hyper-V virtual machines are placed on and run from. A Scale-Out File Server role and a Distributed File System namespace both belong to a converged, or disaggregated, deployment model where compute and storage live on entirely separate clusters, so neither applies to this hyper-converged design, and creating a plain file share is unnecessary since Hyper-V virtual machines are stored directly on the CSV volumes rather than accessed through a file share.

Explanation:

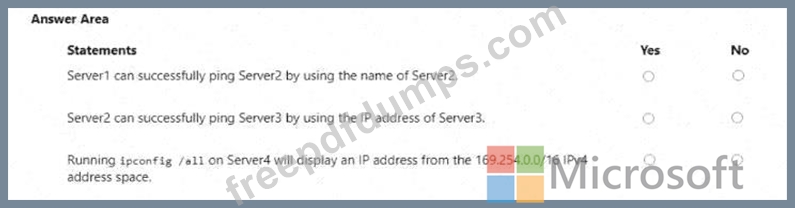

Server1 can successfully ping Server2 by using the name of Server2: No. Server2 can successfully ping Server3 by using the IP address of Server3: No. Running ipconfig /all on Server4 will display an IP address from the 169.254.0.0/16 IPv4 address space: No.
A host decides whether a destination is local by comparing the destination IP against its own subnet mask; if the destination falls outside its own subnet, the host forwards through its default gateway, and if within its own subnet, it uses ARP directly on the local segment. Server2 is physically cabled to Segment1 but has been configured with an IP address (172.16.2.2/24) that places it in the 172.16.2.0/24 network -- a subnet that is physically Segment2. When Server1 (172.16.1.10/24) resolves and pings Server2 ' s name, it gets back
172.16.2.2, which Server1 treats as a remote address (outside its own 172.16.1.0/24) and forwards to its gateway, 172.16.1.1; the router then forwards toward the 172.16.2.0/24 network (physically Segment2), where Server2 is not actually present, so the ping fails. Likewise, when Server2 (believing itself to be on
172.16.2.0/24) tries to reach Server3 (172.16.2.20), it thinks the destination is local and issues an ARP request on the wire it ' s actually attached to (Segment1); ARP requests never cross a router, so the request never reaches Server3 (physically on Segment2), and the ping fails. Server4 was given a static IP address (172.16.1.1); APIPA (169.254.0.0/16) is assigned only to interfaces configured for automatic (DHCP) addressing when no DHCP server responds -- a statically configured interface never receives an APIPA address regardless of any conflict, so ipconfig /all on Server4 will show its configured static address,
172.16.1.1 (which incidentally also collides with Segment1 ' s gateway address, a separate misconfiguration), not an APIPA address.

A Planned Failover in Hyper-V Replica requires the source (primary) virtual machine to be gracefully shut down and reachable so that any final, not-yet-replicated changes can be sent across before the role formally switches to the replica -- a precondition that cannot be met when the primary host itself has suffered a hardware failure and is unreachable. Because Server1 has failed and VM1, VM2, and VM3 cannot be contacted, gracefully shutting them down is impossible, ruling out Planned Failover as an option. Instead, the administrator must perform an Unplanned Failover from Hyper-V Manager on Server2, which brings each replica virtual machine online using whatever data was most recently replicated (and, if recovery points are configured, the most recent available recovery point) without requiring any action on, or connectivity to, the failed primary host. This is the recovery path specifically documented for unexpected primary-host outages, in direct contrast to Planned Failover, which is reserved for scheduled maintenance or controlled, orderly migrations where the primary is still running. " Start " merely powers on an existing VM without invoking replica failover logic, and " Move " performs a live or quick migration that requires the source host to be online, so neither applies here. Therefore, Unplanned Failover is the correct action for each virtual machine.

iWARP (Internet Wide Area RDMA Protocol) implements RDMA on top of standard TCP/IP, which allows it to operate over an ordinary, lossy Ethernet fabric without requiring Data Center Bridging or Priority Flow Control to guarantee lossless delivery of RDMA traffic. This is fundamentally different from RoCE (RDMA over Converged Ethernet), in either its v1 or v2 form, both of which depend on a DCB-configured, lossless Ethernet fabric to operate reliably, since RoCE has no built-in congestion or loss-recovery mechanism of its own and instead relies on the underlying network to guarantee lossless delivery. InfiniBand is excluded outright because it is not an Ethernet-based fabric at all, and the requirement explicitly calls for an Ethernet fabric. Because the deployment must use Ethernet while specifically eliminating the DCB dependency that both RoCEv1 and RoCEv2 require, iWARP is the only RDMA technology among the options that satisfies both stated requirements simultaneously for the Storage Spaces Direct converged infrastructure deployment.
