After the new AFF A70 joins the existing cluster, the volume move operation is used to nondisruptively migrate volumes from the AFF A800 HA pair to the new system while client access remains online.

An amber LED after PSU replacement commonly indicates the module is unsupported, faulty, or improperly seated. NetApp systems support hot-swappable PSU replacement without rebooting.
Shelf firmware does not directly affect PSU state. Engineers should reseat the component and verify part compatibility before escalating to hardware replacement procedures.

NS224 shelves use Ethernet storage connectivity, and the connected ports must be configured for storage use. Setting the port mode to storage enables the correct NVMe shelf pathing so the disks are seen through the expected redundant paths.

1. L1 Watchdog Reset (WDR):
Description:
L1 WDR is a hardware-initiated reset that occurs when the system detects an unrecoverable error or lockup lasting 0.5 seconds.
Key Characteristics:
It performs a hard reset, meaning the system immediately reboots without creating a core dump.
2. L2 Watchdog Reset (WDR):
Description:
L2 WDR is initiated when the system fails to recover from a critical fault after 2 seconds.
Key Characteristics:
It requests a core dump to capture the system state for diagnostic purposes before performing a reset.

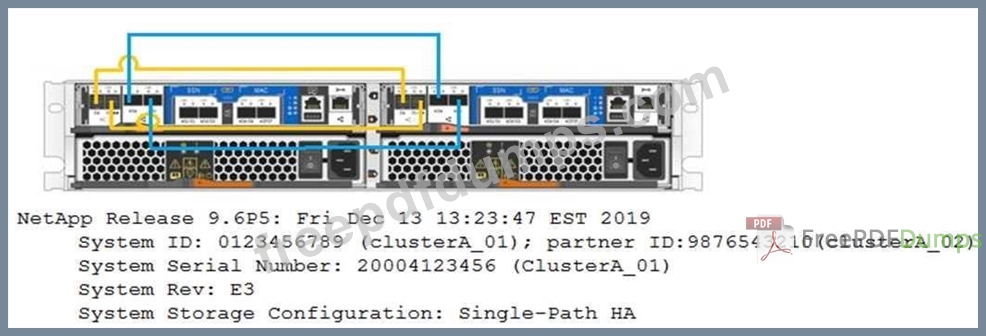

In a NetApp high-availability (HA) configuration, multipath HA ensures redundancy by providing two independent paths from each controller to the connected storage. If the system is currently showing Single-Path HA, it means only one path is operational or connected, which is a potential single point of failure.
To convert the configuration to multipath HA, additional cabling must be configured to establish the second path. For the AFF A220 system, the correct connections are as follows:
Explanation of the Correct answer:
AFF A220 Port Configuration for HA:
Each controller in an AFF A220 has ports labeled 0a, 0b, 0c, and 0d for connectivity.
In a multipath HA configuration, each controller must have two independent paths to the connected storage via the partner controller's disk shelves.
Correct Cabling for Multipath HA:
Port 0a on both controllers must be connected to the corresponding port (e.g., disk shelf stack or Inter-Switch Link).
Port 0c on both controllers must also be connected to complete the redundant path.
These connections ensure that there are two independent data paths between the controllers and the storage system, providing fault tolerance in case one path fails.
Single-Path HA to Multipath HA:
If the system currently shows Single-Path HA, it is likely that only one set of ports (e.g., 0a and
0b) are cabled.
Adding the additional connections on 0a and 0c establishes the second path required for multipath HA.
