The correct answer is Option C based on the UML 2 Foundation concepts for activities and pre/postconditions.
Analysis of the Diagram in Option C:
* The diagram depicts an activity named "Withdraw Money".
* There are two diamonds preceding the activity, representing preconditions. Preconditions are conditions that must be true before the activity can be executed.
* The text within the first diamond indicates that "the amount of money to withdraw is entered".
* The text within the second diamond indicates that "the account has sufficient funds".
* This aligns with the scenario where the user must enter a withdrawal amount and the account must have enough money to cover the withdrawal before the "Withdraw Money" activity can proceed.
* Following the activity, there's a diamond labeled "postcondition," indicating a condition that becomes true after the activity is completed.
* The text within the postcondition diamond states that "the account balance is updated." This reflects the scenario where the account balance is updated after a successful withdrawal.
Comparison with Other Options:
* Option A, B, and D do not explicitly show preconditions and postconditions using the diamond notation, making them less suited to represent the scenario where certain conditions need to be met before and after the action.
References
* UML 2.5.1 Specification (Superstructure): Sections on Activity Diagrams and Pre/Postconditions https://www.omg.org/spec/UML/2.4/Superstructure/PDF

In the context of a UML (Unified Modeling Language) model, the class named 'Employee' represents a template for all entities that are classified as employees within the business enterprise model. Therefore, the correct answer is:
B: The set of all employees of the company
The term 'Employee' in the class diagram is a UML Class, which is defined as a description of a set of objects that share the same attributes, operations, relationships, and semantics (UML 2.5 specification, section 9.2). A class in UML is a blueprint from which individual objects (instances of the class) are created. It is not a representation of any single employee, an anonymous employee, or a diagram of an employee, but rather the conceptual model that defines the properties and behaviors of all employee instances in the domain being modeled.

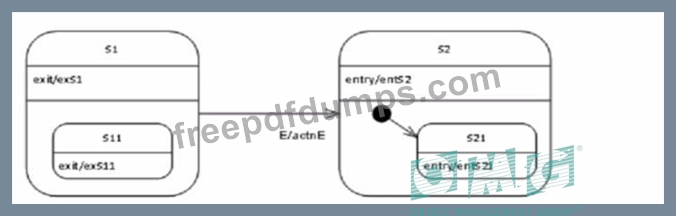

The image depicts a state machine with the following states:
* S1
* S11
* S2
* S21
The state machine transitions are labeled as follows:
* gxSH - This triggers the transition from the initial state to S1.
* E - This event triggers the transition from S11 to S21.
* exS1 - This signifies exiting state S1.
* exS11 - This signifies exiting state S11.
* entS2 - This signifies entering state S2.
* entS21 - This signifies entering state S21.
* actnE - This indicates an action associated with the E event.
Given the state machine is currently in state S11 and an event of type E occurs, here's the sequence of behavior executions:
* actnE: The action associated with event E is executed.
* exS11: The state machine exits state S11.
* exS1: Since S11 is nested within S1, exiting S11 also implicitly triggers exiting S1.
* entS2: The state machine enters state S2.
* entS21: The state machine enters the nested state S21.
Justification for excluding other options:
* Option A (actnE; exS1; exS11: entS21; entS2) has the order of entering S2 and S21 reversed.
* Option C (exS11; actnE; entS2) omits the execution of the action associated with event E.
* Option D (gxSH; exS1; actnE; entS2) includes the irrelevant initial transition trigger (gxSH).
* Option E (exS11; exS1; actnE; entS2; entS21) has an extra exiting of state S1, which is not part of the valid transition path.
Following the state transitions and action triggers depicted in the state machine diagram, option B accurately reflects the sequence of behaviors that occur when event E triggers a transition from state S11.

The correct answer is Option B. This diagram accurately depicts the scenario where activity Act1 is carried out first, followed by activity Act2, and then Act1 is performed again.
Here's why the other options are incorrect:
* Option A: This diagram shows Act1 followed by Act2, but Act1 is not repeated.
* Option C: Similar to Option A, this diagram depicts Act1 followed by Act2, without a repetition of Act1.
* Option D: This diagram has conditional branches, which is not part of the given scenario where the activities are carried out sequentially.
Following the logic from the prompt: Act1 -> Act2 -> Act1, Option B visually represents this sequence with arrows connecting the activities in the specified order.

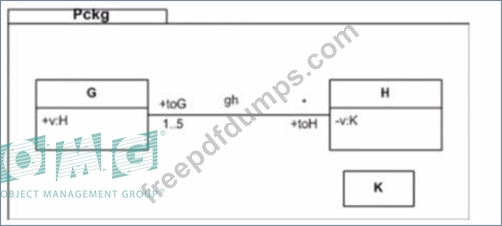

The diagram shows a package Pckg that includes two classes G and H with a one-to-many association between them. The multiplicity '1..5' near class G on the 'gh' association end suggests that for each H object, there should be between 1 to 5 associated G objects. However, the '*' (multiplicity many) near class H on the 'gh' association end indicates that a G object can be associated with zero or more H objects. This implies that it's possible to have a G object that is not associated with any H object.
References:
* UML 2.x Superstructure Specification: Multiplicity notations and association rules are clearly defined in the UML specifications, which detail the semantics of multiplicities and their implications for object association.
* UML 2.x Infrastructure Specification: Further explains the basic constructs of the UML metamodel, which underpin the interpretation of multiplicities in associations.
