When setting up a Data Guard Broker configuration for a primary database and its physical standby, the following prerequisites must be met:
* A: Oracle Net connectivity must be defined on both the primary and standby hosts to enable the respective database instances to communicate with each other.
* B: Supplemental logging is required on the primary database because it provides additional logging necessary for the standby database to be able to apply changes from the primary database accurately.
* F: The DG_BROKER_START parameter must be set to TRUE for both the primary and standby
* database instances. This parameter is used to start the Data Guard Broker process which manages the configuration.
Options C and D are not prerequisites for creating a Data Guard Broker configuration. Additionally, while FORCE LOGGING mode (option E) is recommended as a best practice to prevent possible data inconsistencies during media recovery, it is not a strict prerequisite for creating a Data Guard Broker configuration.
References: This guidance is based on Oracle's best practices for setting up Data Guard configurations, as found in the Oracle Data Guard Broker documentation and the Oracle Data Guard Concepts and Administration guide.

Data Guard Broker is a management tool that simplifies the configuration, management, and monitoring of Data Guard environments. The prerequisites for using Data Guard Broker include:
* The primary and standby databases must run the same version of the Oracle Database server (A):
This ensures compatibility between the primary and standby databases and enables seamless role transitions and data synchronization.
* Network connectivity to the primary database instance must be defined on the servers hosting the standby database instances (B): Proper network connectivity is essential for communication between the primary and standby databases, allowing for the replication of data and the synchronization of changes.
* If any database in the configuration is a RAC database, then the broker configuration files must reside in shared storage accessible by all database instances for all databases in the broker configuration (D): In Real Application Clusters (RAC) environments, shared storage ensures that all instances of the RAC database can access the broker configuration files, facilitating the management of the Data Guard environment across all instances.References:
* Oracle Data Guard Broker documentation
* Oracle Real Application Clusters Administration and Deployment Guide

The rate of SQL apply on a logical standby database can be influenced by:
A: The number of PREPARER processes (which seems to be a typographical error and should read as PREPARER or similar) which prepare the redo data for the applier processes.
B: The number of coordinator processes on the standby database instance which coordinate the SQL apply activities.
C: The number of full table scans performed by SQL apply since full table scans can be resource-intensive and slow down the apply rate.
E: The number of applier processes which apply the redo data to the logical standby database.
Option D is incorrect as the size of the undo tablespace on the logical standby database is more likely to affect the SQL apply lag rather than the rate of SQL apply.
Option F is incorrect because the size of the shared pool would typically not influence the rate of SQL apply. The shared pool is more related to the caching of shared SQL and PL/SQL code and control structures.

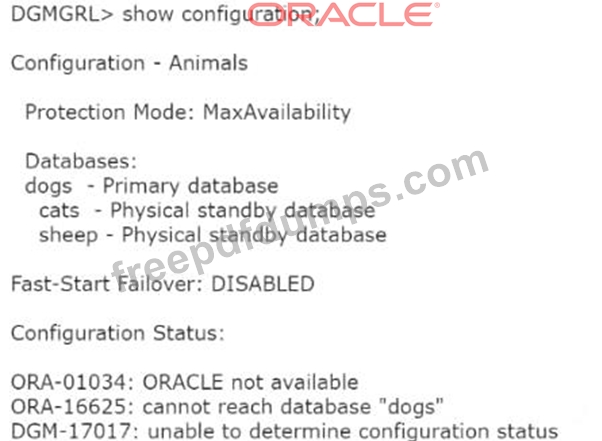

After a successful failover to the 'cats' database in a Data Guard configuration:
* B: Sheep, being another standby database, would typically remain in the enabled state unless specifically disabled or if there was a configuration issue.
* D: Dogs, which was the primary database prior to failover, will be in a disabled state as part of the failover process. Manual intervention is required to re-establish 'dogs' as a standby database or to return it to the primary role through another role transition.
* E: If the configuration was in Maximum Availability mode before failover, it would remain in this mode after failover, provided all settings were properly configured and no changes were made to the protection mode.
Option A is incorrect because failover does not automatically change the protection mode to Maximum Performance. The protection mode remains as it was prior to the failover unless manually altered.
References: The behavior of Oracle Data Guard during failover and the resulting configuration state is described in the Oracle Data Guard Broker documentation.

The Data Guard Monitor (DMON) process is a key component of Oracle Data Guard. It plays a crucial role in managing and monitoring the state of both the primary and standby databases in a Data Guard configuration.
Performing role transitions when switchover requests are made (A): DMON is responsible for coordinating the switchover process between the primary and standby databases. This involves safely transitioning the roles of the databases to ensure data protection and availability.
Maintaining information about all members of the broker configuration in binary configuration files (B): DMON maintains detailed information about the databases in the Data Guard configuration, including their roles, states, and network addresses. This information is stored in binary configuration files, which are used by the Data Guard Broker to manage the Data Guard environment.
Activating role-based services appropriately in the various database instances of the configuration, based on the database role (C): DMON activates services that are appropriate for the role of each database in the Data Guard configuration. For example, it may activate different services on a primary database than on a standby database, based on the specific requirements of each role.
Reference:
Oracle Data Guard Concepts and Administration
Oracle Data Guard Broker documentation
