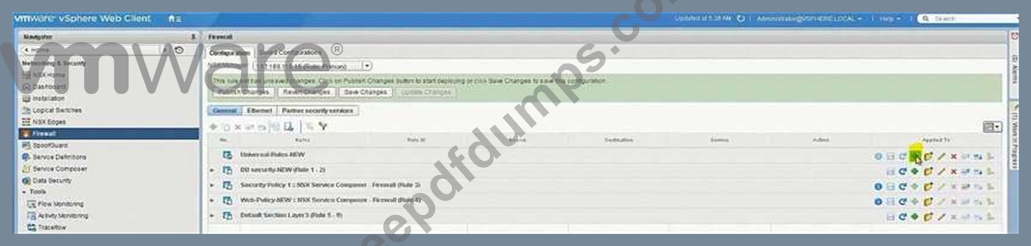

Provide cross vCenter security functionality for the Universal Web Multi-Tiered network application.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
New Section Name: Universal-Rules-New
Networks:
Web-Tier: 172.17.10.0/24
App-Tier: 172.17.20.0/24
DB-Tier: 172.17.30.0/24

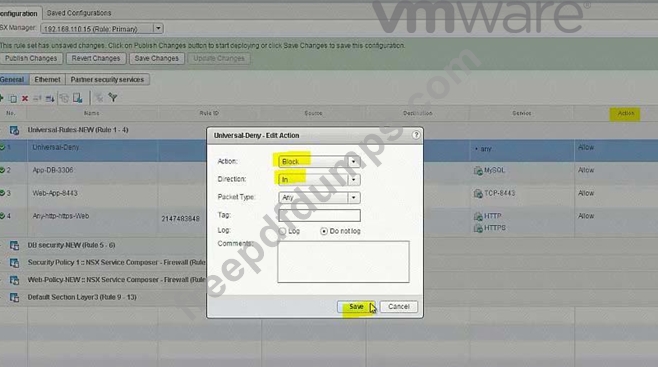

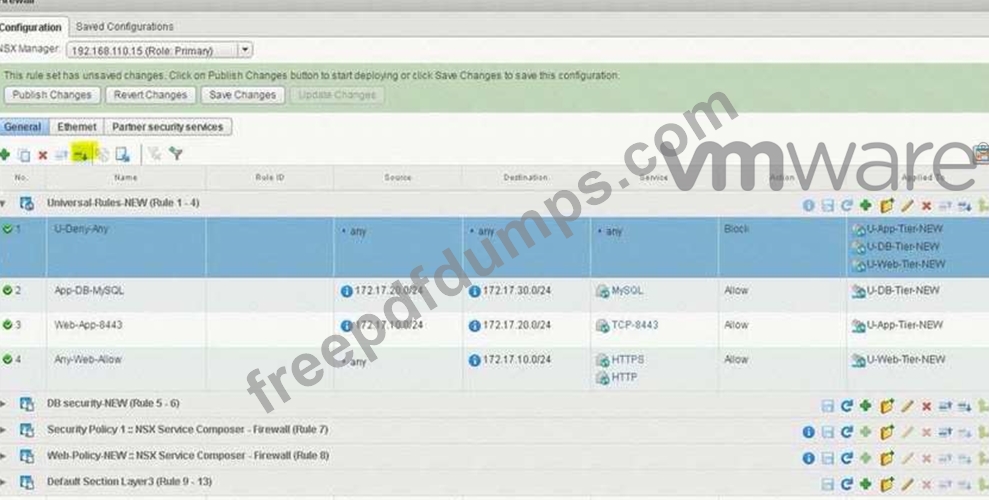

Secure east/west network communication for each of the three tiers allowing only.

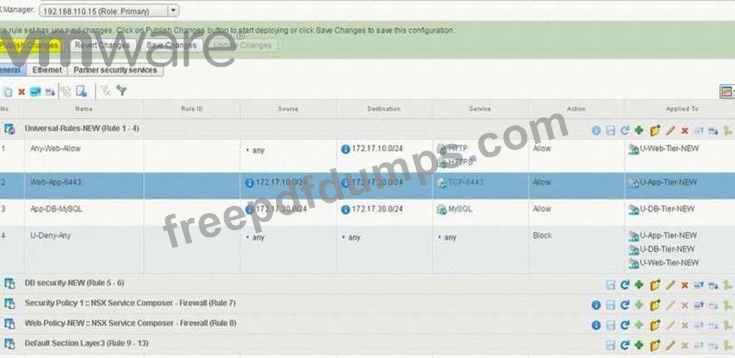

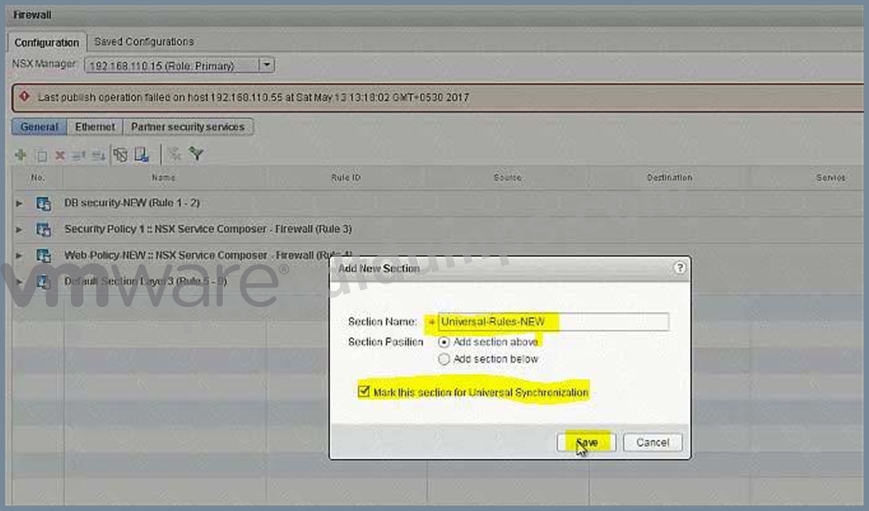

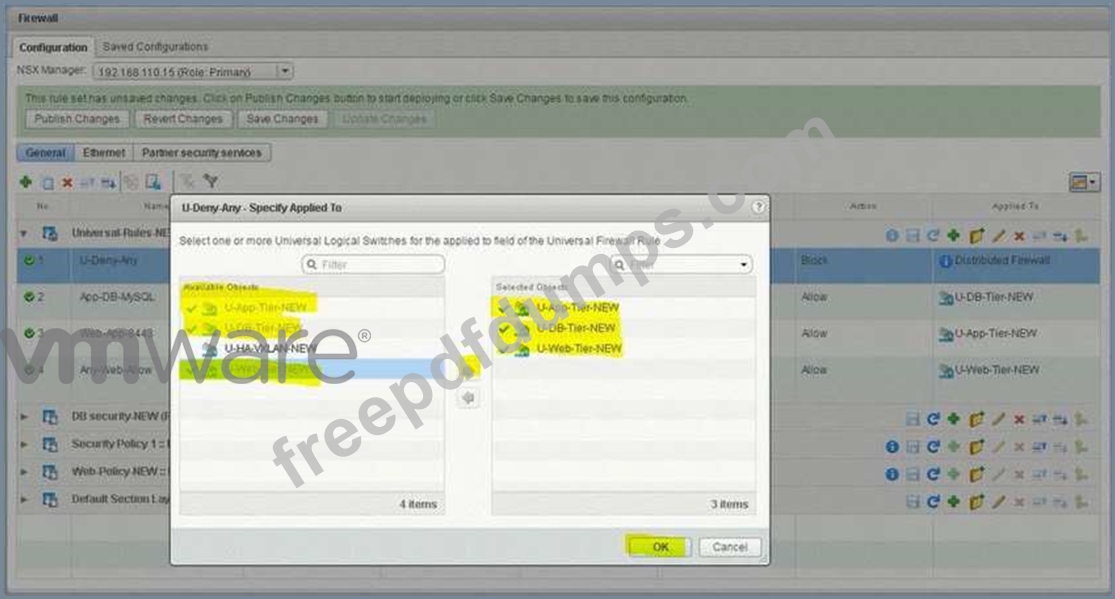

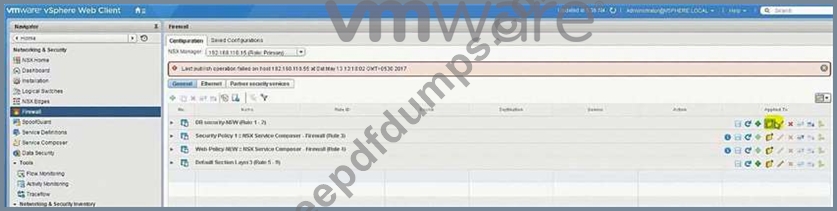

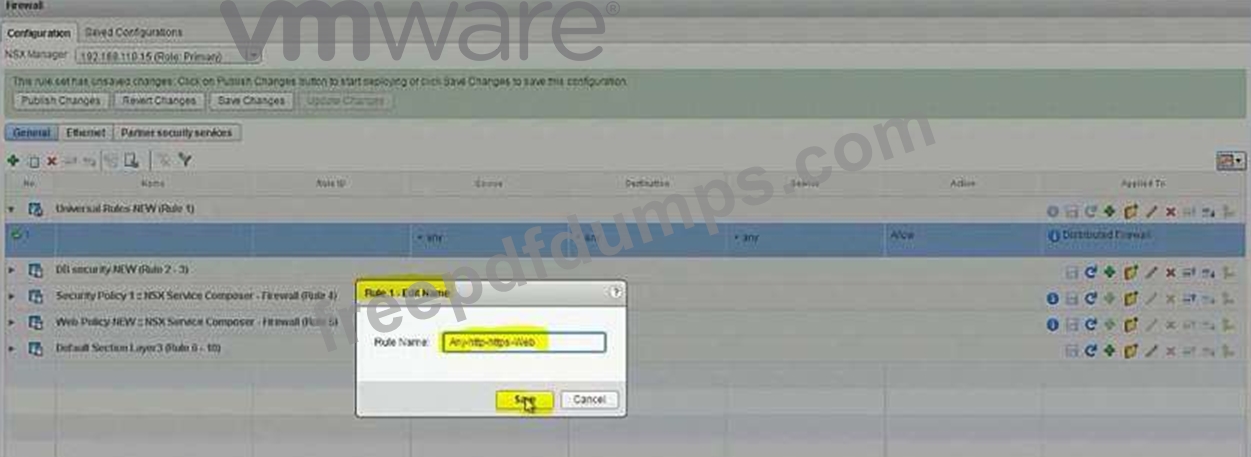

Firewall Rule section Name: Universal-Rules-NEW

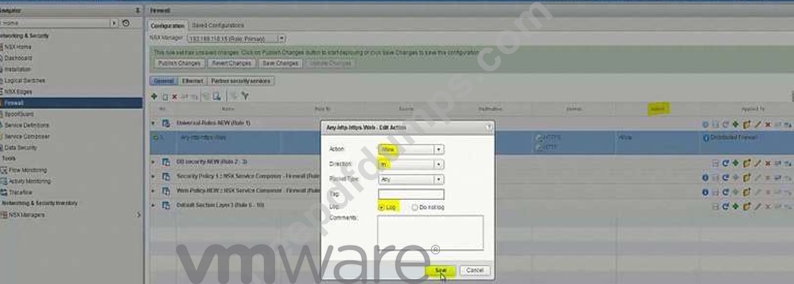

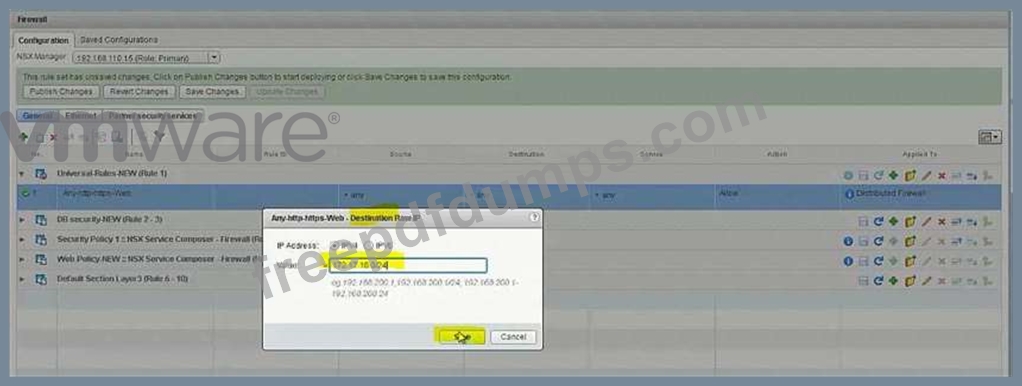

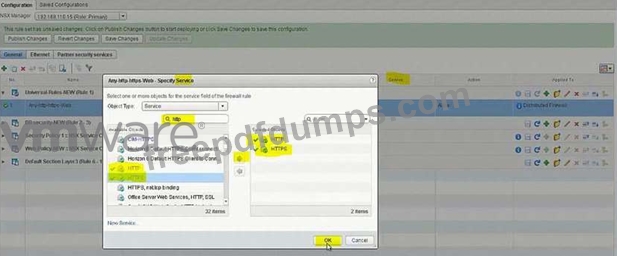

Web Tier: any source address incoming on TCP port 80 and 443

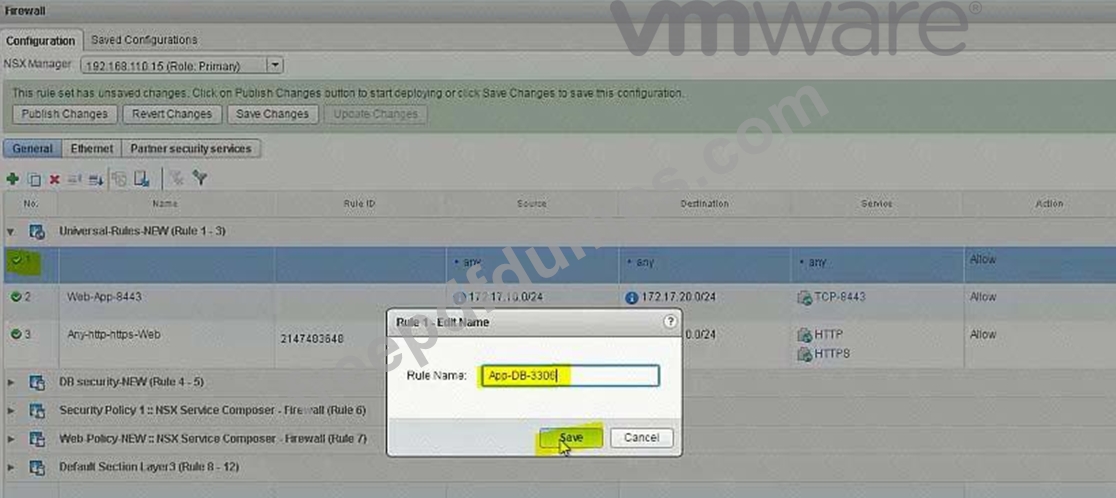

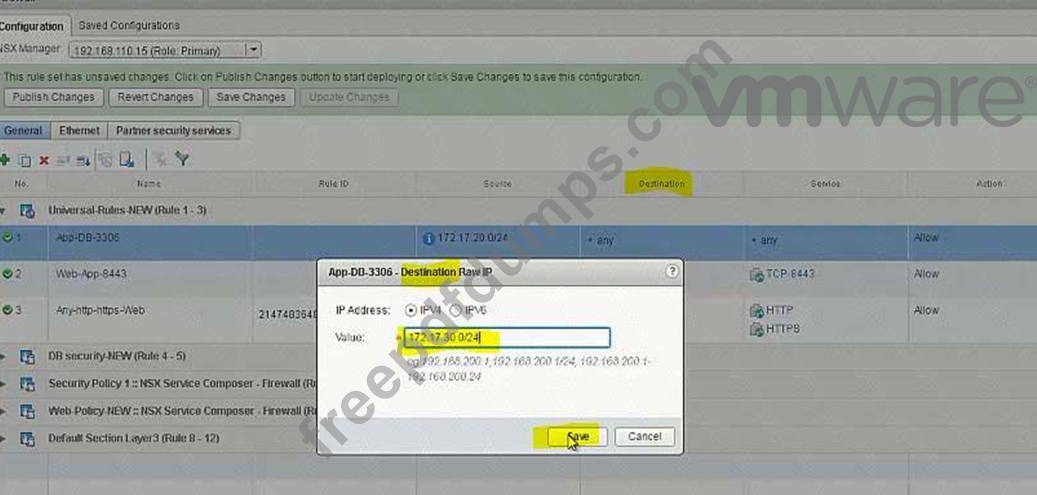

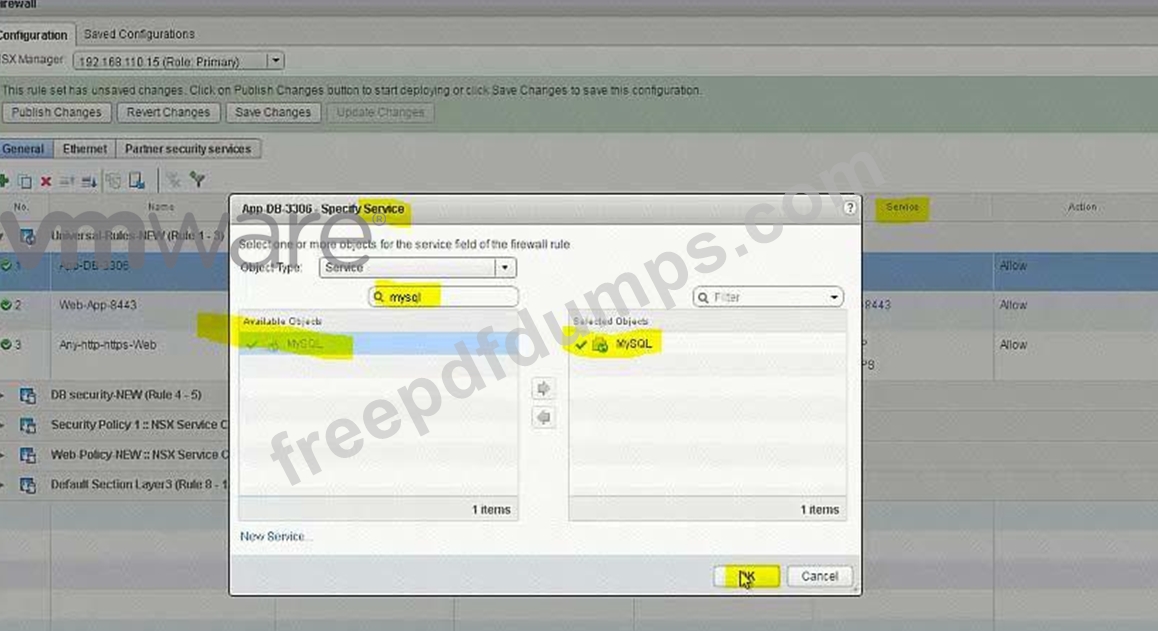

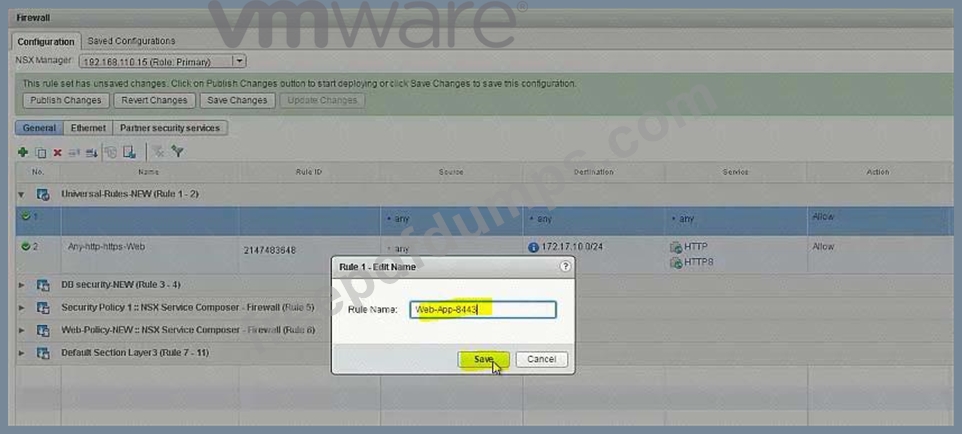

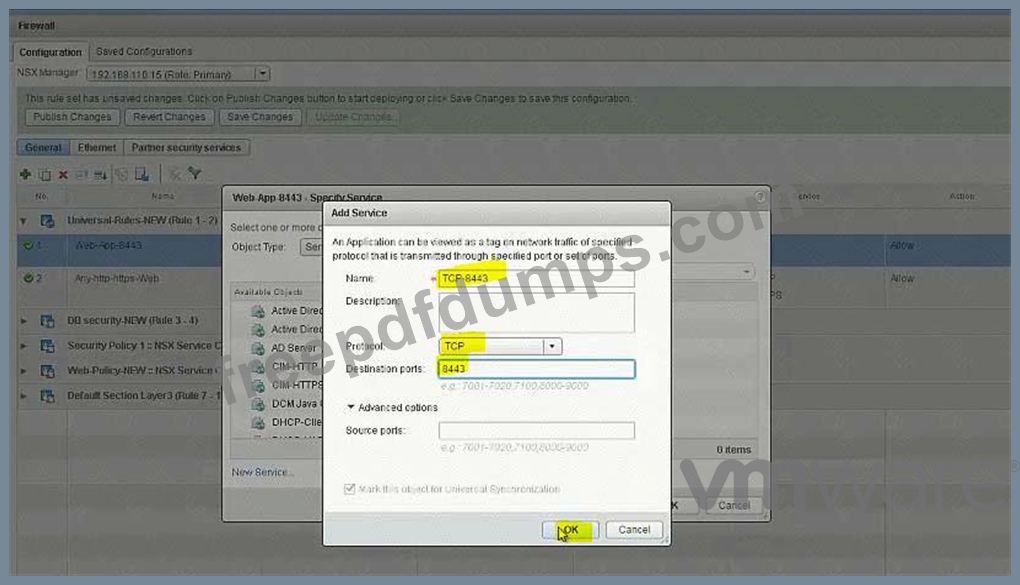

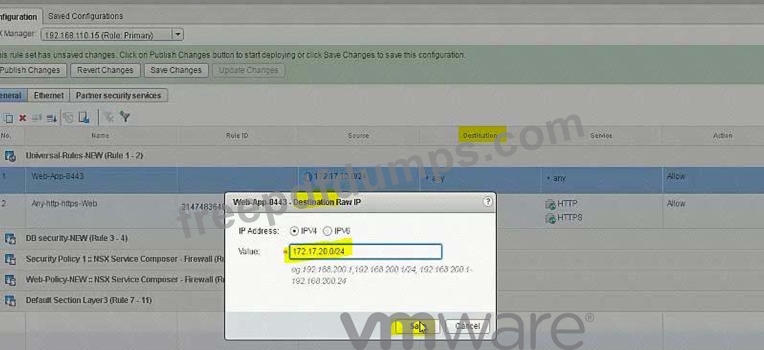

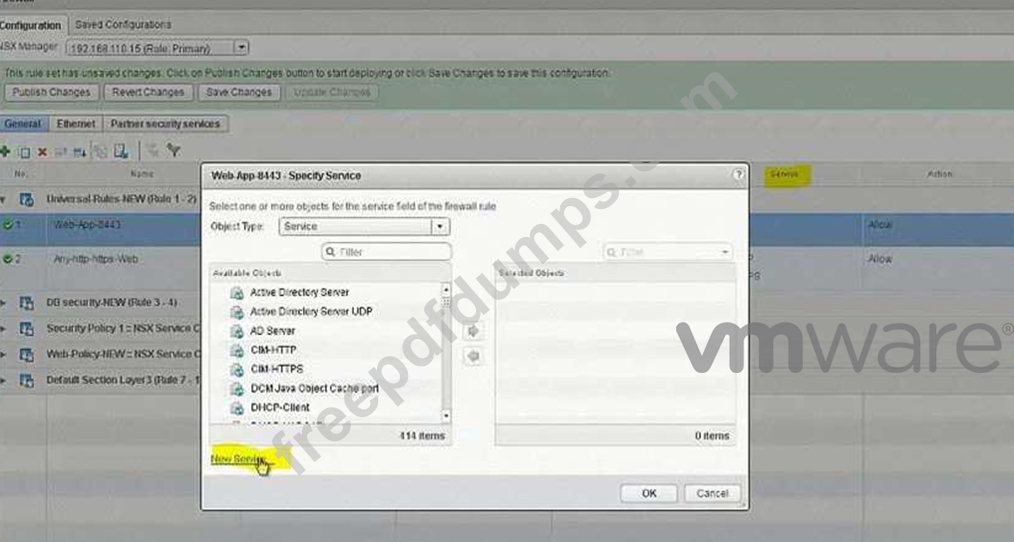

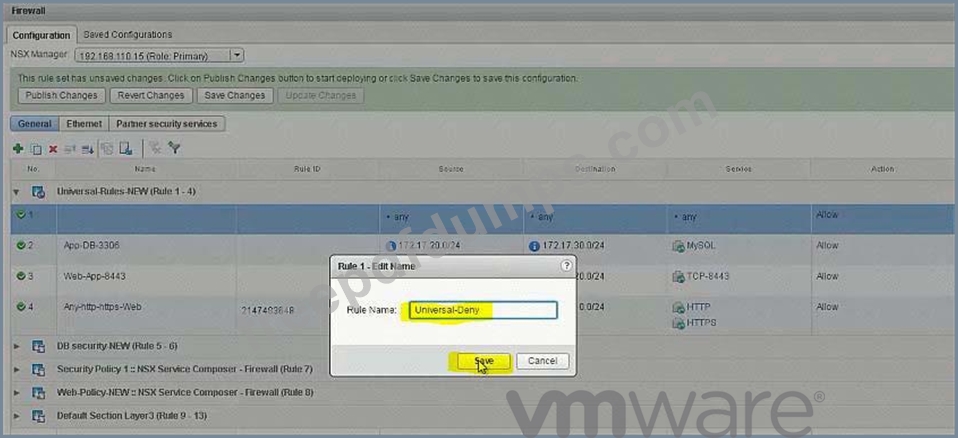

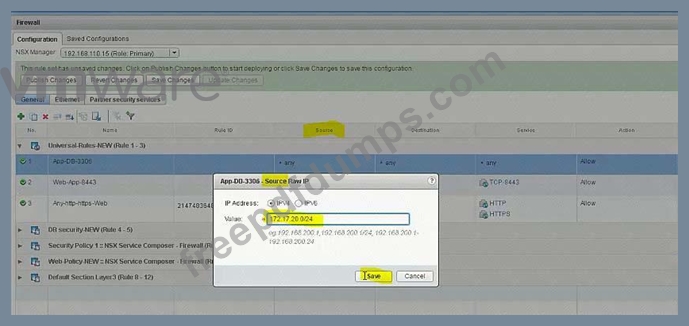

Application Tier: access from the web tier on the incoming TCP port 8443 Database Tier: access from the application tier on the incoming TCP port 3306 Traffic that does not meet the above requirements should be blocked.
NOTE:

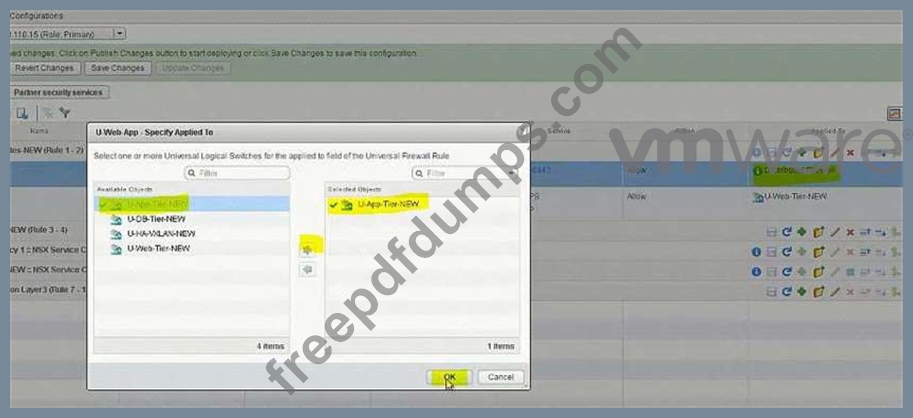

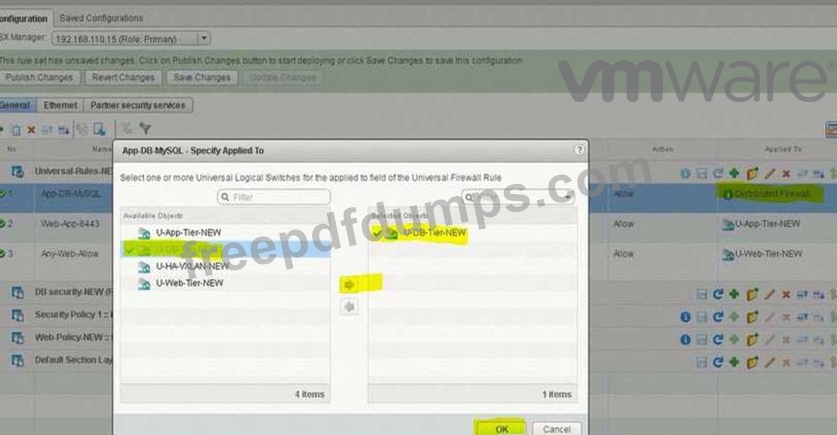

This rule must only affect the universal tiers.
HOL LAB for Practice:
See the explanation part for complete solution.

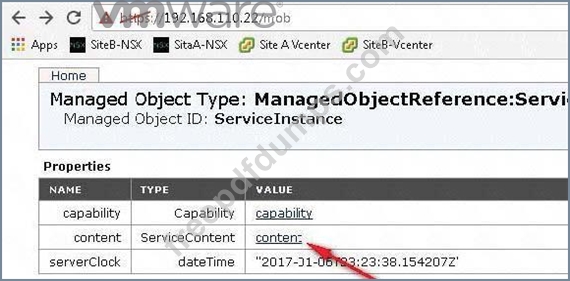

You have been tasked with modifying an existing NSX API call to capture flow information for an organization. The existing API call is located on the ControlCenter desktop in a file name flowapi.txt.

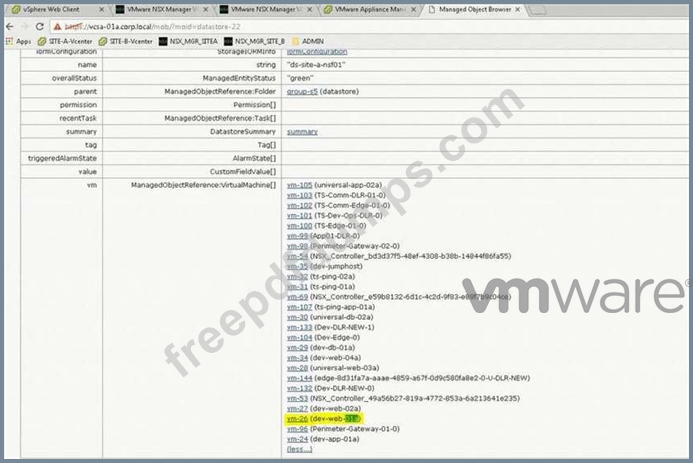

The API call should be modified to collect Layer3 flow statistics between the dev-web-01a and the ControlCenter virtual machine.
Requirements:
vCenter: vcsa01a.corp.local
Credential: [email protected] / VMware1!
File location: flowapi.txt on the desktop of ControlCenter.
Modify and Save the existing API call to capture the requested information.

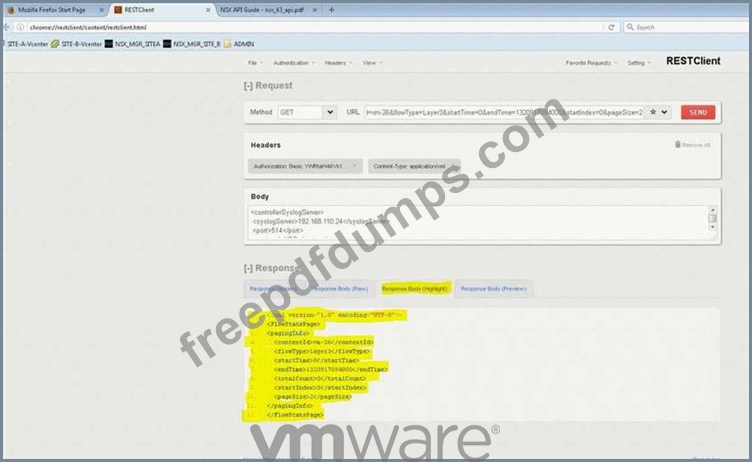

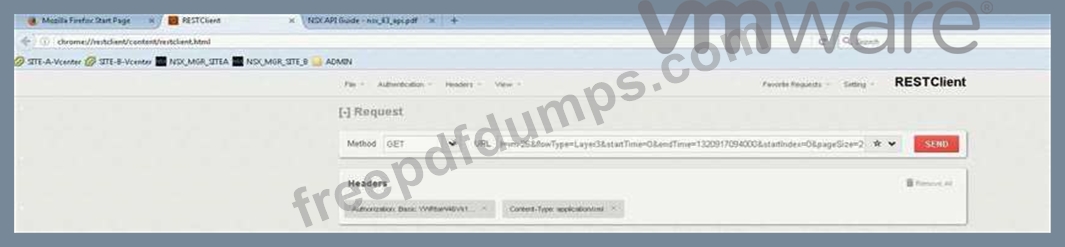

A REST Client has been added to Chrome and Firefox for this exercise.

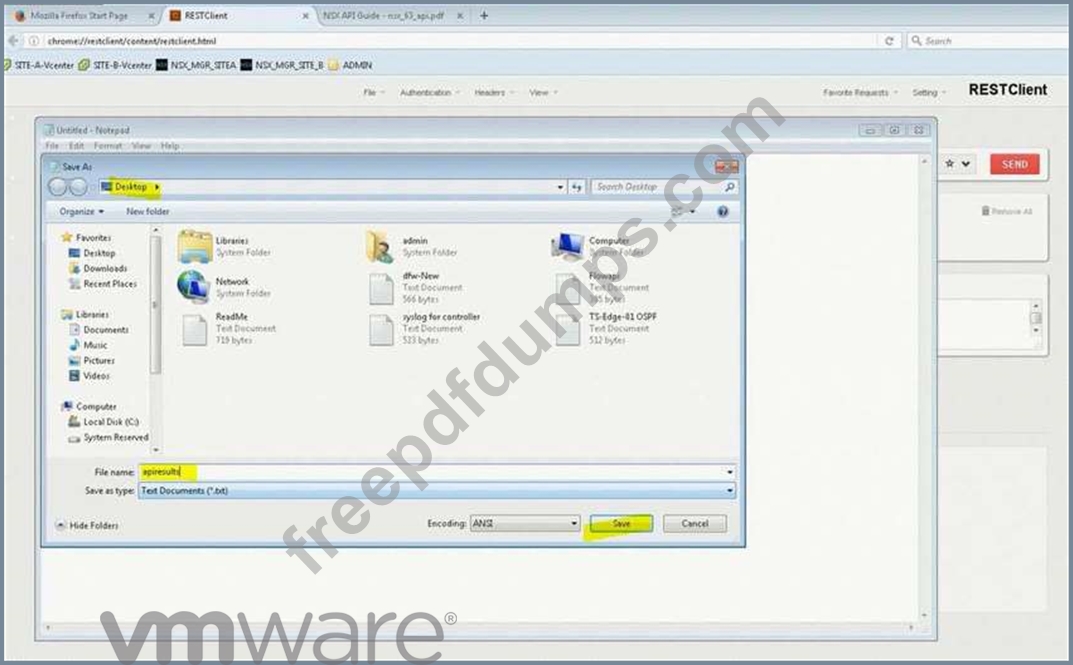

Output the Response Body to a text file called apiresults.txt on the desktop of ControlCenter.
******************flowapi.txt***********************
https://<nsxmgr-ip>/api/2.1/app/flow/flowstats?contextId=datacenter-21&flowType=TCP_UDP&startTime
=0&endTime=
https://192.168.110.15/api/2.1/app/flow/flowstats?contextId=vm-26&flowType=Layer3&startTime=0&endT ime=1320917094000&
******************flowapi.txt***********************
HOL LAB for Practice:
See the explanation part for complete solution.

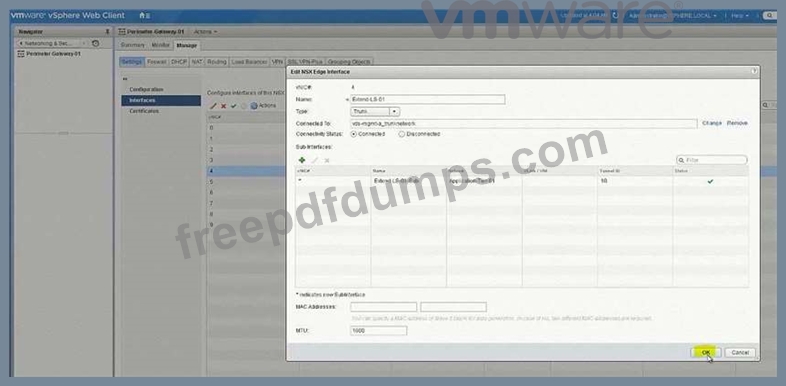

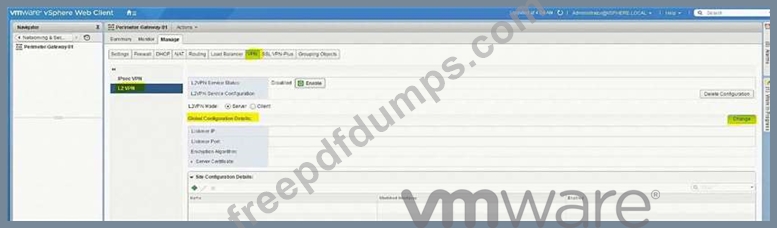

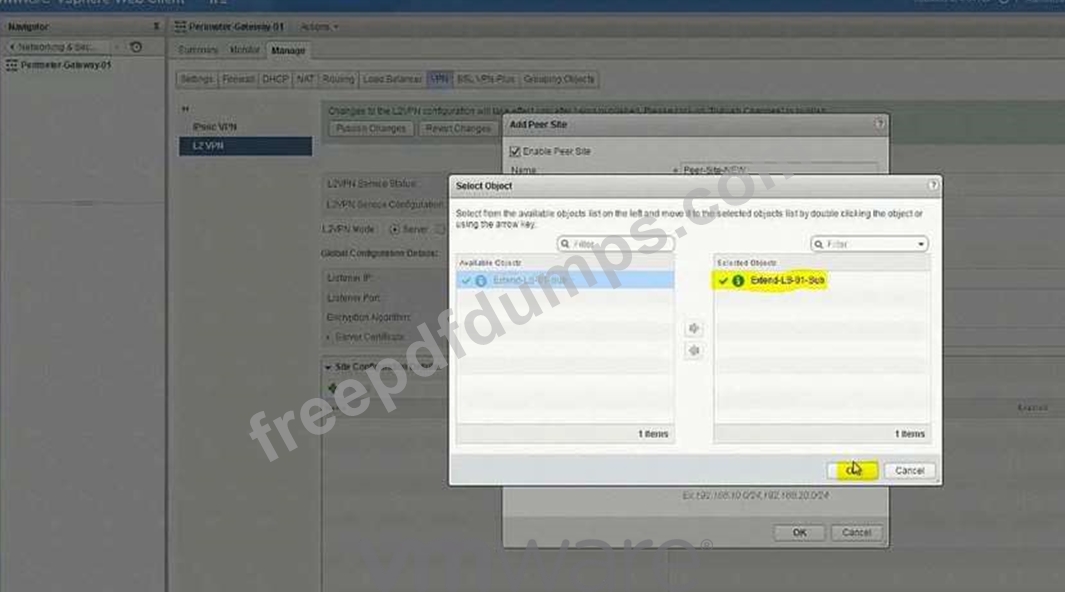

Configure a solution that extends an IP subnet between two data centers. The solution must ensure secure communication between two data centers. A standalone Edge Appliance has already been deployed and preconfigured in Site-B on the Compute Cluster.
Requirements:
vCenter: vcsa-01a.corp.local
Credentials: [email protected] / VMware1!
HQ Site Information:

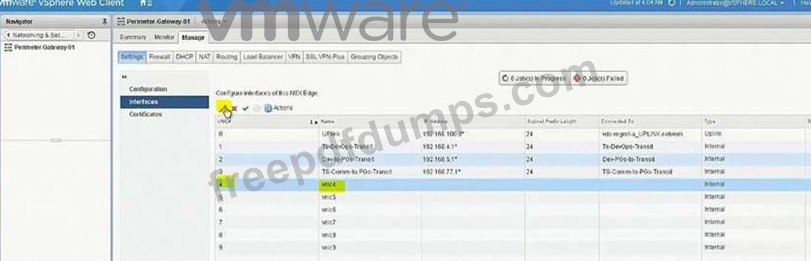

Edge: Preimeter-Gateway-01

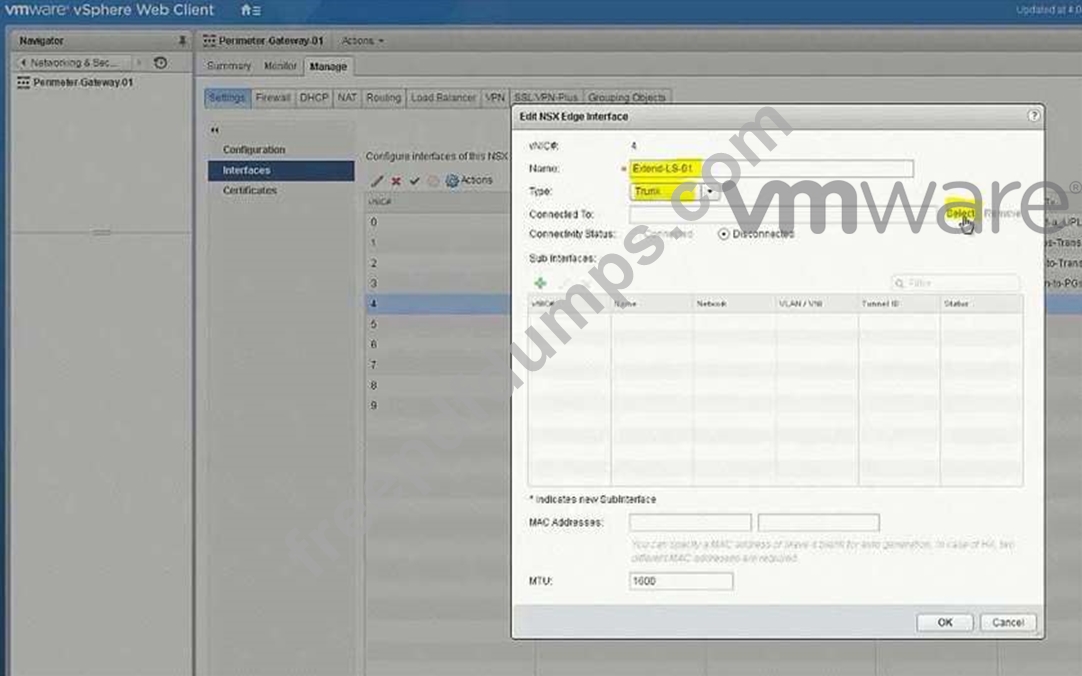

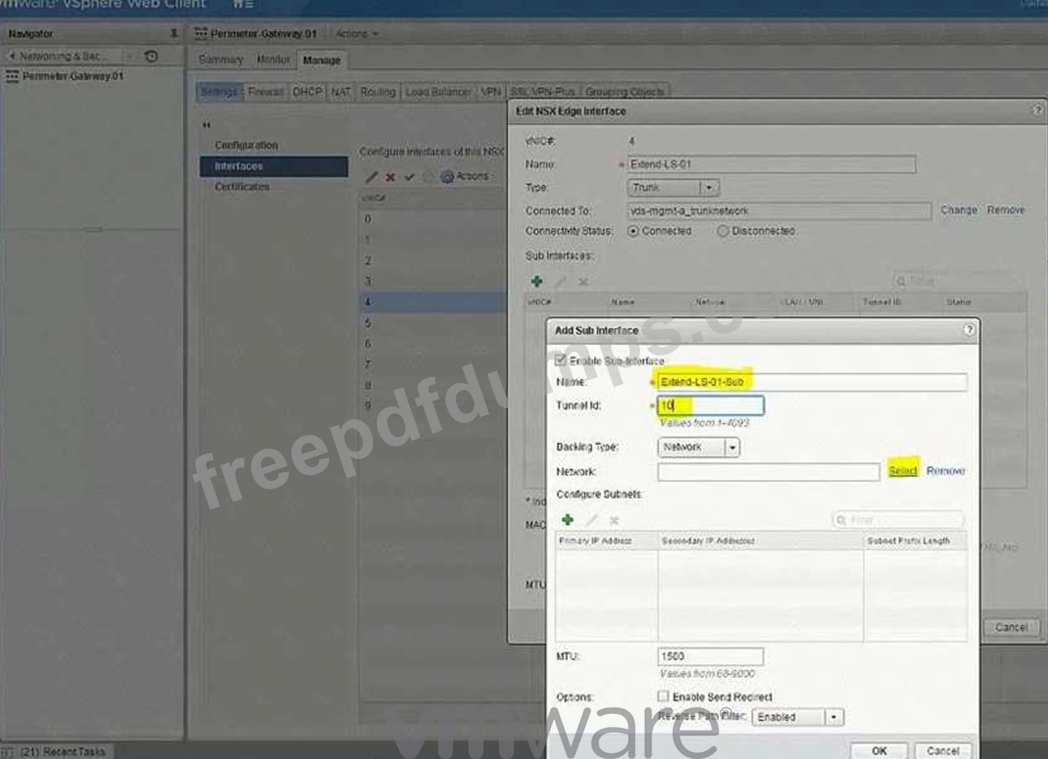

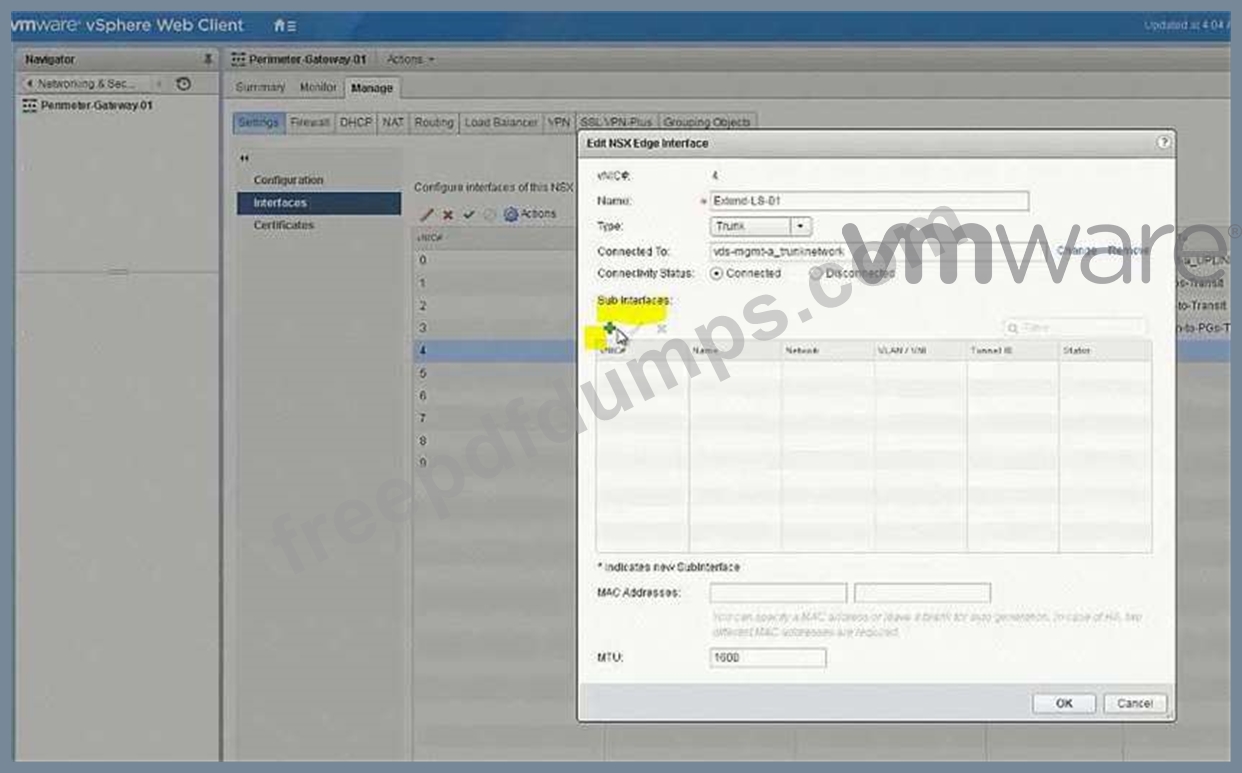

Logical Segment: Extend-LS-01

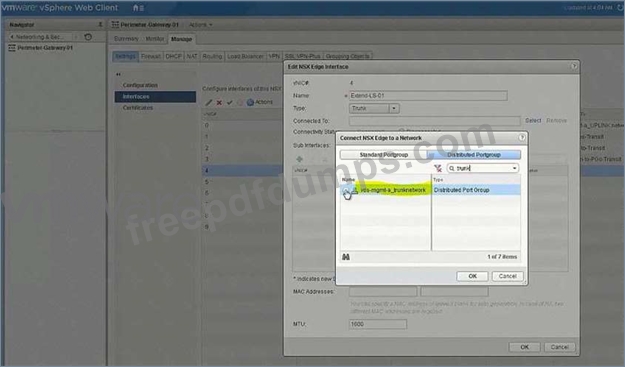

Connected to: vds-mgt-a_Trunk_Network

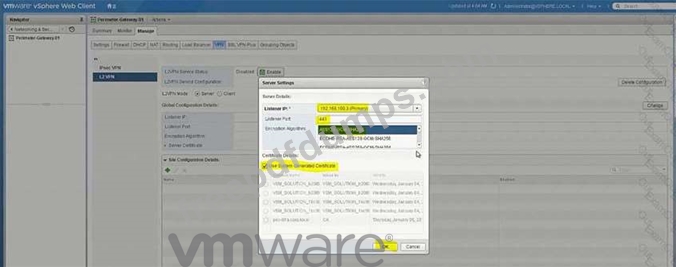

VPN Server settings: 192.168.100.3
Use the system generated certificate.
Preconfigured Standalone Edge Appliance: NSX l2vpn
Edge: 192.168.200.5

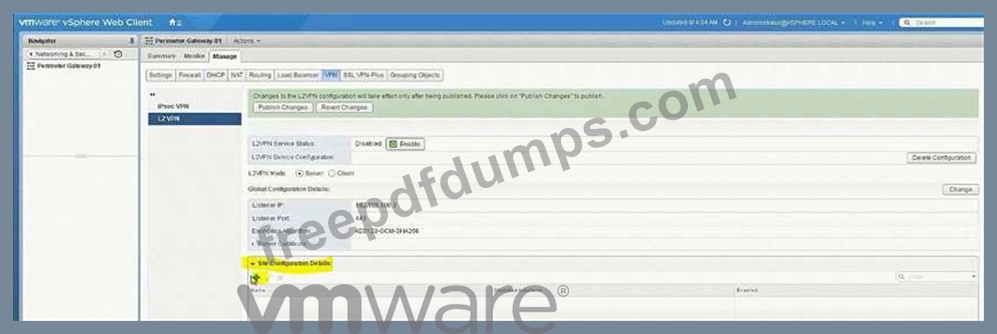

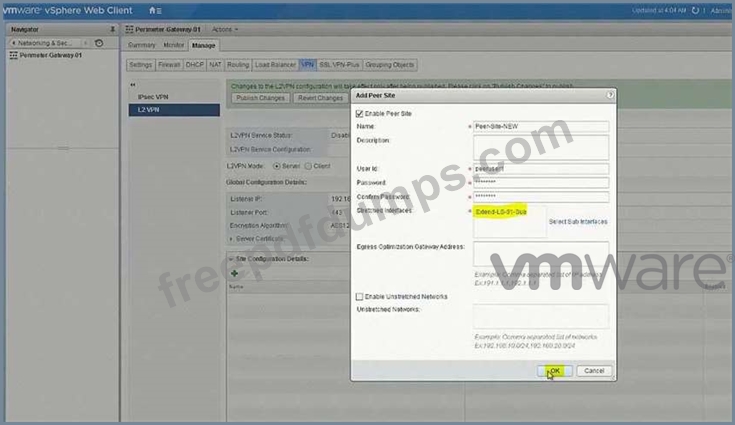

L2VPN Server Information:

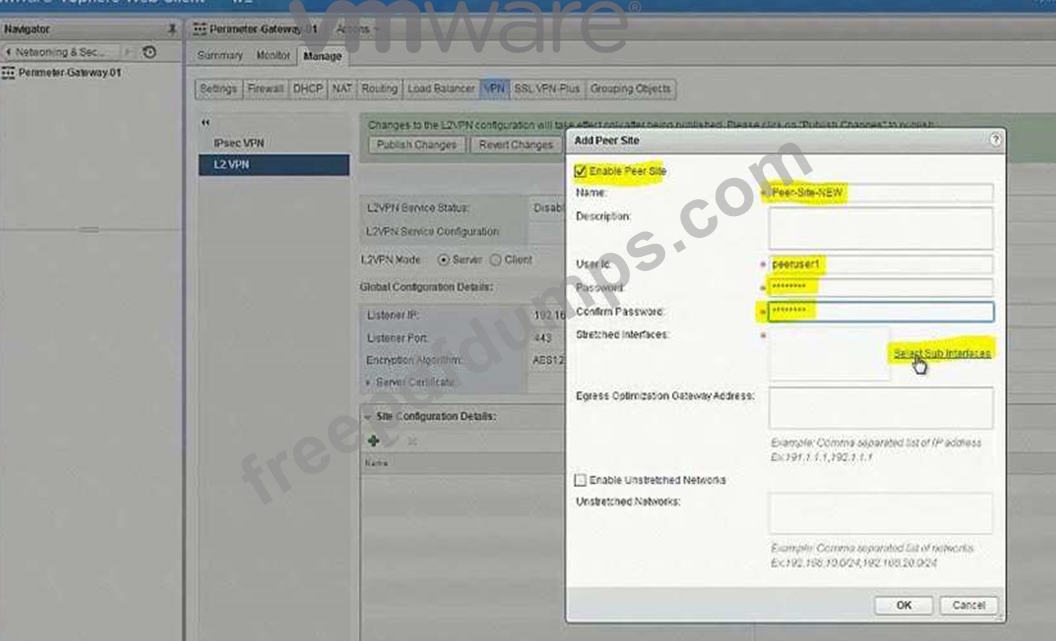

Name: Peer-Site-NEW

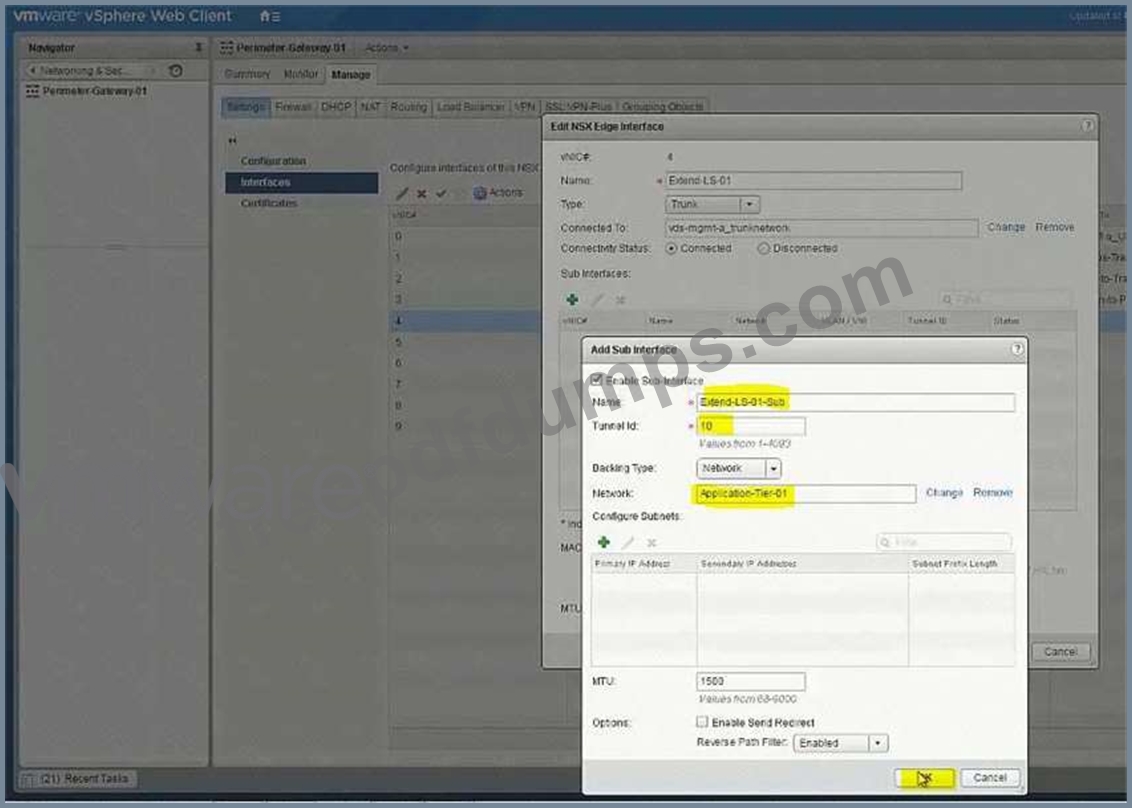

Trunk ID = 10
User ID = peeruser1
Password = VMware1!
Encryption = AES256-SHA
The solution must ensure secure communication between the data centers.
NOTE:

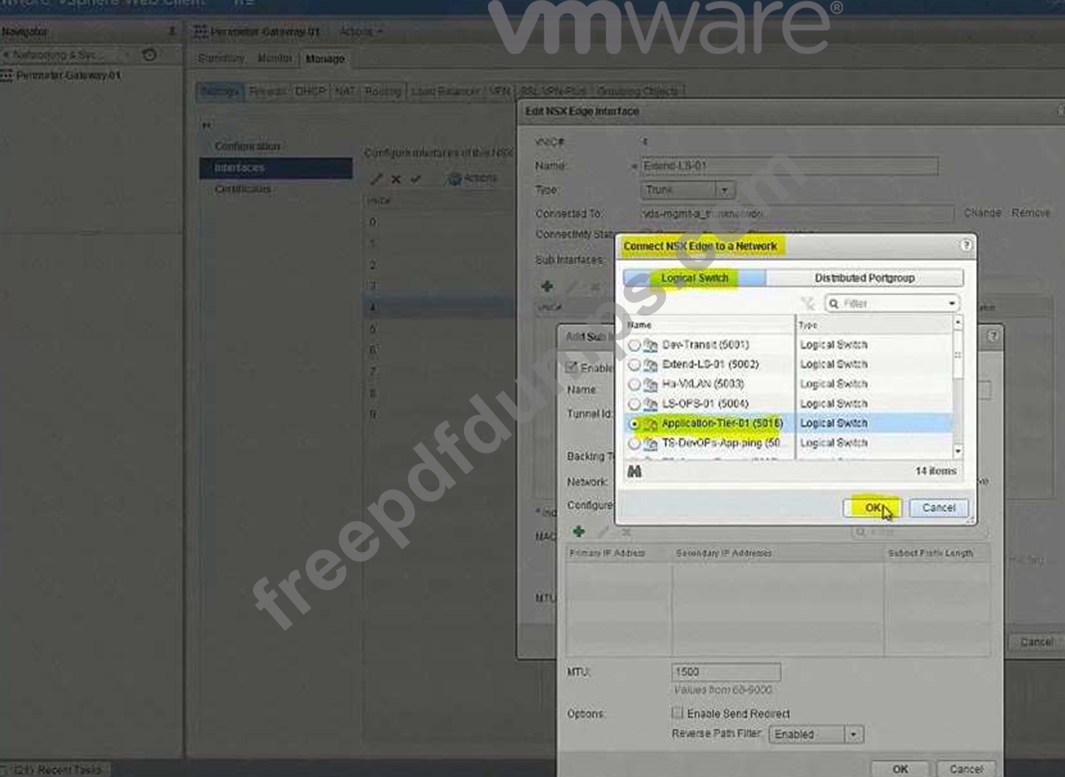

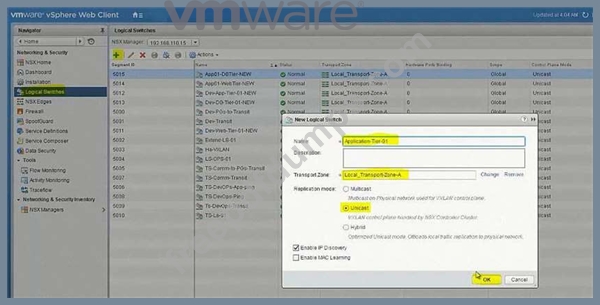

No virtual machines are attached to the Logical switch Application-Tier-01, so there is no need to test communication across the tunnel.

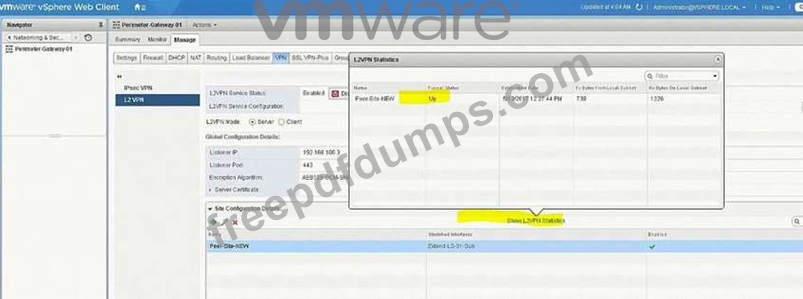

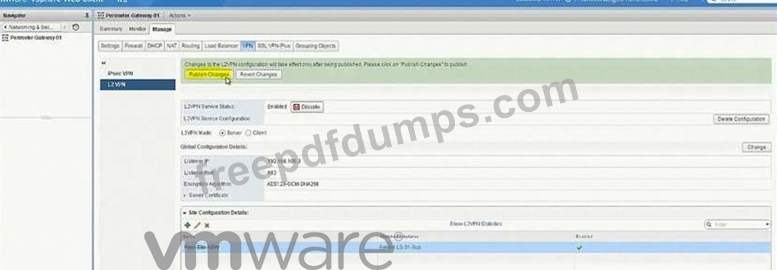

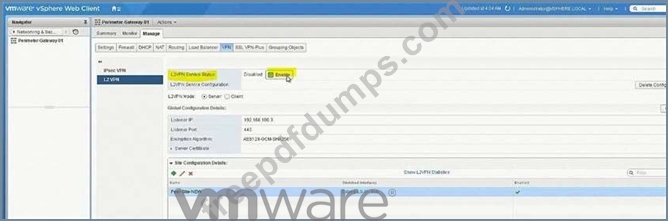

Ensure that L2VPN server statistics shows Tunnel status of UP.
HOL LAB for Practice:
L2VPN and other questions 7, 8, 9
See the explanation part for complete solution.
