Online Access Free Alcatel-Lucent.4A0-106.v2021-09-17.q119 Practice Test (Page 18)

4A0-106 Exam Question 81

Click the exhibit.

Based on the VPRN aggregate route configuration, which routes are advertised to CE2?

A.172.12.10.0/24, 172.12.20.0/24 and 172.0.0.0/16

B.172.12.10.0/24 and 172.12.20.0/24

C.172.0.0.0/16 only

D.172.12.0.0/16 only

4A0-106 Exam Question 82

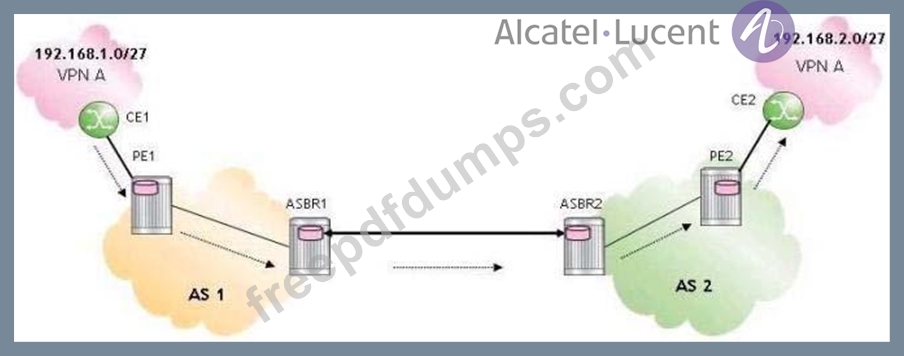

Click the exhibit.

For the inter-AS model A VPRN. BGP is used as the PE-CE routing protocol. Which of the following statements about the control plane operation is TRUE?

A.ASBR2 accepts a VPN-IPv4 update from ASBR1, then sends the update to PE2 via MP-BGP.

B.ASBR1 transforms an IPv4 update for prefix 192.168.1.0/27 to a VPN-IPv4 route; allocates VPN label V1 and sends the update to ASBR2.

C.ASBR1 sends an IPv4 update for prefix 192.168.1.0/27 to ASBR2.

D.PE1 sends an IPv4 update for prefix 192.168.1.0/27 via MP-BGP to ASBR1.

4A0-106 Exam Question 83

Which of the following about the Route Target is TRUE?

A.The Route Target is added to an IPv4 route to create the VPN-IPv4 route.

B.The Route Target is an extended community string that identifies VPN membership.

C.A route can have only one Route Target.

D.The Route Target is a 64-bit value added to customer prefixes to make them unique.

4A0-106 Exam Question 84

Click the exhibit.

A Carrier Supporting Carrier (CSC) VPRN is configured for a customer carrier who is an Internet Service Provider (ISP). If CE1 sends an IP packet to 192.60.100.1, which of the following is FALSE?

A.CSC-CE2 pops the BGP label and pushes an LDP transport label.

B.CSC-PE1 pops the BGP label and pushes two labels: a VPN label and an MPLS transport label.

C.CSC-PE2 pops the MPLS transport label and pushes a BGP label.

D.PE1 pushes an LDP transport label.

4A0-106 Exam Question 85

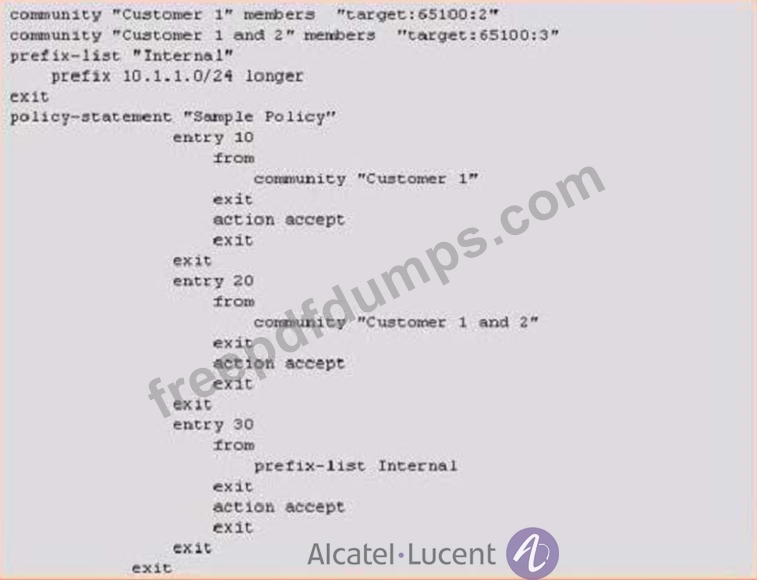

Click the exhibit.

The policy shown is configured on an Alcatel-Lucent 7750 SR to implement an extranet VPRN between the main sites of two separate VPRNs. Route target "target:65100:2" is used for Customer 1 routes, and route target "target:65100:3" is used for Extranet routes. How should this policy be applied?

A.The policy should be applied as an export policy on the PE connected to the main site of Customer 1.

B.The policy should be applied as an import policy on all the PEs connected to the sites of Customer 1.

C.The policy should be applied as an export policy on all the PEs connected to the sites of Customer 1.

D.The policy should be applied as an import policy on the PE connected to the main site of Customer 1.
