You are setting up a drawing layout.
You need to rotate the viewport viewing angle by 90 degrees without rotating the viewport.
What should you do next?

• A.Select the viewport that you want to rotate, and then use the Rotate command.
• B.Activate the viewport that you want to. Start the Dview command and use the Camera option.
• C.Activate the viewport that you want to rotate. Start the Dview command and use the Twist option.
• D.Select the viewport that you want to rotate, and then use the UCS command with the Z Axis option.

Refer to exhibit.
Exhibit 1:

Exhibit 2:

in Exhibit 1, a CAD designer is drawing a line, but the dimension input box to specify its length is missing Which function should be enabled to display the dimension input box shown in Exhibit 2?

• A.Dynamic Input
• B.Polar Tracking
• C.Object Snap Tracking
• D.Orthomode

In model space (MODEL), a room label text height is set to 300 mm in the designated text style.
Which viewport scale should you apply to a layout viewport (PAPER) so that the room label text height will display as 3 mm when plotting the drawing?

• A.A custom viewport scale
• B.1:100
• C.100:1
• D.1:1

Refer to the exhibit.

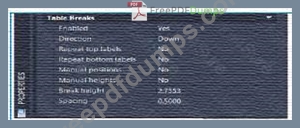

A CAD designer modified an existing window schedule table into two sections by using table breaks.
Which combination of properties were used to modify the table to display as shown in the exhibit.

• A.
• B.
• C.
• D.

Refer to exhibit.

The sheet layout shown includes tables arid notes on the tight side of the page.
Which option of the MVIEW command will create a viewport in the shape of the blue-hatched area?

• A.Polygonal
• B.NAmed
• C.Shadeplot
• D.Fit
