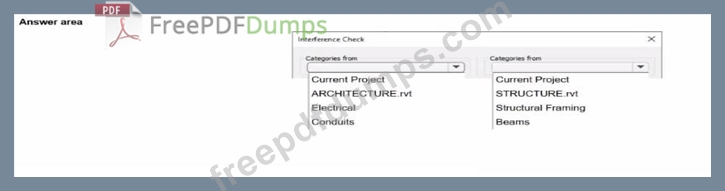

An electrical designer needs to check for Interferences between conduit in the host model and beams in a linked structure model in the Interference Check dialog, select the items that the designer must select to perform the interference check. (Select two.)

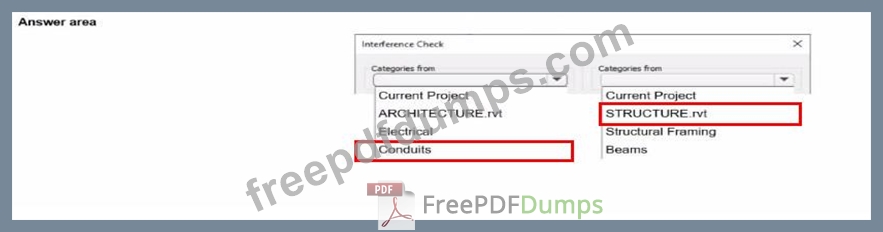

Correct Answer:

A project is almost at the end of design. The electrical designer needs to make sure electrical loads as reported by load summaries accurately reflect all modeled loads. How should a designer view a list of all modeled electrical connectors that are not connected to a circuit?

• A.Use the command Show Disconnects.
• B.Create a circuit schedule.
• C.Use the command Check Circuits.
• D.Review the System Browser.

An electrical designer is creating an electrical equipment family which will host conduit that can be modeled from any point on a specific side of the equipment. How should this be accomplished?

• A.Select the conduit connector and edit the connector dimensions
• B.Click Conduit Connector, click Individual Connector, and then select the desired reference plane.
• C.Click Conduit Connector click Surface Connector, and then select the desired face.
• D.Select the conduit connector and edit the connector type in the Properties palette

A project has 24 branch panel schedules that all need the same formatting changes. What should the electrical designer do?

• A.Select all panel schedules in the Project Browser, right-click and choose Apply Template Properties, and select the desired template.
• B.Use the Manage Templates command to edit and apply the template changes to all panel schedules.
• C.Assign the desired view template to the panel schedules in the Properties panel.
• D.Edit a panel schedule, right-click and choose Duplicate View, and duplicate changes lo desired panel schedules.

Which feature shows which user created 3n element?

• A.Show History
• B.Worksharing display modes
• C.Gray Inactive Worksets
• D.Worksets dialog
