Explanation
If you are administering the AE Server for TSAPI, JTAPI, DMCC with Call Control, Telephony Web Service, or an AE Services integration (Microsoft or IBM Sametime), you must administer a CTI link from Communication Manager to AE Services.
Follow these steps from a Communication Manager SAT to administer a CTI link type ADJ-IP.
Procedure
1. Type add cti-link <link number>, for example add cti-link 5.
2. Complete the CTI LINK form as follows:
a. In the Extension field, type <station extension>, for example 70001.
b. In the Type field, type ADJ-IP.
c. In the Name field, type <name of AE Server>, for example aeserver1.
References: Avaya Aura Application Enablement Services Administration and Maintenance, page 30 Guide
https://downloads.avaya.com/css/P8/documents/100171737

Explanation

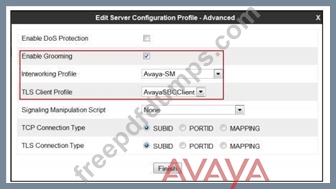

Example:

References: Configuring Remote Workers with Avaya Session Border Controller for Enterprise Rel. 6.2, Avaya Aura Communication Manager Rel. 6.3 and Avaya Aura Session Managers Rel. 6.3 - Issue 1.0, page 36
https://downloads.avaya.com/css/P8/documents/100183254

Explanation
The SIP one-X Communicator needs to be configured to use a specific protocol and port when registering to Session Manager.Enter the IP address of the Session Manager virtual SM-100 card for Session Manager SIP Element.
References: Application Notes for Configuring Avaya AuraTM Presence
Services 6.0 with Avaya AuraTM Session Manager 6.0, and Avaya AuraTM Communication Manager for one-XTM Communicator clients as part of Avaya Unified Communication Mobile Worker Solution - Issue
1.0, page 30
https://www.devconnectprogram.com/fileMedia/download/dba93412-03c6-4fda-8d6a-280ae2193d6f

Explanation
Adding a switch connection
The procedure include the following steps:
1.From the AE Services Management Console main menu, select Communication Manager Interface > Switch Connections.
2. On the Switch Connections page, in the Add Connection field, type a switch connection name (for example Switch1) For the Secure H323 Connection check box, do one of the following:
* For Communication Manager6.3.6 or later and TLS for the H.323 Signaling Channel (normally associated with FIPS Mode), select the Secure H323 Connection check box.
* For any previous release of Communication Manager without TLS for the H.323 Signaling Channel, uncheck the Secure H323 Connection check box.
Etc.
References: Avaya Aura Application Enablement Services Administration and Maintenance Guide, page 73
https://downloads.avaya.com/css/P8/documents/100171737
