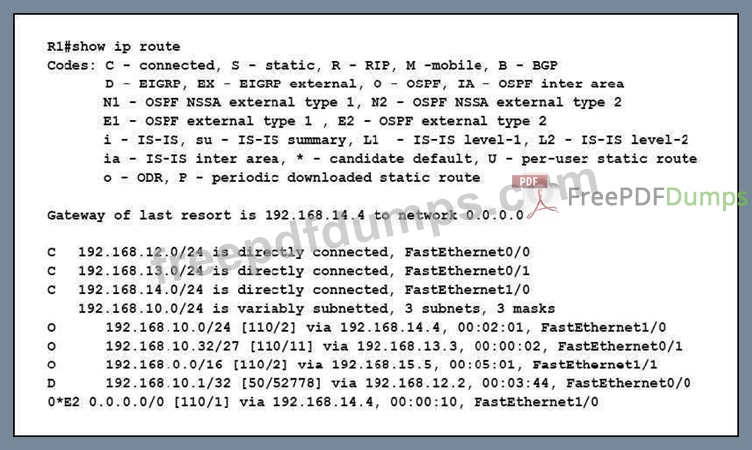

Refer to the exhibit, what is the metric for the router from R1 to 192.168.10.1 ?

• A.90
• B.2
• C.52778
• D.110

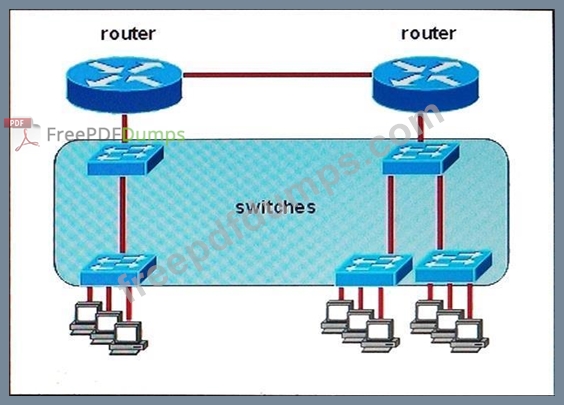

Refer to the exhibit. All devices attached to the network are shown. Which number of collision domains are present in this network?

• A.6
• B.15
• C.9
• D.3
• E.2

Where does a switch maintain DHCP snooping information ?

• A.in the MAC address table
• B.in the DHCP binding database
• C.in the VLAN database
• D.in the CAM table

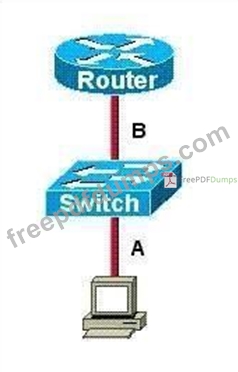

Refer to the exhibit. The two connected ports on the switch are not turning orange or green. What would be the most effective steps to troubleshoot this physical layer problem? (Choose three.)

• A.Reboot all of the devices.
• B.Ensure that cables A and B are straight-through cables.
• C.Ensure the switch has power.
• D.Ensure cable A is plugged into a trunk port.
• E.Reseat all cables.
• F.Ensure that the Ethernet encapsulations match on the interconnected router and switch ports.

The system LED is amber on a Cisco Catalyst 2950 series switch. What does this indicate?

• A.The system is forwarding traffic.
• B.The system is powered up and operational.
• C.The system is sensing excessive collisions.
• D.The system is malfunctioning.
• E.The system is not powered up.
