Online Access Free 300-615 Exam Questions

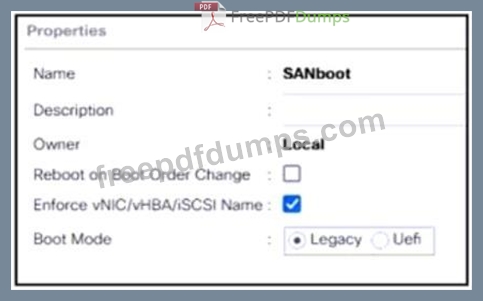

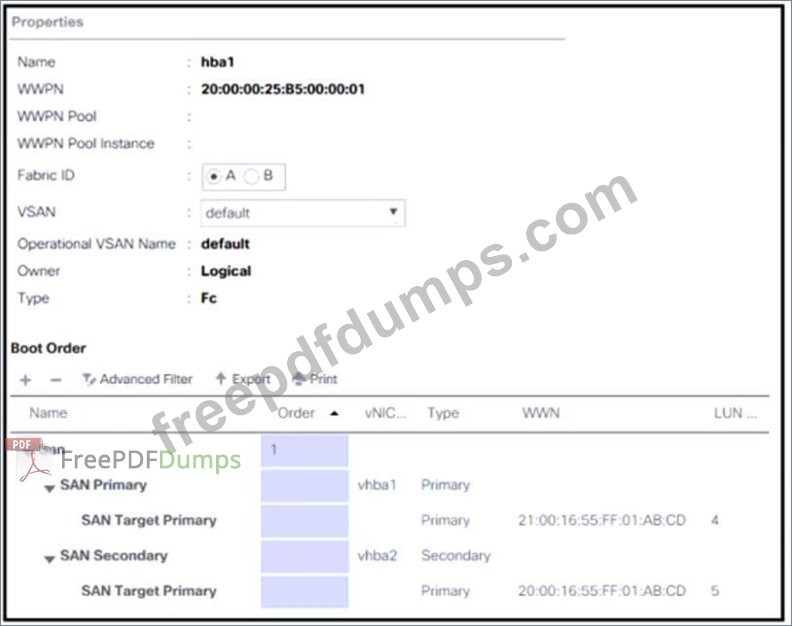

Refer to the exhibit. The Cisco UCS blade server fails to boot from SAN. Which action resolves the issue?

• A.Add a secondary SAN boot target.
• B.Change the VSAN attribute to 1.
• C.Change the HBA name to vhba1.
• D.Set the boot LUN to 0.

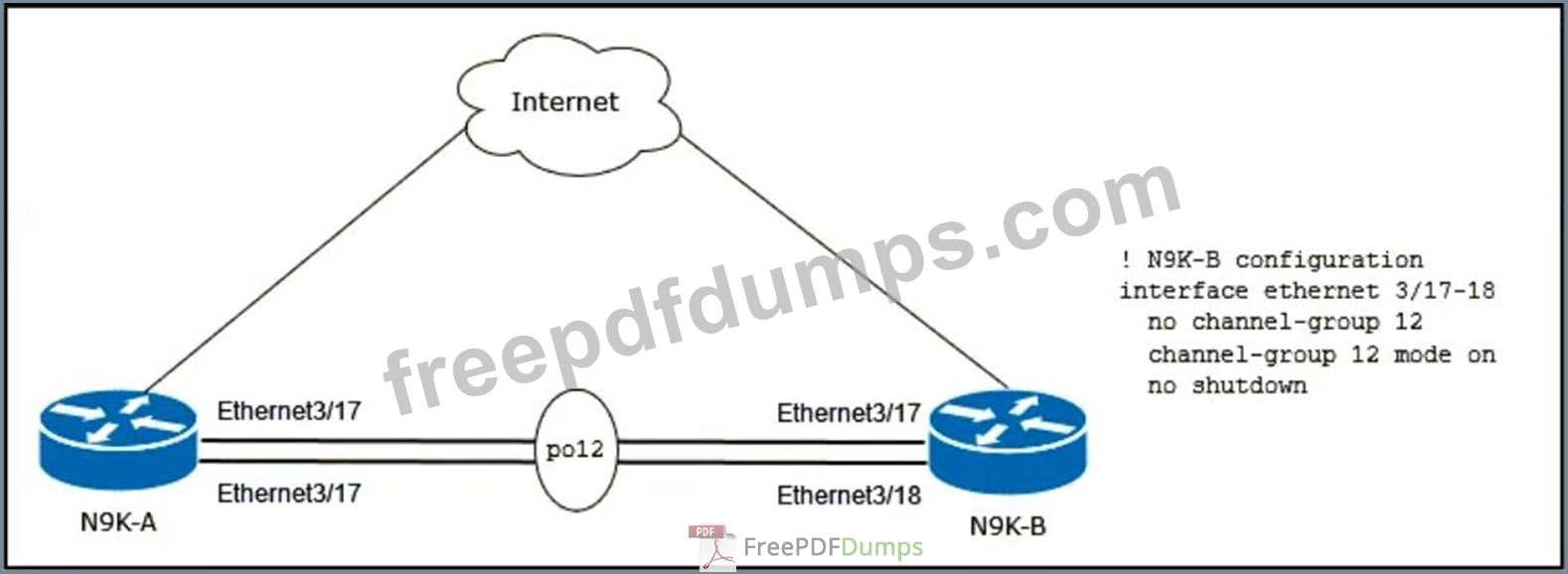

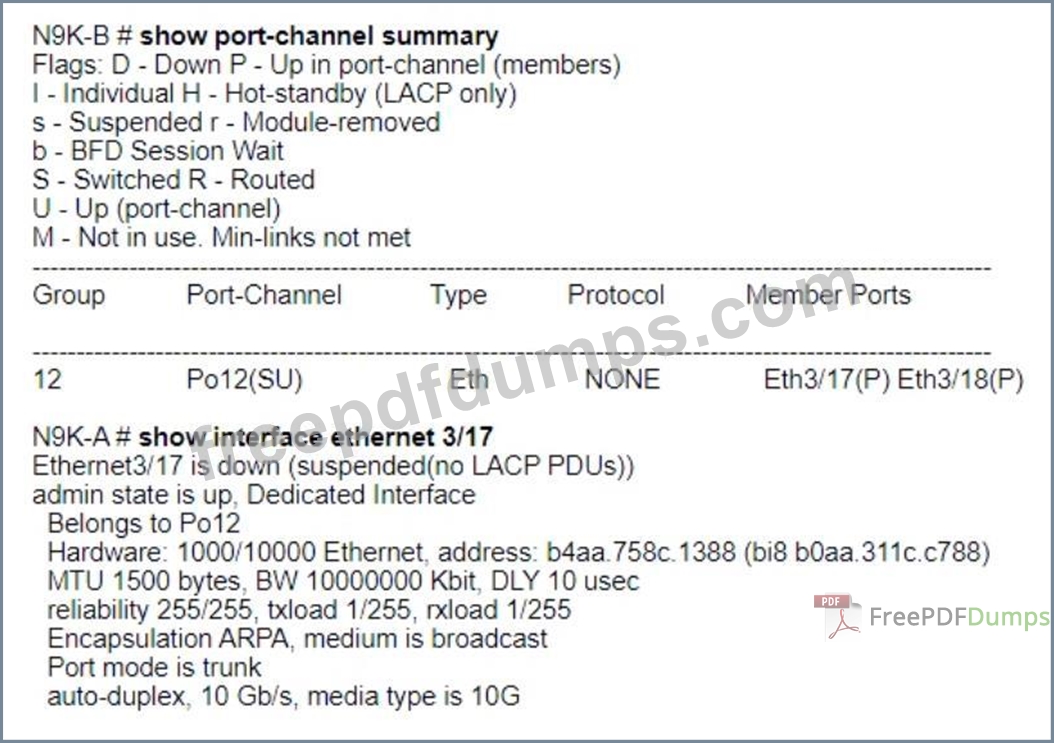

Refer to the exhibit. The LACP port channel fails between N9K-A and N9K-B. Which action resolves the issue?

• A.Add the member interfaces to the port channel on N9K-A.
• B.Configure the port channel to be in static mode on N9K-A.
• C.Add the member interfaces to the port channel on N9K-B.
• D.Configure the port channel to be in active mode on N9K-B.

Which action do you take to recover a Cisco UCS Director password?

• A.Use SSH to log in to the device, and then reset the password.
• B.Mount the Cisco UCS Director image on a KVM, reload the device, and then reset the password.
• C.Press CTRL-Break when the system boots, and then configure the config-register command to ignore the current configuration
• D.Log into the Cisco UCS Director appliance as root, and then run the admin password reset script.

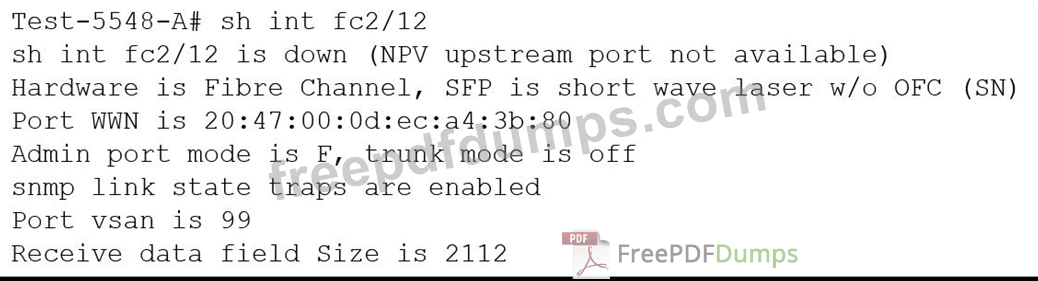

Refer to the exhibit. An engineer configures the server port on a Cisco Nexus 5000 Series Switch.
The switch connects to an NPV edge switch port. The server fails to send the FC traffic to the fabric. Which action resolves the issue?

• A.Match the VSAN membership on both ends of the connection.
• B.Configure the BB_credit buffer on the uplink port.
• C.Enable the NPIV mode on the Cisco Nexus 5000 switch.
• D.Replace the SFP in slot fc2/12.

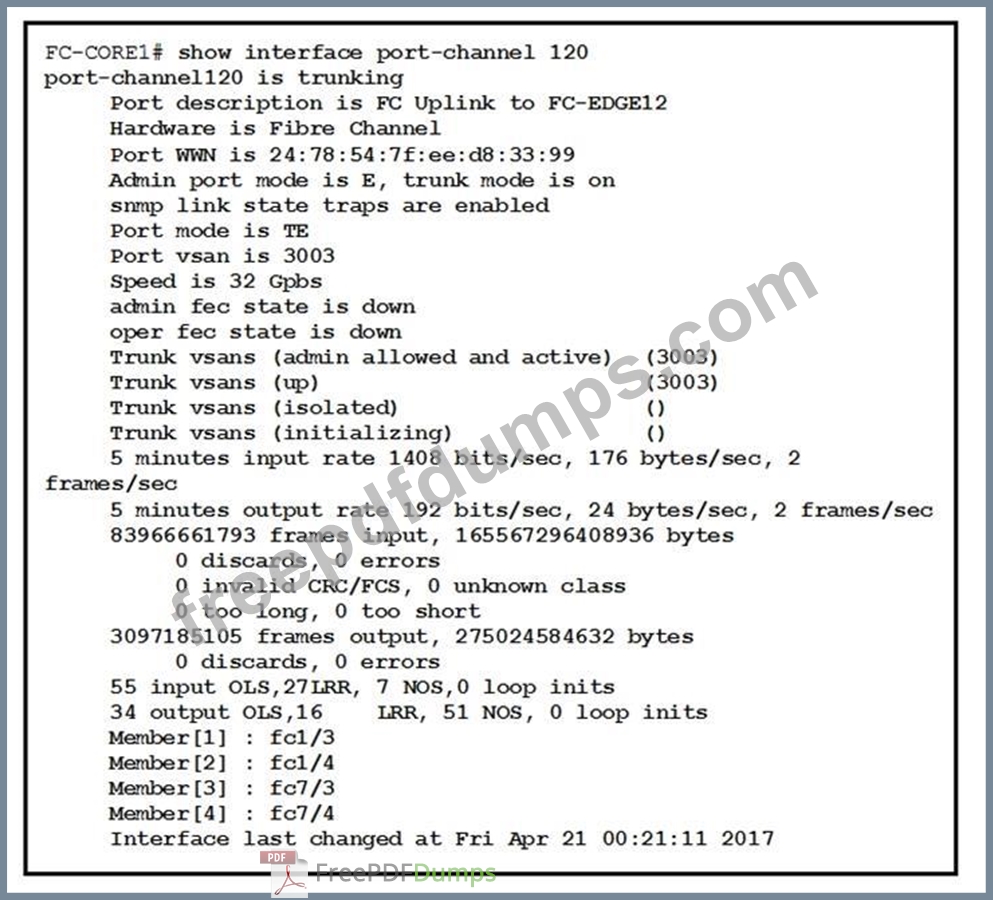

Refer to the exhibit. The FC-CORE2 switch connects to the FC-EDGE12 switch via port channel
120. How many links must fail to cause the port channel state to change to down?

• A.4
• B.3
• C.5
• D.6
