See the solution below in Explanation.
Explanation:

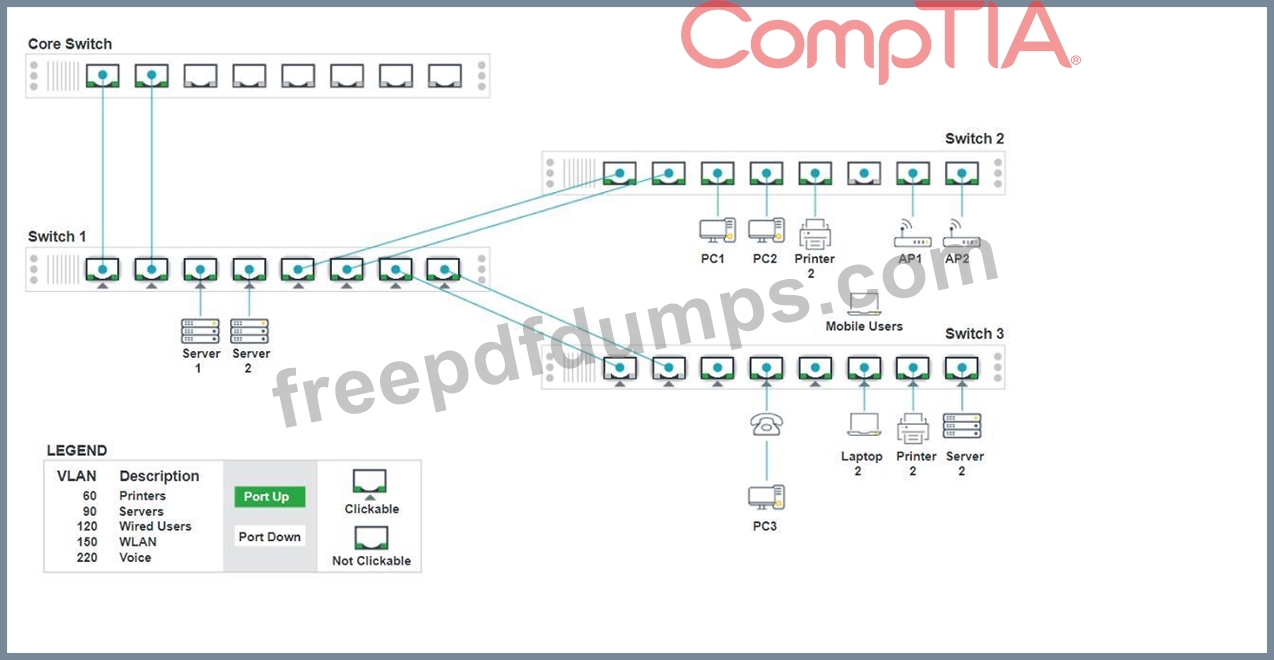

To provide a complete solution for configuring the access layer switches, let's proceed with the following steps:
* Identify the correct VLANs for each device and port.
* Enable necessary ports and disable unused ports.
* Configure fault-tolerant connections between the switches.

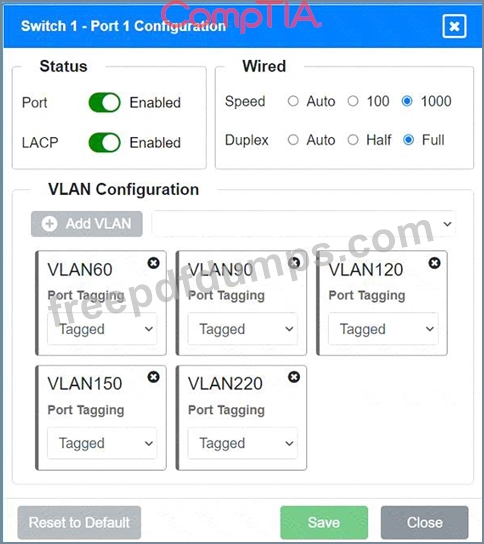

Port 1 Configuration (Uplink to Core Switch)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full

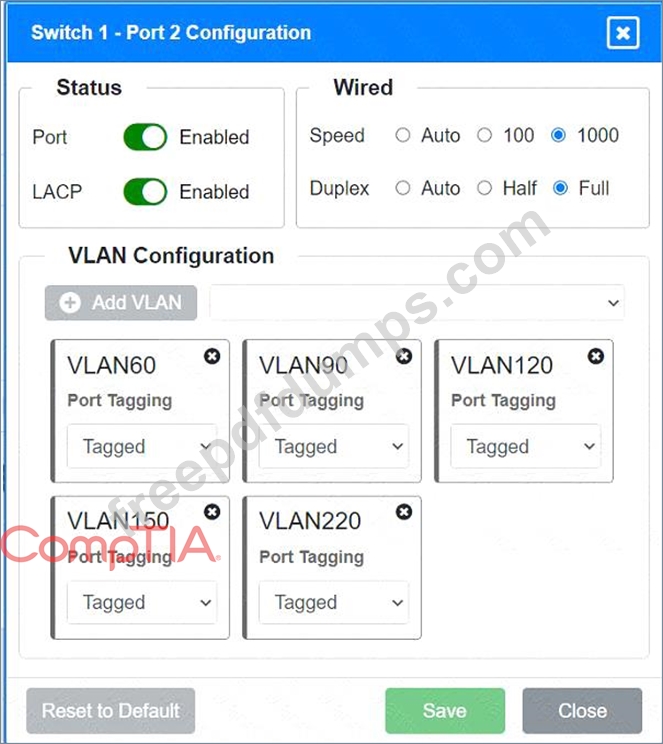

* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 2 Configuration (Uplink to Core Switch)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full

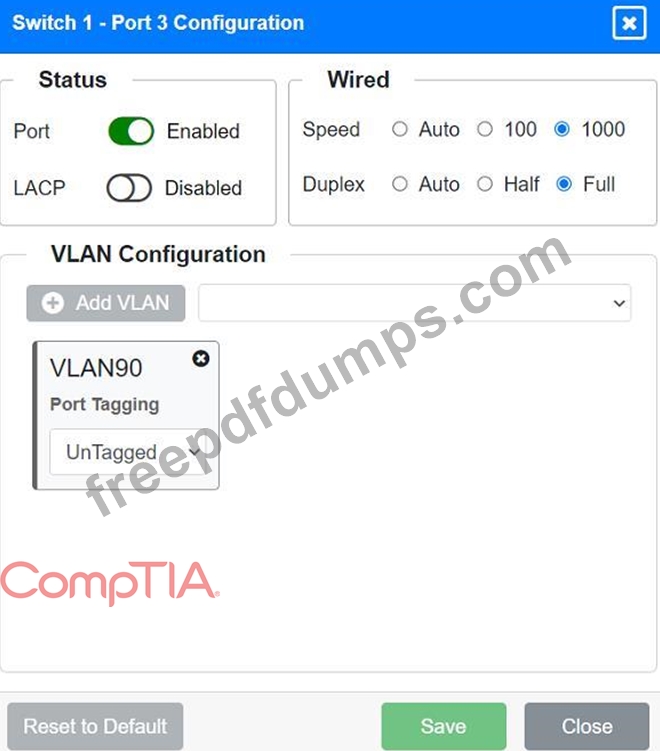

* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN150, VLAN220 Port 3 Configuration (Server Connection)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN90 (Servers)

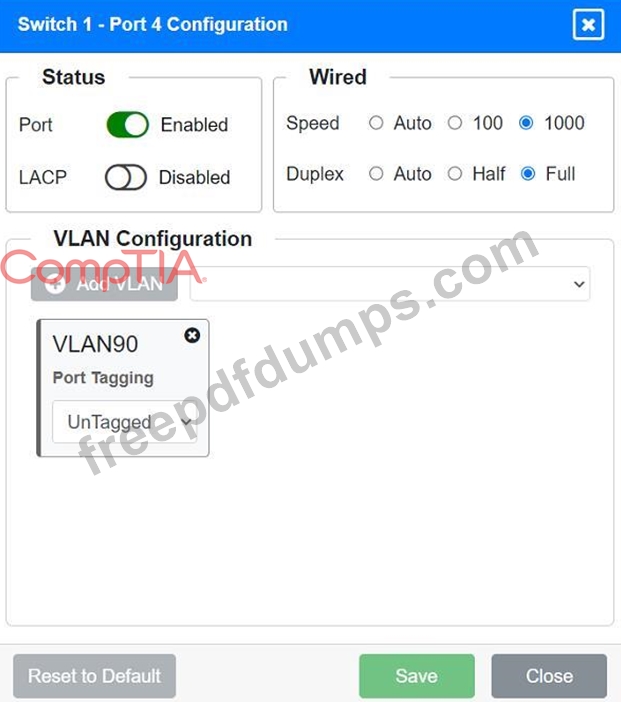

Port 4 Configuration (Server Connection)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN90 (Servers)

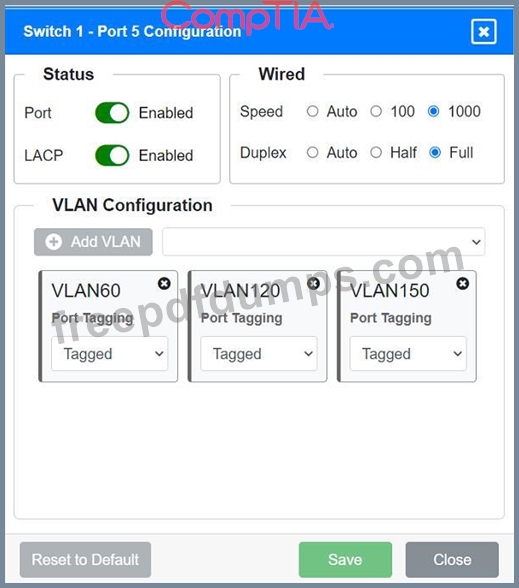

Port 5 Configuration (Wired Users and WLAN)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

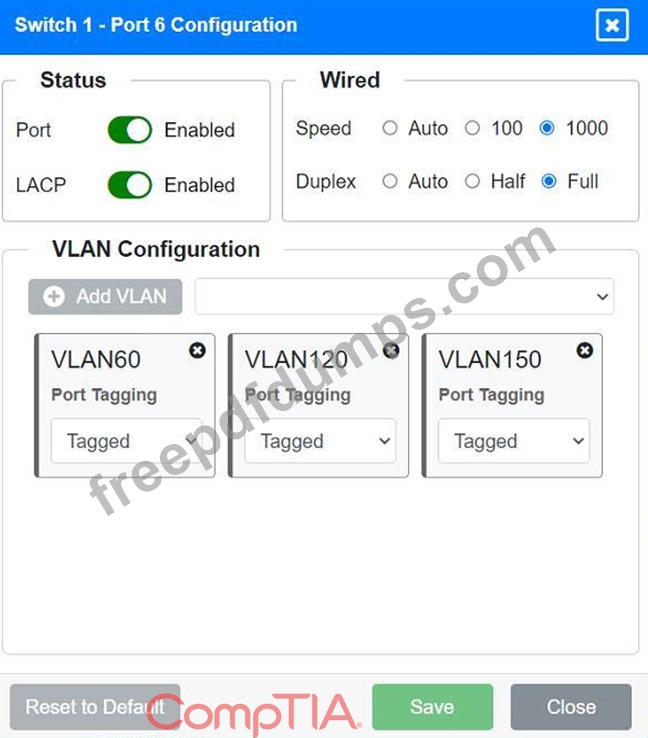

Port 6 Configuration (Wired Users and WLAN)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN120, VLAN150

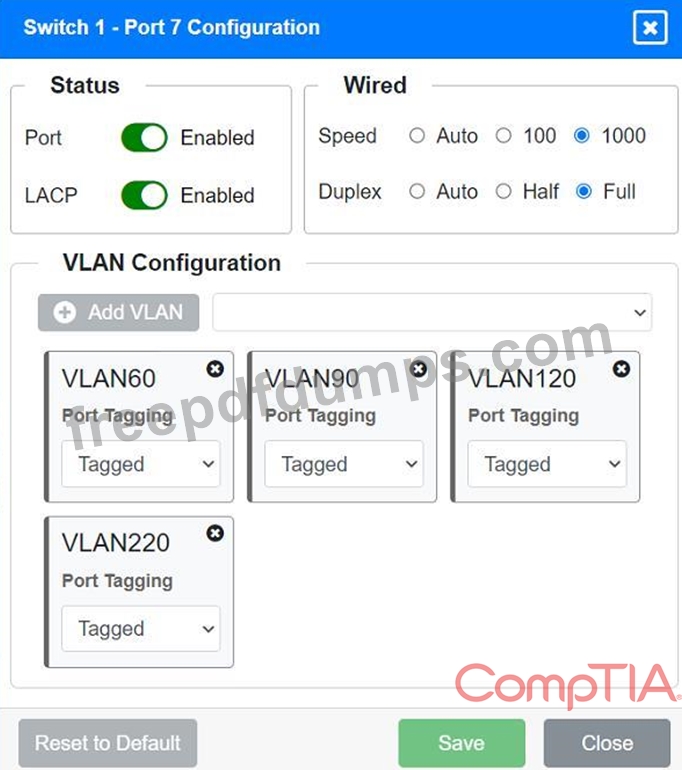

Port 7 Configuration (Voice and Wired Users)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

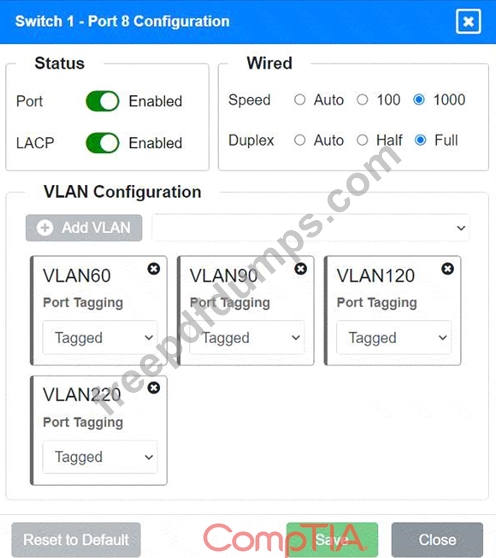

Port 8 Configuration (Voice, Printers, and Wired Users)
* Status: Enabled
* LACP: Enabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Tagged for VLAN60, VLAN90, VLAN120, VLAN220

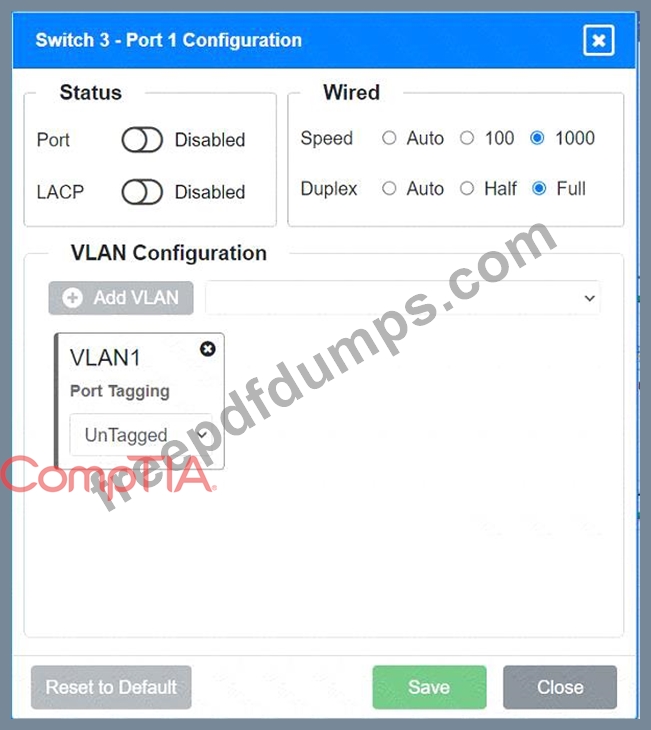

Port 1 Configuration (Unused)
* Status: Disabled
* LACP: Disabled

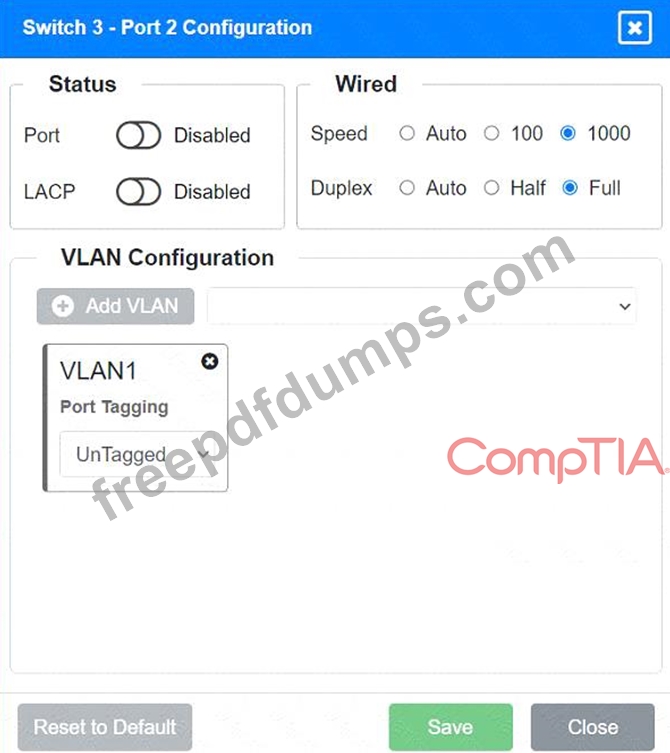

Port 2 Configuration (Unused)
* Status: Disabled
* LACP: Disabled

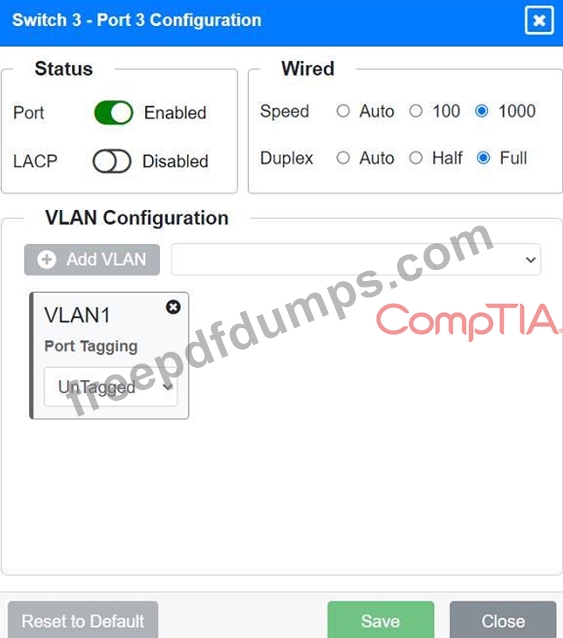

Port 3 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)

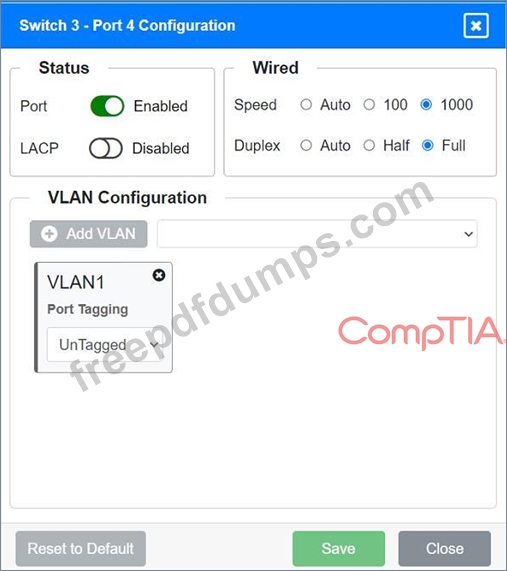

Port 4 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)

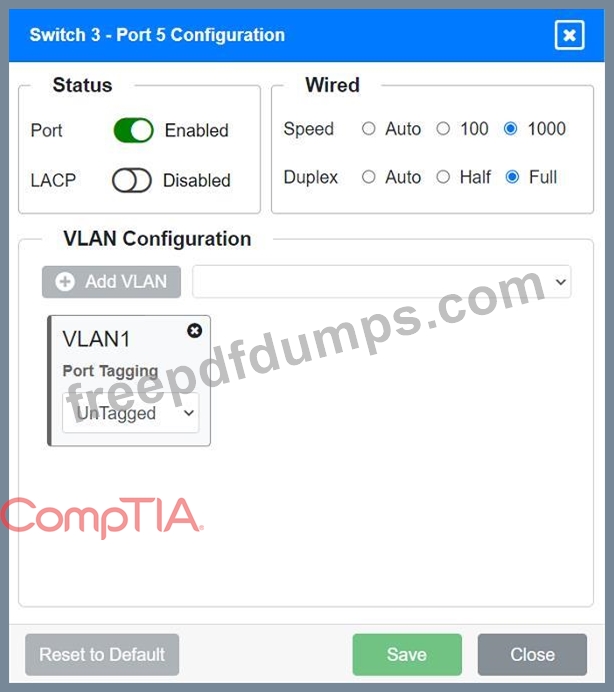

Port 5 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)

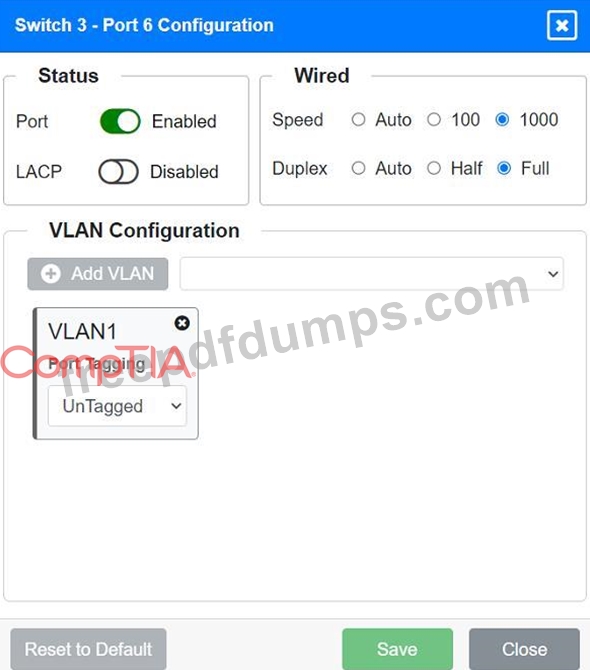

Port 6 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)

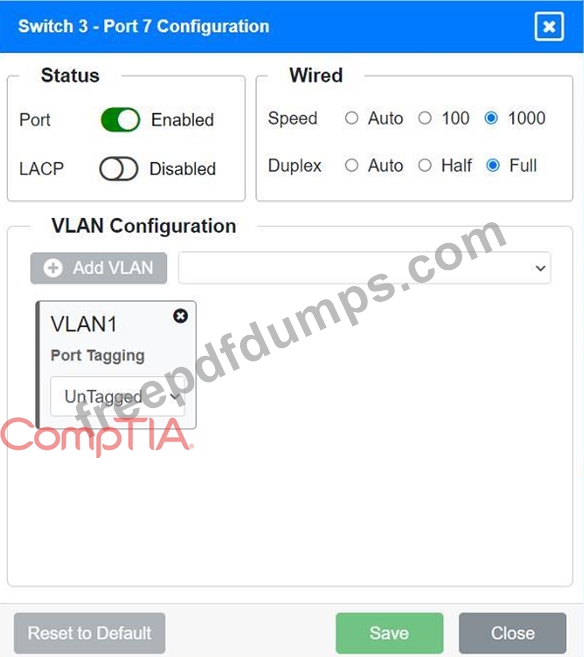

Port 7 Configuration (Connection to Device)
* Status: Enabled
* LACP: Disabled
* Speed: 1000
* Duplex: Full
* VLAN Configuration: Untagged for VLAN1 (Default)
* Ports 1 and 2 on Switch 1 are configured as trunk ports with VLAN tagging enabled for all necessary VLANs.
* Ports 3 and 4 on Switch 1 are configured for server connections with VLAN 90 untagged.
* Ports 5, 6, 7, and 8 on Switch 1 are configured for devices needing access to multiple VLANs.
* Unused ports on Switch 3 are disabled.
* Ports 3, 4, 5, 6, and 7 on Switch 3 are enabled for default VLAN1.
* Core Switch Ports should be configured as needed for uplinks to Switch 1.
* Ensure LACP is enabled for redundancy on trunk ports between switches.
By following these configurations, each device will access only its correctly associated network, unused switch ports will be disabled, and fault-tolerant connections will be established between the switches.

Multimode fiber optic cables involve the transmission of light signals that bounce off the core's cladding as they travel down the fiber. This characteristic differentiates it from single-mode fiber, where the light travels directly down the fiber without reflecting off the cladding.
Here are some detailed points about multimode fiber cables:
* Construction: Multimode fibers have a larger core diameter, typically 50 or 62.5 microns, compared to single-mode fibers, which have a core diameter of about 9 microns.
* Light Propagation: The larger core of multimode fiber allows multiple light modes to propagate. These modes travel at different angles, leading to reflections off the core-cladding boundary.
* Distance and Bandwidth: Due to modal dispersion, where different light modes arrive at the receiver at
* different times, multimode fibers are suited for shorter distance applications compared to single-mode fibers. Typical distances are up to 550 meters for 10 Gbps Ethernet using OM4 multimode fiber.
* Applications: Multimode fibers are commonly used in LANs (Local Area Networks), data centers, and for shorter distance data transmission due to their cost-effectiveness and ease of installation.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide, which covers fiber optic technologies, including the differences between multimode and single-mode fibers.
* Cisco Networking Academy: Provides training materials and reference guides on the properties of different fiber optic cables.
* Fiber Optic Association (FOA): A professional society dedicated to fiber optics, offering extensive information and certification on fiber optic technologies.
Multimode fibers are specifically designed for short-range communication with higher data rates and are typically used in environments like data centers, where high bandwidth over shorter distances is crucial. The reflections off the cladding, inherent to multimode fiber, facilitate this high-capacity communication.

802.11ax, also known as Wi-Fi 6, is designed for high-density environments and improves device saturation and coverage compared to previous standards.
* 802.11ac: While it offers high throughput, it is not optimized for high-density environments as effectively as 802.11ax.
* 802.11ax (Wi-Fi 6): Introduces features like OFDMA, MU-MIMO, and BSS Coloring, which enhance performance in crowded environments, reduce latency, and increase the number of devices that can be connected simultaneously.
* 802.11g and 802.11n: Older standards that do not offer the same level of efficiency or support for high device density as 802.11ax.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Covers the 802.11 standards and their capabilities.
* Cisco Networking Academy: Provides training on Wi-Fi technologies and best practices for high-density deployments.
* Network+ Certification All-in-One Exam Guide: Discusses the various 802.11 standards and their applications in different environments.

X.509 certificates are most commonly associated with Public Key Infrastructure (PKI). These certificates are used for a variety of security functions, including digital signatures, encryption, and authentication.
* PKI: X.509 certificates are a fundamental component of PKI, used to manage encryption keys and authenticate users and devices.
* Digital Certificates: They are used to establish secure communications over networks, such as SSL/TLS for websites and secure email communication.
* Authentication and Encryption: X.509 certificates provide the means to securely exchange keys and verify identities in various applications, ensuring data integrity and confidentiality.
Network References:
* CompTIA Network+ N10-007 Official Certification Guide: Covers PKI and the role of X.509 certificates in network security.
* Cisco Networking Academy: Provides training on PKI, certificates, and secure communications.
* Network+ Certification All-in-One Exam Guide: Explains PKI, X.509 certificates, and their applications in securing network communications.

802.1X is a port-based network access control (PNAC) protocol that provides an authentication mechanism to devices wishing to connect to a LAN or WLAN. It is widely used for secure network access, ensuring that only authenticated devices can access the network, whether they are connecting via wired or wireless means.
802.1X works in conjunction with an authentication server, such as RADIUS, to validate the credentials of devices trying to connect.References: CompTIA Network+ study materials.
