Online Access Free 201 Exam Questions

A BIG-IP Administrator is creating a new Trunk on the BIG-IP device. What objects should be added to the new Trunk being created?

• A.VLANS
• B.Interfaces
• C.IP addresses
• D.Network routes

Refer to the exhibit

A connection is being established to IP 1.1.1.1 on port 8080.
Which virtual server will handle the connection?

• A.host_vs
• B.fwdvs
• C.fwd_8080_vs
• D.host_ 8080_VS

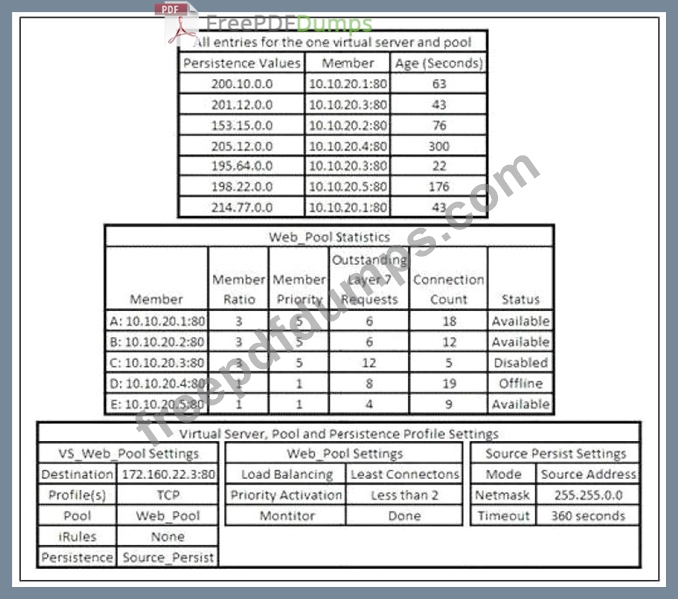

A virtual server is defined using a source address based persistence profile. The last five connections were A, B, C, A, C . Given the conditions shown in the graphic, if a client with IP address 205.12.45.52 opens a connection to the virtual server, which member will be used for the connection?

• A.10.10.20.4:80
• B.10.10.20.2:80
• C.10.10.20.1:80
• D.10.10.20.5:80
• E.10.10.20.3:80

During a maintenance window, an EUD test was executed and the output displayed on the screen. The BIG-IP Administrator did NOT save the screen output. The BIG-IP device is currently handling business critical traffic. The BIG-IP Administrator needs to minimize impact. What should the BIG-IP Administrator do to provide the EUD results to F5 Support?

• A.Collect file /var/log/messages
• B.Collect file /shared/log/eud.log
• C.Execute EUD from tmsh and collect output from console
• D.Boot the device into EUD then collect output from console

A BIG-IP Administrator is conducting maintenance on one BIG-IP appliance in an HA Pair. Why should the BIG-IP Administrator put the appliance into FORCED_OFFLINE state?

• A.To terminate connections to the management IP and decrease persistent connections
• B.To allow new connections to Virtual Servers and ensure the appliance becomes active
• C.To preserve existing connections to Virtual Servers and reduce the CPU load
• D.To terminate existing connections to Virtual Servers and prevent the appliance from becoming active
