Online Access Free NSE7_SAC-6.2 Exam Questions

An administrator has deployed dual band-capable wireless APs in a wireless network. Multiple 2.4 GHz wireless clients are connecting to the network, and subsequent monitoring shows that individual AP 2.4GHz interfaces are being overloaded with wireless connections.
Which configuration change would bestresolve the overloading issue?

• A.Configure load balancing AP handoff on both the AP interfaces on all APs.
• B.Configure a client limit on the all AP 2.4GHz interfaces.
• C.Configure load balancing frequency handoff on both the AP interfaces.
• D.Configure load balancing AP handoff on only the 2.4GHz interfaces of all Aps.

Which step can be taken to ensure that only FortiAP devices receive IP addresses from a DHCP server on FortiGate?

• A.Use DHCP option 138 to assign IPs to FortiAP devices.
• B.Create a reservation list in the DHCP server settings.
• C.Configure a VCI string value of FortiAP in the DHCP server settings.
• D.Change the interface addressing mode toFortiAP devices.

Refer to the exhibit.

Examine the network topology shown in the exhibit.
Which port should have root guard enabled?

• A.FortiSwitch B, port2
• B.FortiSwitch A, port1
• C.FortiSwitch A, port2
• D.FortiSwitch B, port1

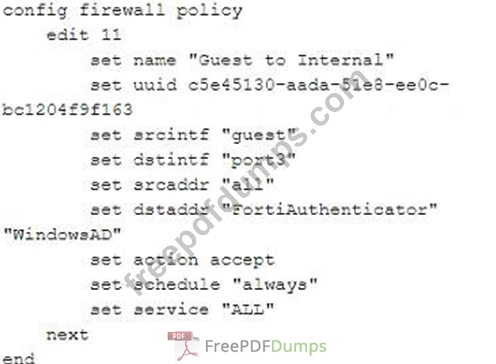

Refer to the exhibit.

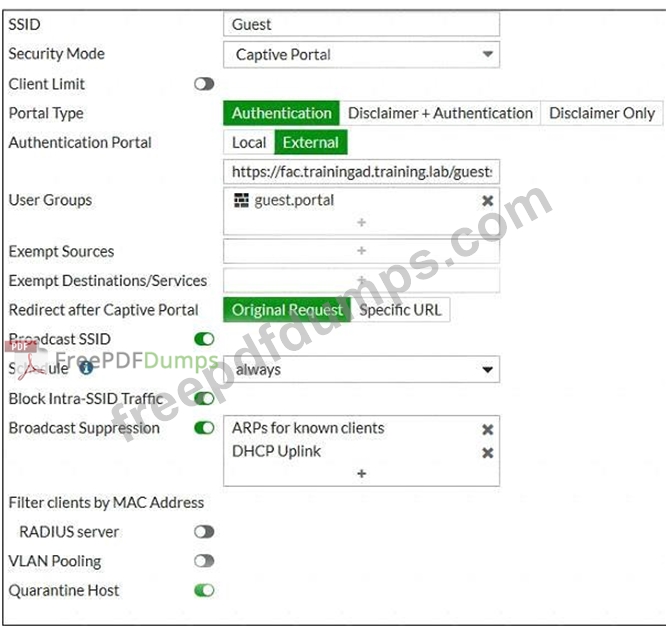

The exhibit shows a network topology and SSID settings.
FortiGate is configured to use an external captive portal. However, wireless users are not able to see the captive portal login page.
Which configuration change should the administrator make to fix the problem?

• A.Remove guest.portal user group in the firewall policy.
• B.FortiAuthenticator and WindowsAD address objects should be added as exempt sources.
• C.Create a firewall policy to allow traffic from the Guest SSID to FortiAuthenticator and Windows AD devices.
• D.Enable the captive-portal-exempt option in the firewall policy with the ID 10.
