Online Access Free HPE3-U01 Exam Questions

What is a true statement about wireless communications using Wi-Fi?

• A.Amplitude, phase, and frequency of radio waves are modulated to transmit data
• B.Wireless communications have a maximum range of 10 meters (30 feet)
• C.Wireless communications have a minimum range of 10 meters (30 feet)
• D.Amplitude, phase, and frequency of radio waves are modulated to increase range

You have connected a Multilayer switch to an Internet Service Provider router that has the 172.16.31.254 IP address. What configuration line do you have to enter on your switch to enable internet access?

• A.route 172.16.31.254 0.0.0.0 0.0.0.0
• B.ip routing 0/0 172.16.31.254
• C.routing 0.0.0.0/0 172.16.31.254/24
• D.Ip route 0.0.0.0/0 172.16.31.254

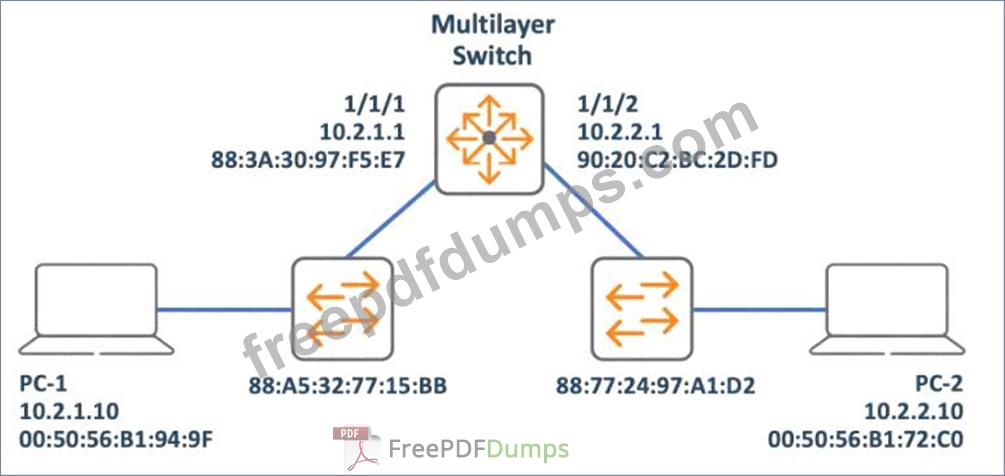

Refer to exhibit:

PC-1 is sending a packet to PC-2. What are the Layer 2 and Layer 3 source addresses of the message when it is received by PC-2? (Select two.)

• A.source IP is 10.2.2.1
• B.source IP is 10.2.1.10
• C.destination MAC is 88:77:24:97:A1:D2
• D.source MAC is 90:20:C2:BC:2D:FD
• E.source MAC is 00:50:56:B1:94:9F

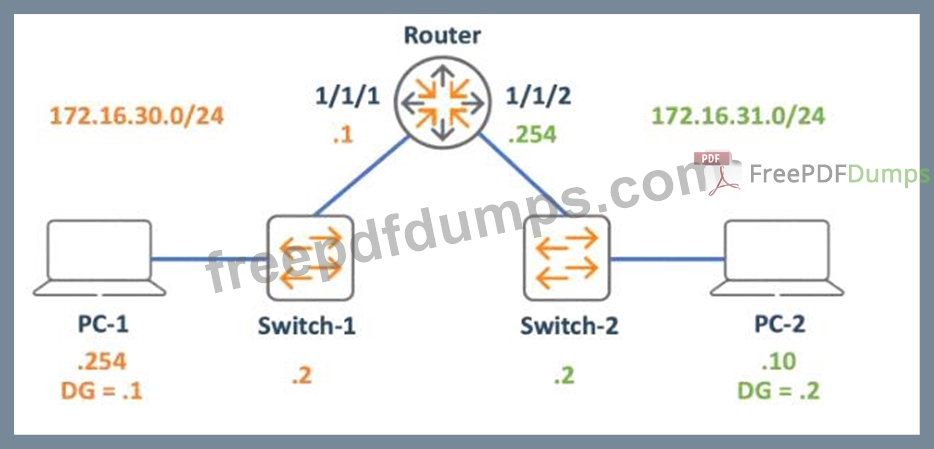

Refer to Exhibit.

The PCs are not able to successfully establish bidirectional communication. What change must you deploy to enable the communication between PC-1 and PC-2?

• A.change PC-1 's default gateway to 172.16.30.2
• B.change PC-2's default gateway to 172.16.31.254
• C.change the Router's 1/1/1 interface IP to 172.16.30.254
• D.change PC-1's IP address to 172.16.30.10

Which organization provides certifications that ensure interoperability between WLAN vendors?

• A.Wi-Fi Alliance
• B.Internet Engineering Task Force
• C.Institute of Electrical and Electronics Engineers
• D.Federal Communications Commission
