Online Access Free HPE6-A40 Exam Questions

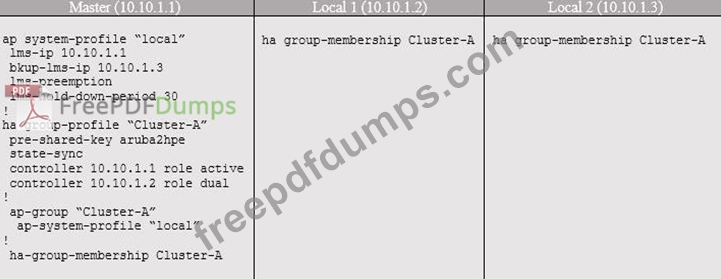

Refer to the exhibit.

A network engineer reviews the HA redundancy configuration of the Master and Local controllers shown in the exhibit. The engineer notices HA preemption is not enabled.
Which statement are correct? (Choose two.)

• A.The CAPs in the ap group of Cluster-A can failover to 10.10.10.1.3 and will not fallback the original controller after 10.10.10.1 is up.
• B.The RAPs in the ap group of Cluster-A can failover to 10.10.10.1.3 and will start to fall back to
  10.10.10.1 after 10.10.10.1 is up for 30 seconds.
• C.The CAPs in the ap group of Cluster-A can failover to 10.10.10.1.2 and will start to fall back to
  10.10.10.1 after 10.10.10.1 is up for 30 seconds.
• D.The RAPs in the ap group of Cluster-A can failover to 10.10.10.1.2 and will start to fall back to
  10.10.10.1 after 10.10.10.1 is up for 30 seconds.

Refer to the exhibits on the tabs.
Exhibit 1

Exhibit 2

Exhibit 3

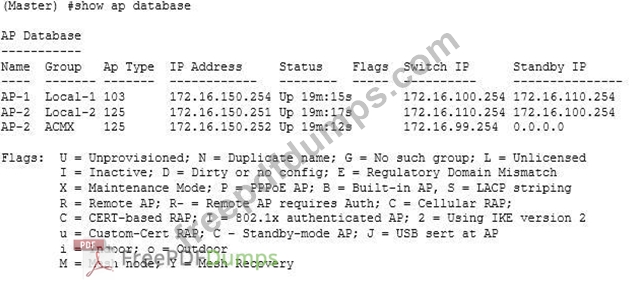

A network engineer configures AP termination with redundancy. The engineer executes the show ap database command on a master controller. The output is shown in the exhibit.
What can the engineer determine from this output?

• A.AP-Groups Local-1, Local-2 are configured with High Availability: Fast Failover LMS, and Backup LMS IP; Backup LMS of the ACMX group is down.
• B.AP-Groups Local-1 and Local-2 are configured with High Availability: Fast Failover LMS, and Backup LMS IP; Backup LMS of the ACMX group is down.
• C.AP-Groups Local-1 and Local-2 are configured with High Availability: Fast Failover but not LMS and Backup LMS IP; AP-Groups ACMX is not configured with HA, LMS, or Backup LMS IP.
• D.AP-Groups Local-1 and Local-2 are configured with High Availability: Fast Failover LMS, and Backup LMS IP; AP-Group ACMX is configured with only HA not LMS or Backup LMS IP.

An Aruba presales engineer works on a proof of concept (PoC) for a customer. As per the customer requirements, RRAPs should be deployed at all home offices of employees who work from home. Only traffic from the RAP in corporate subnets 172.16.10.0/24, 172.168.1.1/24, and 10.254.1.0/8 should reach the controller. The rest of the traffic should be processed by the local resources.
What is the recommended deployment design to meet these requirements?

• A.Deploy the RAP in CAP mode, and use a route map to forward traffic either locally or to the corporate controller.
• B.Deploy the RAP in split-tunnel mode, and uses a firewall policy to forward traffic either locally or to the corporate controller.
• C.Deploy the RAP in split-tunnel mode, and use a route map to forward traffic either locally or to the corporate controller.
• D.Deploy the RAP in split-tunnel mode, and use the split tunnel networks to forward traffic either locally or to the corporate controller.

A network engineer configures two controllers for VRRRP. The engineer expects the status of the controllers to be master and backup, but notices that both controllers have statuses of master.
What is a possible reason?

• A.VRRP VLAN is not allowed on the trunk link between both controllers.
• B.VLAN ID is same in the VRRP configuration on both controllers
• C.VRRP IDs of both controllers are the same in the VRRP configuration.
• D.VRRP priority is configured with the wrong parameters on both controllers.

Which settings should be enabled on a firewall policy and applied to a role for voice devices to follow best practices? (Select two.)

• A.High Queue for voice traffic
• B.Deny other traffic except SIP
• C.Deny all station to station access
• D.Allow access to Internet
• E.Mark L2/L3 Qos tag if needed
