Online Access Free HPE6-A49 Exam Questions

In which scenario do Aruba 2930M Series switches, but not Aruba 2930F Series switches, meet the needs for an upgrade of the wired access layer?

• A.Each switch must support 48 1Gbps edge ports, and the uplinks must be redundant as well as provide no worse than 10:1 oversubscription.
• B.The customer requires switches in the same closet to connect together into a single virtual switch that is managed and operates as a single device.
• C.The customer requires enhanced redundancy at the access layer and wants to ensure that each switch can continue to operate even if a power supply fails.
• D.Each switch must support mostly non-PoE devices, but also at most four Aruba AP-345s which require PoE+ to support the full requirements for the customer scenario.

A customer has an existing Aruba wireless solution to provide wireless access for employees. The solution includes APs, mobility controllers (MCs) at the network core, and a Mobility Master (MM). A customer would like to set up a separately managed guest network and have the traffic go directly to the DMZ.
What should the architect suggest as the simplest solution that meets the requirements?

• A.Double the number of APs and controllers
• B.Add APs in a dedicated AP group to support only the guest network SSID.
• C.Use MultiZone, and put a mobility controller in the DMZ.
• D.Have a dedicated mobility controller in the DMZ managed by the same MM.

A customer requires new MCs for a large multi-site network with about 600 AP-345s and 30,000 wireless clients. The customer requires redundancy for the MCs with each MC being able to handle the full load in a failover situation. The network should be able to sustain the loss of a controller with stateful failover within seconds. It should be able to undergo software upgrades without downtime.
The architect has recommended two 7240XM MCs. The customer points out that 7220 MCs can support enough APs and wonders why the architect recommended the 7240XMs.
What should the architect explain?

• A.The 7240XMs MCs have more advanced clustering and availability capabilities than the 7220s MCs.
• B.The 7240XMs MCs are required to support the large number of wireless clients in this network.
• C.The 7240XMs MCs can support full CPSec tunnels with this number of APs, while the 7220 MCs cannot.
• D.The 7240XMs MCs support 40GbE ports, which are desirable for future proofing.

A customer has an Aruba wireless network, which includes two MC 7205s and an MM at the network core.
The company now wants to accommodate 50 mobile trainers. These trainers travel around the world and run training events. The trainers often need to access materials in the company data center, but cannot reach materials when they are on the road.
The company wants to give the mobile workforce a secure way to reach the materials they need no matter where they are, including in public spaces like the hotels where they often teach. The customer also requires that the solution be as cost effective as possible while meeting the requirements.
Which plan meets the needs of the mobile trainers?

• A.Add 50 RAPs; add 50 Enterprise licenses to the MM, and add two 7005 MCs in the DMZ.
• B.Add 50 PEFV licenses to the MM, and add additional 7205 MC to the core.
• C.Add 50 RAPs; add 50 Enterprise licenses and 50 VIA licenses to the MM.
• D.Add 50 VIA licenses to the MM, and deploy two 7005 MCs in the DMZ.

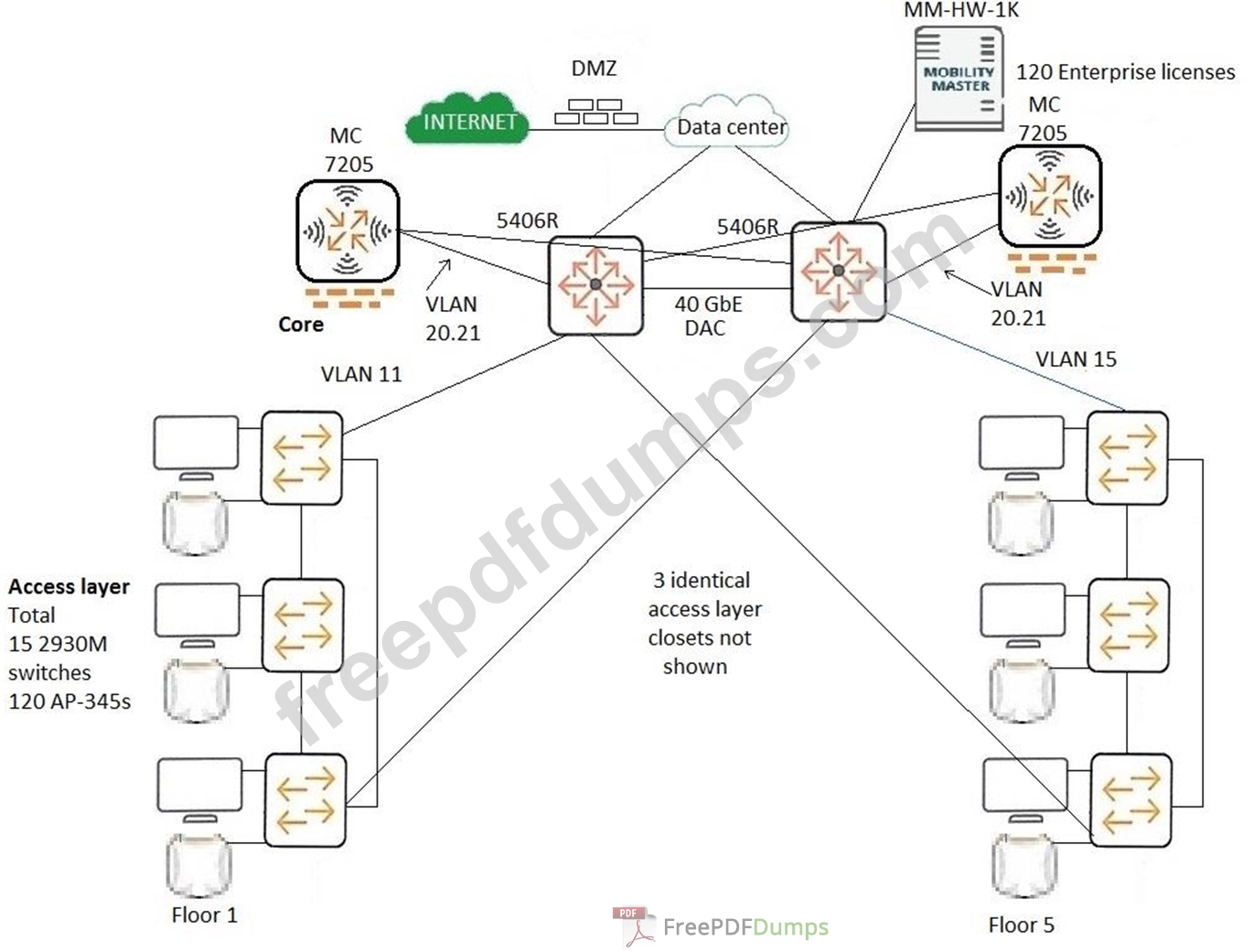

Refer to the exhibit.

A customer needs a wireless network upgrade and has these requirements:
* Support any applications used on a wired connection
* Support up to 2500 wireless clients
* Support seamless roaming from floor to floor and building to building
* Continue to function seamlessly if one AP or controller fails
The architect has designed the local infrastructure for the network as shown in the exhibit.
Which change should the architect make to better meet customer requirements and best practices?

• A.Change the /24 subnets for wireless users into a /25 subnet.
• B.Combine the /24 subnets for wireless and wired users into a /16 subnet.
• C.Place each controller in a different VLAN and subnet.
• D.Combine the /24 subnets for wireless users into a /20 subnet.
