Online Access Free Huawei.H12-261.v2022-01-21.q423 Practice Test (Page 7)

H12-261 Exam Question 26

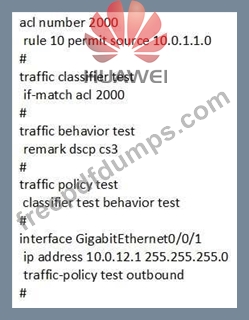

Router A has an IP route with the destination network segment of 10.0.0.1/32 and outbound interface of GigabitEthernet0/0/1. The following configuration is added:

Assume that router A receives a data packet with the destination IP address of 10.0.0.1.
Which of the following statements are true?

A.If the source IP address of the data packet is 10.0.1.2, the data packet cannot be forwarded.

B.If the source IP address of the data packet is 10.0.1.2, the data packet can be forwarded and the DSCP value is set to CS3.

C.If the source IP address of the data packet is 10.0.1.1, the data packet can be forwarded and the DSCP value is set to CS3

D.If the source IP address of the data packet is 10.0.1.2, the data packet can be forwarded and the DSCP value remains unchanged.

H12-261 Exam Question 27

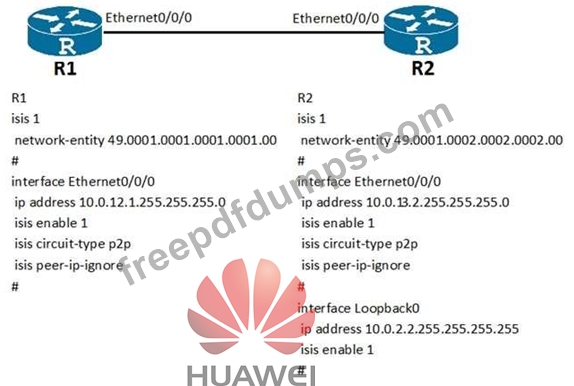

According to the following scenario, which of the following statements are true?

A.R1 has a route to the IP address 10.0.2.2/32 of loopback0 on R2.

B.R1 can successfully ping the IP address of loopback0 on R2.

C.R1 and R2 cannot establish a neighbor relationship.

D.R1 has both Level-1 and Level-2 LSDBs.

H12-261 Exam Question 28

To configure AAA, you need to configure a RADIUS server as follows:
[Huawei]radius-server template EXAM
[Huawei-radius-EXAM]radius-server shared-key cipher HUAwei123
[Huawei-radius-EXAM]radius-server authentication 10.7.66.66 1812
[Huawei-radius-EXAM]radius-server authorization 10.7.66.66 1812
[Huawei-radius-EXAM]radius-server accounting 10.7.66.66 1813
[Huawei-radius-EXAM]radius-server retransmit 2

A.FALSE

B.TRUE

H12-261 Exam Question 29

Which of the following AS paths match this AS-path-filter? ip as-path-filter 1 permit .*(100|400)S (Multiple Choice)

A.100

B.300 4200

C.12341400

D.3100

H12-261 Exam Question 30

Regarding the cross-domain scenario, the following describes the VPN Option-B error?

A.The cross-domain scheme is not limited by the number of interconnections. VPN-option-B ASBR is linked.

B.Reporting In the forwarded mode, the ASBR VPN LSP exchanges on the two private networks to be paired.

C.Two ASBR VPNv4 inter-exchange routes are exchanged with external label.

D.Two neighbor relationships between ASBR MP-EBGP need to be established.
