There is no routing protocol running on the router HW and only a default route is used to reach the remote network. Use the extension to ping the remote file server address 10.5.40.1 on the router. The result of pinging on the router is presented as "Request time out". According to the above description, the following analysis is wrong Yes?

• A.Ping was successful, but congestion occurred on the path to the destination
• B.ICMP packets can reach the destination address, but the destination device fails to reply
• C.There is a firewall in the remote destination network, and I have not been releasedCMP traffic
• D.The next-hop router of router HW has no path to reach the destination address
• E.router HWThere is no valid route to the destination address

A routerRouter LSA As shown in the picture, which of the following statements is wrong? (single choice)

• A.This router has established an adjacency relationshipC. This router supports external route import
• B.The router of this router ID for 10.0.12.1
• C.This router is the DR

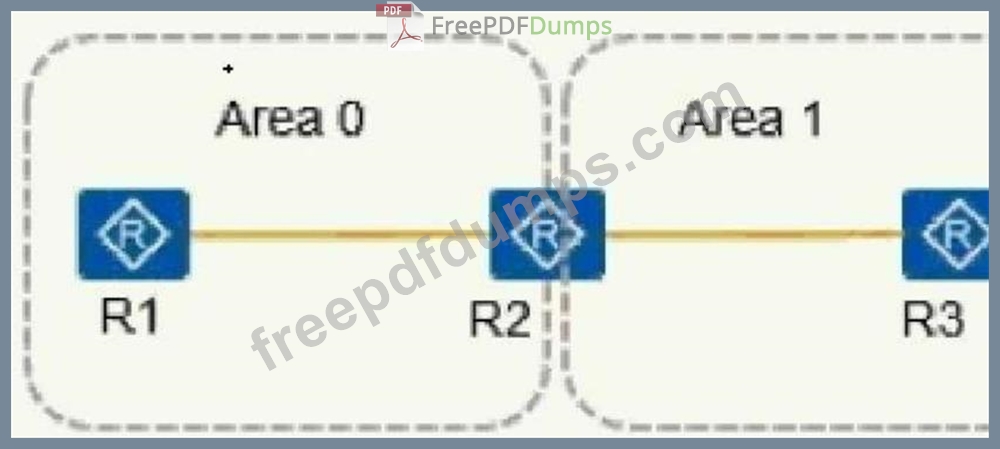

As shown, all routers are at 0SPThe loopback interface address is declared in F, among which the R2 loopback interface address is 10.0.2.2/32, which is declared in Area 0.The address of the R3 loopback interface is
10.0.3.3/32. The external route is 100.1.1.0/24. To reduce the burden on the R1 router, the configuration command is as follows: (multiple choice)
[R1]ip ip-prefix 1 permit 100.1.1.0 24
[R1]ospf 1

[R1-ospf-1]filter-policy ip-prefix 1 import Is the following description correct?

• A.routerThere is no external route to 100.1.1.0/24 in R1's IP routing table
• B.routerIn the IP routing table of R1, there is no loopback route to R2
• C.routerIn R1's IP routing table, there is an external route to 100.1.1.0/24
• D.routerIn the IP routing table of R1, there is no loopback route to R3

IPSGWhat check frames can be set? (multiple choices))

• A.VLAN ID
• B.Outgoing interface
• C.IP address
• D.MAC address

VLAN L3 Gateway is used to implement different V?The three-layer logical interface of ANW virtual network communication is?

• A.Layer 2 sub-interface
• B.NVE interface
• C.VLANIF interface
• D.VBDIF interface
