You have a VLAN with two devices acting as a single gateway for hosts.
In this scenario, which protocol would provide a single gateway IP for the hosts?

• A.IS-IS
• B.OSPF
• C.VRRP
• D.BGP

Exhibit.

You are attempting to set up VRRP with R1 and R2 being participating members. You want R1 to be the master router and R2 to be the backup router with the virtual router they create being at address 172.25.100.1. The virtual router is not pinging from either User A or User B.
Referring to the exhibit, what must be done to correct the problem?

• A.A VRRP authentication type value is needed on R1 and R2.
• B.A VRRP policy is needed on R1 and R2.
• C.The VRRP group value on R1 and R2 must match.
• D.The VRRP priority value on R1 and R2 must match

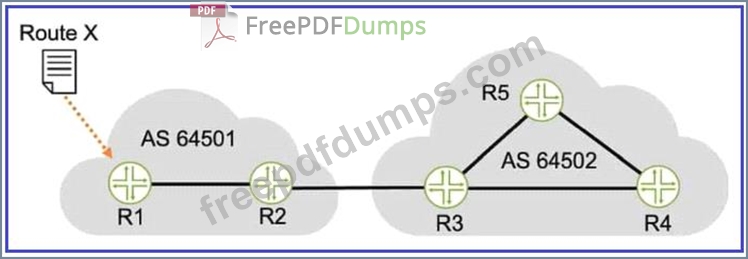

Click the Exhibit button.

Referring to the exhibit, Router 1 learns about Route X.
Which statement is correct about Route X when using the default BGP advertisement rules?

• A.R4 and R5 will not advertise this route to each other.
• B.R3 will not advertise this route to R4 or R5 without an explicit policy.
• C.R1 will not advertise this route to any peers.
• D.R2 will not advertise this route to R3 without an explicit policy.

What is the default route preference for BGP?

• A.167
• B.170
• C.150
• D.179

Routet-1 and Router-2 must connect through the Internet using a tunneling technology. Hosts that are connected to Router-1 and Router-2 will be sending traffic up to 1500 bytes. The maximum segment size that is supported across the path is 1520 bytes.
Which tunneling technology will allow this communication to take place?

• A.IPsec VPN tunnel mode
• B.IPsec VPN transport mode
• C.IP-IP tunnel
• D.GRE tunnel
