Online Access Free JN0-647 Exam Questions

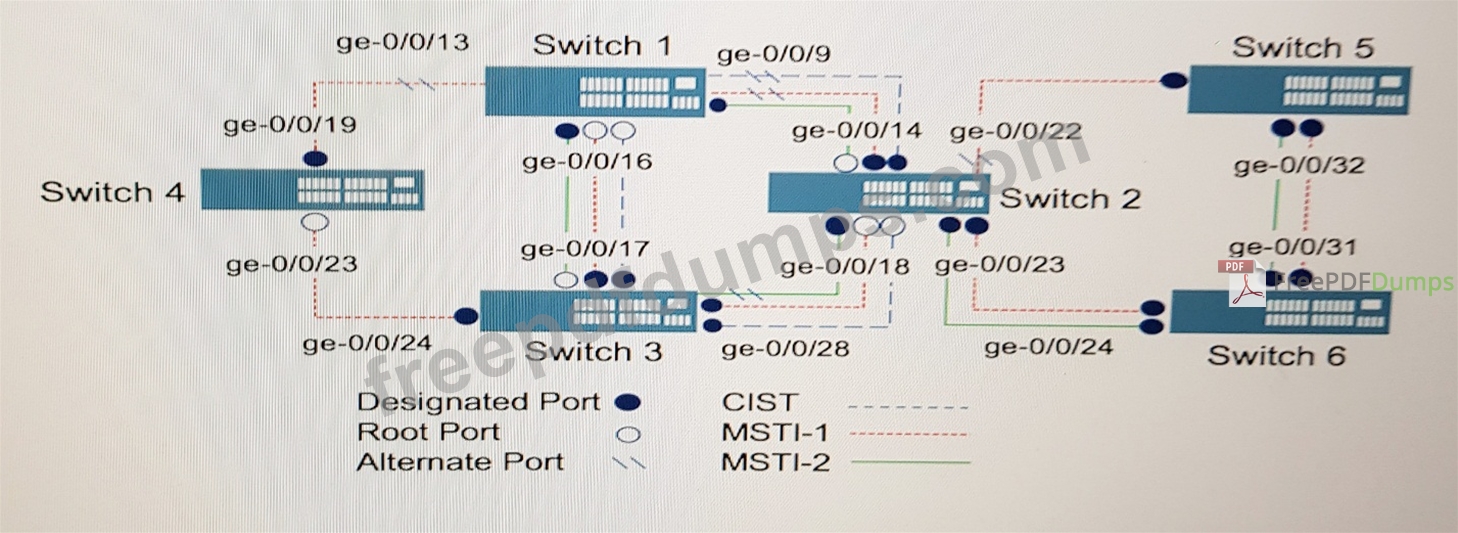

Click the Exhibit.

A customer on MSTI-2 was isolated due to a physical link outage on Switch 5's ge-0/0/32 interface.
Referring to the exhibit, which corrective action would solve this problem?

• A.Add MSTI-2 to all interfaces on Switch 5.
• B.Move the root bridge for MSTI-2 to Switch 6.
• C.replace the link between Switch 5 and 6 with a 10 Gbps link
• D.Implement the CIST on all switches.

A customer needs to pass Layer 2 protocols between sites.
Which protocol or standard would be required to implement connectivity on EX4300, EX3400, and EX2300 devices?

• A.OSPF
• B.Q-in-Q
• C.IGMP
• D.VPLS

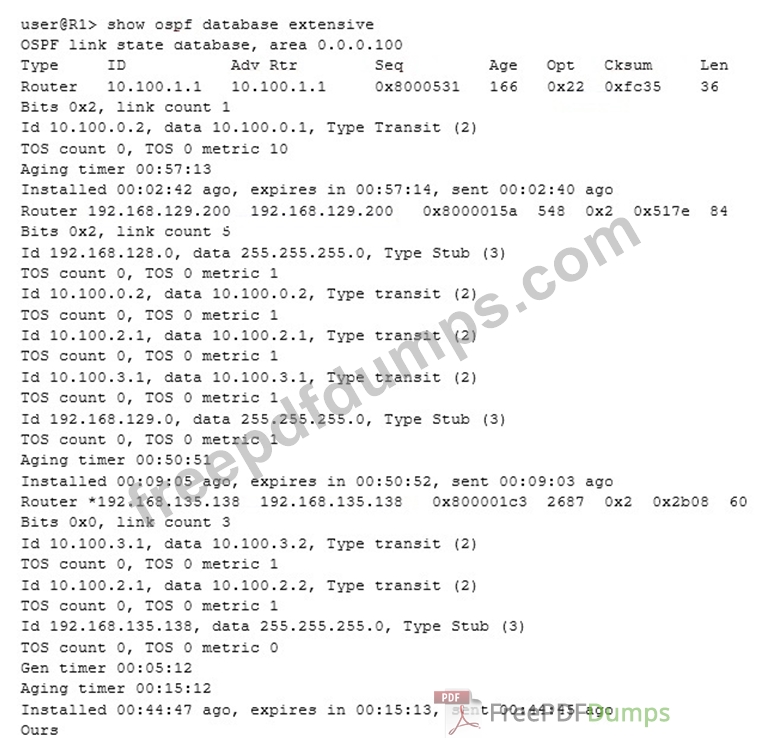

Click the Exhibit.

Referring to the exhibit, which statement is true?

• A.R1 is an ASBR.
• B.R1 has the B bit set.
• C.R1 is a backbone router.
• D.R1 is an ABR.

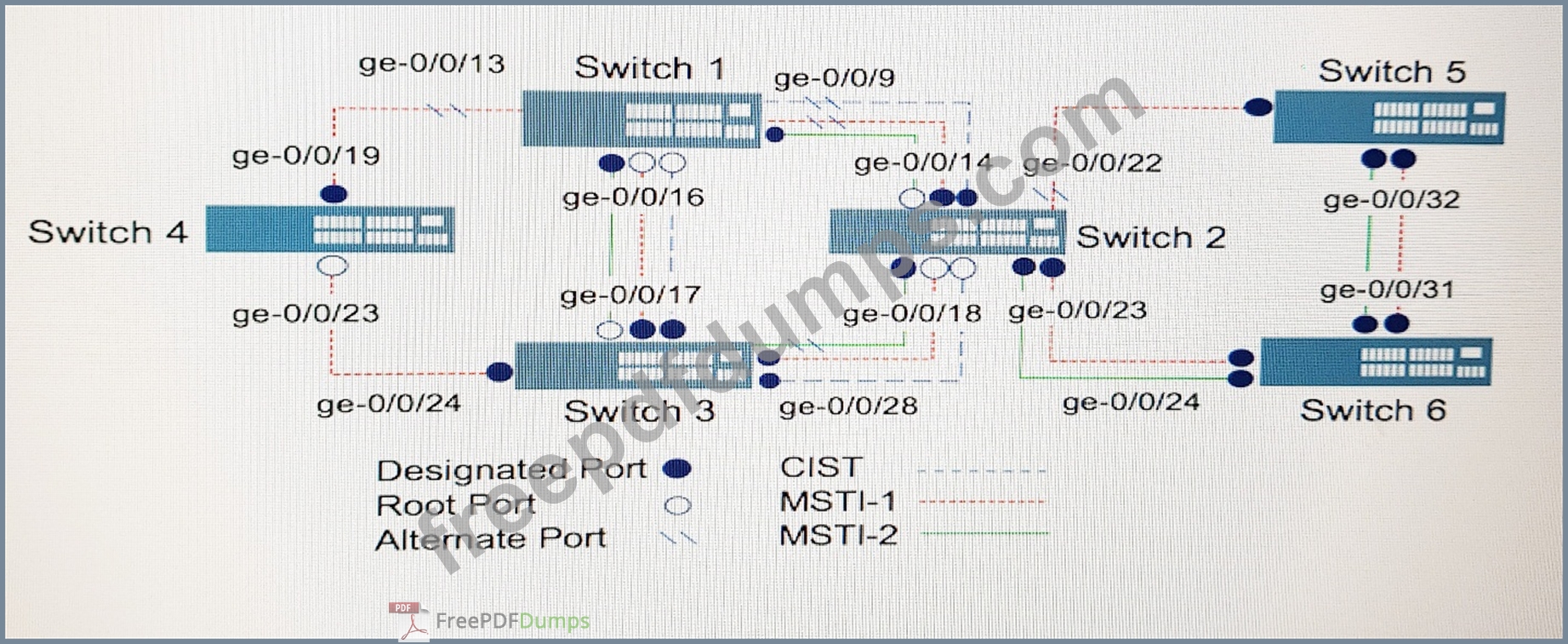

Click the Exhibit.

Referring to the exhibit, what is the minimum number of MSTP regions where the topology would be implemented?

• A.3
• B.0
• C.1
• D.2

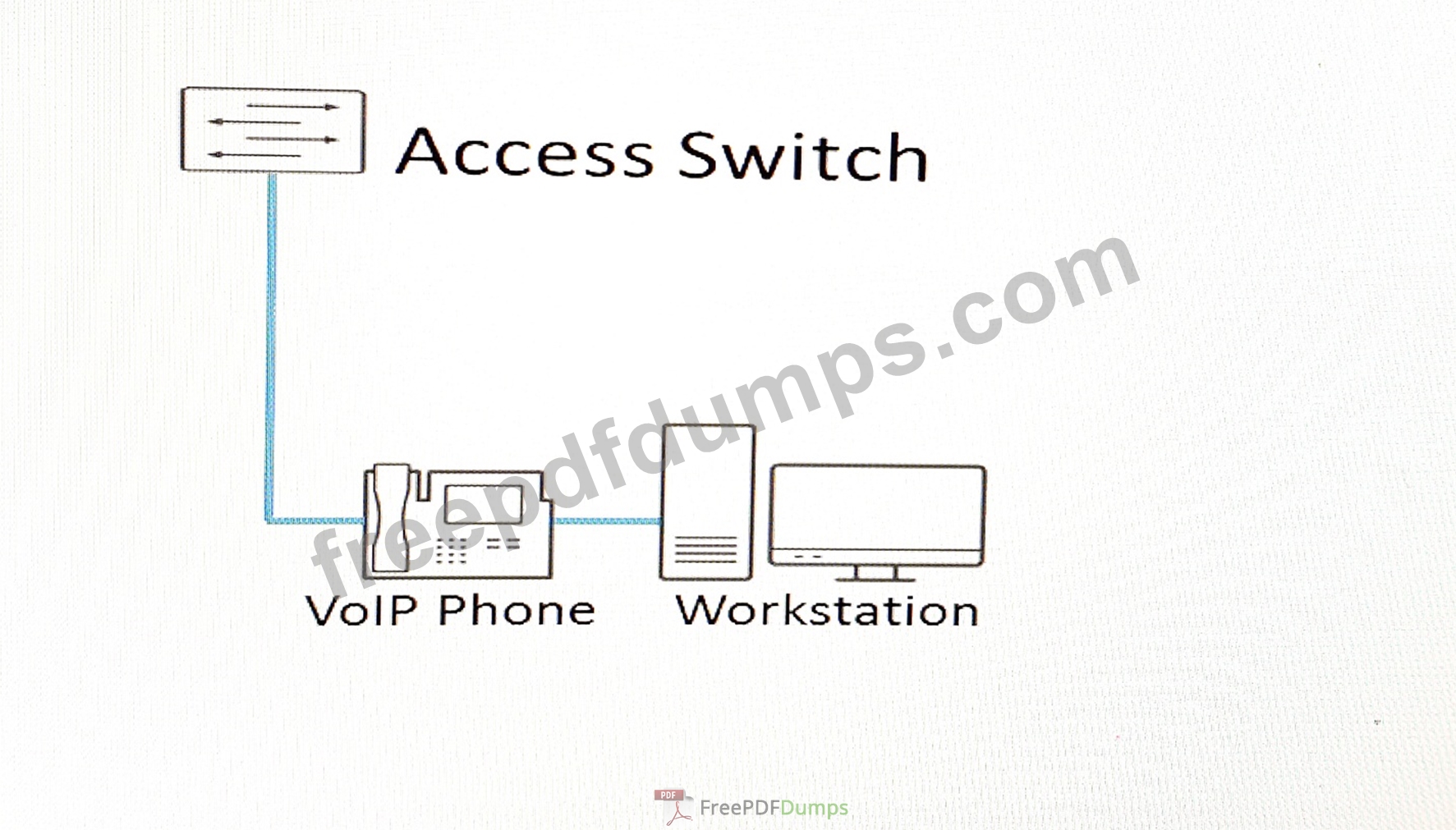

Click the Exhibit.

You have configured 802.1X single supplicant mode on the access switch. The VoIP phone does not support
802.1X authentication.
Referring to the exhibit, which statement is true?

• A.Authentication must be changed to multiple supplicant mode for this solution to work.
• B.The VoIP phone will not be able to communicate over the network.
• C.MAC bypass must be configured for the VoIP phone for this solution to work.
• D.The VoIP phone will be able to communicate over the network after the workstation authenticates.
