Click the Exhibit button.
[edit]
user@PE-1# show protocols
rsvp {
interface all;
}
mpls {
label-switched-path p1 {
from 1.1.1.1;
to 4.4.4.4;
no cspf;
}
interface all;
}
bgp {
group Int {
type Internal;
local-address 1.1.1.1;
family inet {
unicast;
}
family inet-vpn {
unicast;
}
neighbor 2.2.2.2;
neighbor 3.3.3.3;
neighbor 4.4.4.4;
}
}
ospf {
area 0.0.0.0 {
interface ge-0/0/2.0;
interf lo0.0;
}
}
[edit]
user@p-1# show protocols
mpls {
interface all;
}
ospf {
area 0.0.0.0 {
interface ge-0/0/1.0;
interface ge-0/0/2.0;
interface ge-1o0.0;
}
}
[edit]
user@p-2# show protocols
mpls {
interface all;
}
ospf {
area 0.0.0.0 {
interface ge-0/0/1.0;
interface ge-0/0/2.0;
interface ge-lo0.0;
}
}
[edit]
user@p-2# show protocols
rsvr {
interface all;
}
mpls {
label-switched-path p2 {
from 4.4.4.4;
to 1.1.1.1;
no-ospf
}
interface all;
}
bgp {
group INT {
type internal;
local-address 4.4.4.4,
family inet {
unicast;
neighbor 2.2.2.2;
neighbor 3.3.3.3;
neighbor 1.1.1.1;
}
}
ospf {
area 0.0.0.0 {
interface ge-0/0/2.0;
interface 1o0;
}
}
Referring to the exhibit, you have configured an L3VPN that connects Site-1 and Site-2 together, but the BGP routes are being hidden on the PE routers. The topology in this scenario is shown below.
Site-1 > PE-1 > P-1 > P-2 > PE-2 > Site-2
Which two actions would allow communication Site-1 and Site-2? (Choose two.)

• A.Enable RSVP for all interfaces on P-1 and P-2.
• B.Enable LDP for all interfaces on all routers.
• C.Configure BGP on P-1 and P-2.
• D.Disable CSPF on under MPLS on P-1 and P-2.

Click the Exhibit button.

Both autonomous systems shown in the exhibit use BGP with a full-mesh IPGP configuration within each autonomous system and EBGP between the two autonomous systems. A single route is generated on R1 and advertised into BGP.
Which two statements are true in this scenario? (Choose two.)

• A.R4 will automatically readvertise the route to R5.
• B.R4 will not automatically readvertise the route to R5.
• C.R5 will not automatically readvertise the route to other routers in AS 65512.
• D.R5 will automatically readvertise the route to other routers in AS 65512.

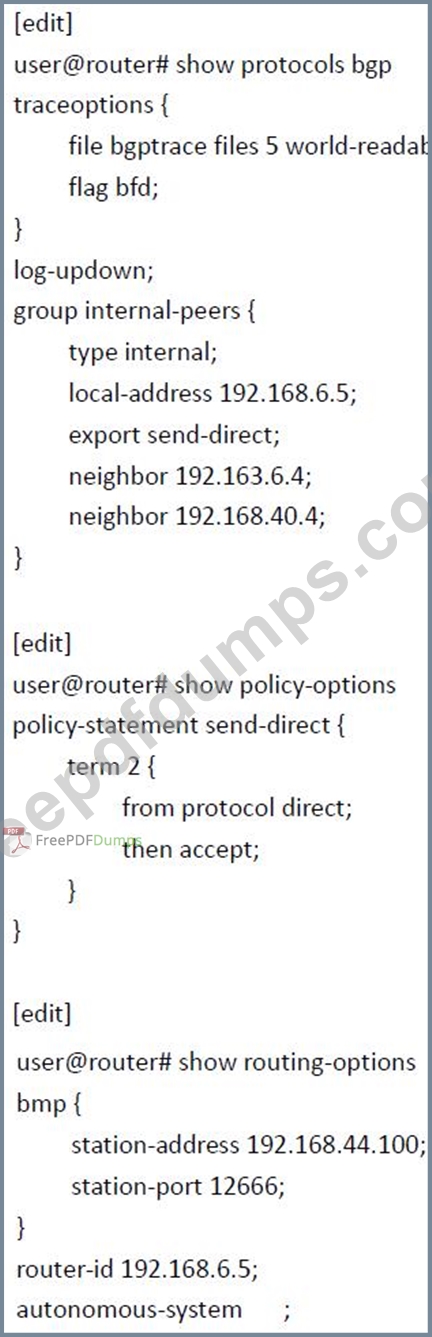

Refer to exhibit.


Referring to the script and configuration shown in the exhibit, what would be the output after committing the configuration?

• A.Option C
• B.Option B
• C.Option A
• D.Option D

Which routing instance type is used with a Layer 2 VPN?

• A.virtual-switch
• B.12vpn
• C.no-forwarding
• D.vrf

You are asked to implement a BGP-signaled VPLS network for a new customer. Which two statements are correct regarding this implementation? (Choose two.)

• A.The PE routers distribute VPLS-to-label mapping using MP-IBGP.
• B.A full mesh of LDP sessions between PEs must be configured.
• C.These MP-BGP sessions must be configured to support the inet-vpn signaling address family.
• D.These MP-BGP sessions must be configured to support the I2vpn signaling address family.
