Explanation
The attached bit is a flag in an IS-IS LSP that indicates whether a router is connected to another area or level (L2) of the network. By default, L2 routers set this bit when they advertise their LSPs to L1 routers, and L1 routers use this bit to select a default route to reach other areas or levels through L2 routers. However, this may result in suboptimal routing if there are multiple L2 routers with different paths to other areas or levels.
To ensure that L1 routers have only the most specific routes available from L2 routers, you can configure the ignore-attached-bit parameter on all L1 routers. This makes L1 routers ignore the attached bit and install all interarea routes learned from L2 routers in their routing tables.

Explanation

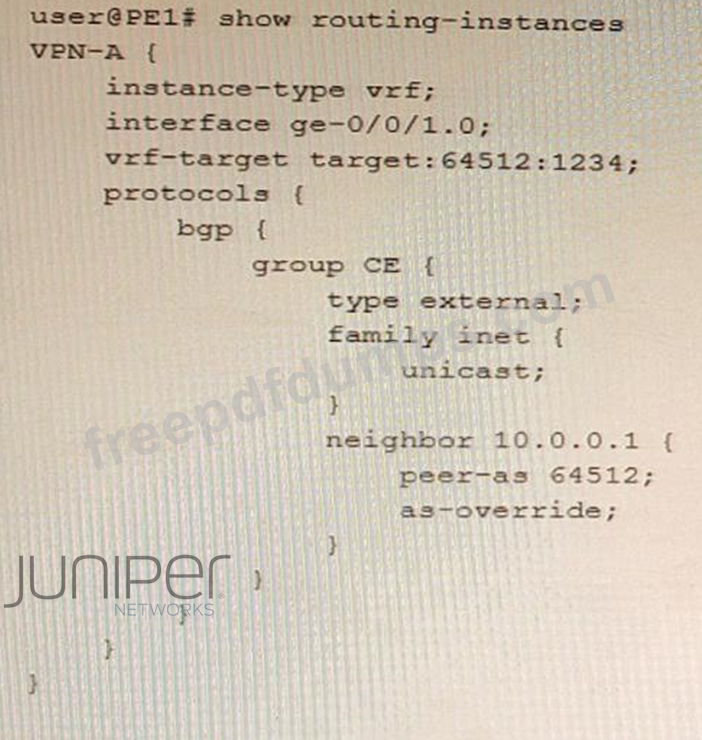

The configuration shown in the exhibit is for a Layer 3 VPN that connects customer sites that use different AS numbers. A Layer 3 VPN is a type of VPN that uses MPLS labels to forward packets across a provider network and BGP to exchange routing information between PE routers and CE routers. A Layer 3 VPN allows customers to use different routing protocols and AS numbers at their sites, as long as they can peer with BGP at the PE-CE interface. In this example, CE-1 is using AS 65530 and CE-2 is using AS 65531, but they can still communicate through the VPN because they have BGP sessions with PE-1 and PE-2, respectively.

Explanation
amplification attacks are a type of distributed denial-of-service (DDoS) attack that exploit the characteristics of certain protocols to amplify the traffic sent to a victim. For example, an attacker can send a small DNS query with a spoofed source IP address to a DNS server, which will reply with a much larger response to the victim. This way, the attacker can generate a large amount of traffic with minimal resources.
One of the methods to protect against amplification attacks is destination-based Remote Triggered Black Hole (RTBH) filtering. This technique allows a network operator to drop traffic destined to a specific IP address or prefix at the edge of the network, thus preventing it from reaching the victim and consuming bandwidth and resources. RTBH filtering can be implemented using BGP to propagate a special route with a next hop of
192.0.2.1 (a reserved address) to the edge routers. Any traffic matching this route will be discarded by the edge routers.

Explanation
BGP Layer 2 VPNs use BGP to distribute endpoint provisioning information and set up pseudowires between PE devices. BGP uses the Layer 2 VPN (L2VPN) Routing Information Base (RIB) to store endpoint provisioning information, which is updated each time any Layer 2 virtual forwarding instance (VFI) is configured. The prefix and path information is stored in the L2VPN database, which allows BGP to make decisions about the best path.
In BGP Layer 2 VPNs, each site has a unique site ID that identifies it within a VFI. The site ID can be manually configured or automatically assigned by the PE device. By default, the site ID is automatically assigned based on the order that you add the interfaces to the site configuration. The first interface added to a site configuration has a site ID of 1, the second interface added has a site ID of 2, and so on.
Option D is correct because by default on PE-2, the remote site IDs are automatically assigned based on the order that you add the interfaces to the site configuration. Option A is not correct because by default on PE-2, the site's local ID is automatically assigned a value of 0 and does not need to be configured to match the total number of attached sites. Option B is not correct because you do not need to create a unique Layer 2 VPN routing instance for each site on the PE-2 device. You can create one routing instance for all sites within a VFI. Option C is not correct because you do not need to use separate physical interfaces to connect PE-2 to each site. You can use subinterfaces or service instances on a single physical interface.

Explanation
A sham link is a logical link between two PE routers that belong to the same OSPF area but are connected through an L3VPN. A sham link makes the PE routers appear as if they are directly connected, and prevents OSPF from preferring an intra-area back door link over the VPN backbone. A sham link creates an OSPF multihop neighborship between the PE routers using TCP port 646. The PEs exchange Type 1 OSPF LSAs instead of Type 3 OSPF LSAs for the L3VPN routes, which allows OSPF to use the correct metric for route selection1.
