Explanation

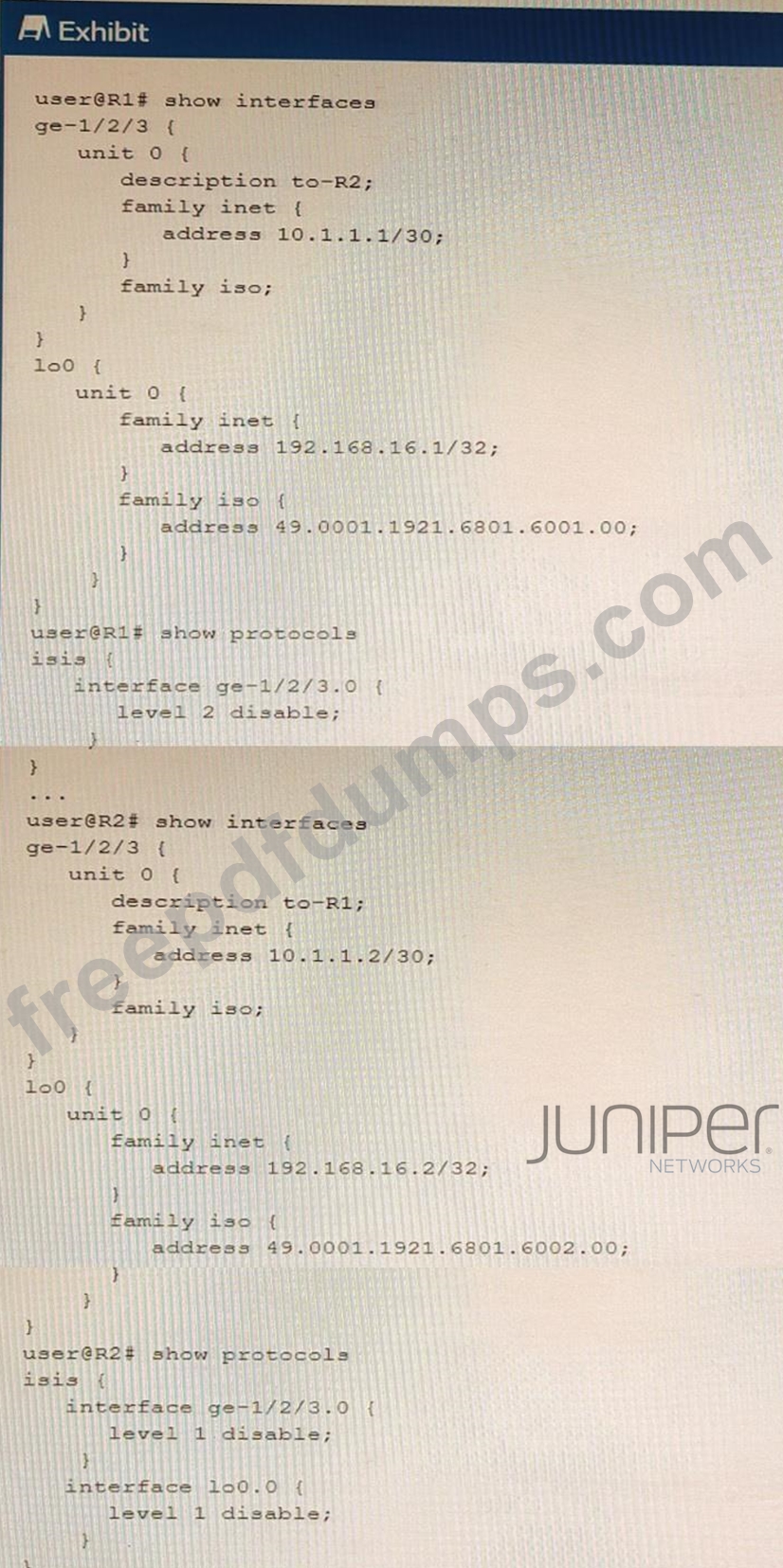

IS-IS routers can form Level 1 or Level 2 adjacencies depending on their configuration and network topology.
Level 1 routers are intra-area routers that share the same area address with their neighbors. Level 2 routers are inter-area routers that can connect different areas. Level 1-2 routers are both intra-area and inter-area routers that can form adjacencies with any other router.
In the exhibit, R1 and R2 are in different areas (49.0001 and 49.0002), so they cannot form a Level 1 adjacency. However, they can form a Level 2 adjacency if they are both configured as Level 1-2 routers. R1 is already configured as a Level 1-2 router, but R2 is configured as a Level 1 router only, because of the level 1 disable command under the lo0.0 interface. This command disables Level 2 routing on the loopback interface, which is used as the router ID for IS-IS.
Therefore, to establish a Level 1 adjacency between R1 and R2, the level 1 disable command under the R2 protocols isis interface lo0.0 hierarchy must be removed. This will enable Level 2 routing on R2 and allow it to form a Level 2 adjacency with R1.

Explanation
BGP uses several attributes to select the best path for a destination prefix. One of these attributes is origin, which indicates how BGP learned about a route. The origin attribute can have one of three values: IGP, EGP, or Incomplete. IGP means that the route was originated by a network or aggregate statement within BGP or by redistribution from an IGP into BGP. EGP means that the route was learned from an external BGP peer (this value is obsolete since BGP version 4). Incomplete means that the route was learned by some other means, such as redistribution from a static route into BGP. BGP prefers routes with lower origin values, so Incomplete is preferred over EGP, which is preferred over IGP.

Explanation

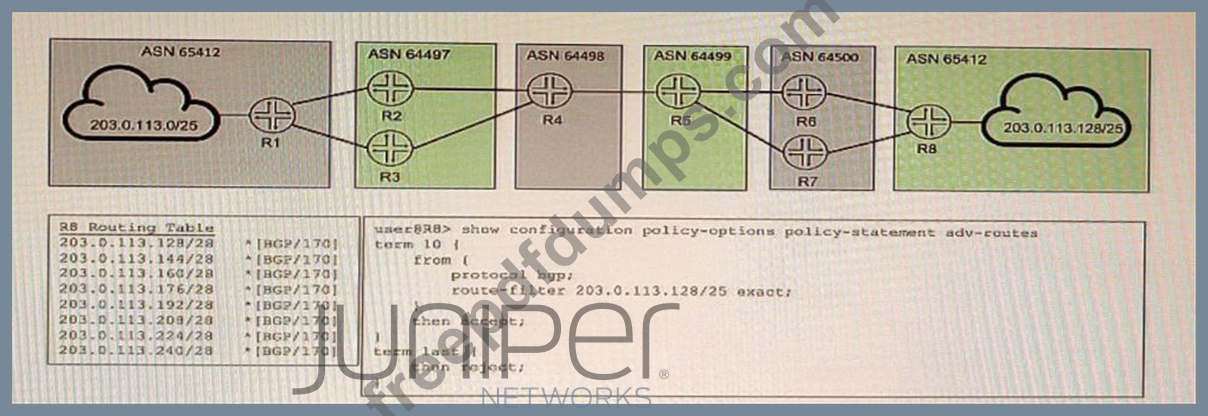

To summarize routes from the 203.0.113.128/25 IP block on R8 to AS 64500, you need to do the following:
* Add the set routing-options static route 203.0.113.128/25 discard command. This creates a static route for the summary prefix and discards any traffic destined to it. This is necessary because BGP can only advertise routes that are present in the routing table.
* Replace exact in the export policy with orlonger. This allows R8 to match and advertise any route that is equal or more specific than the summary prefix. The exact term only matches routes that are exactly equal to the summary prefix, which is not present in the routing table.

Explanation

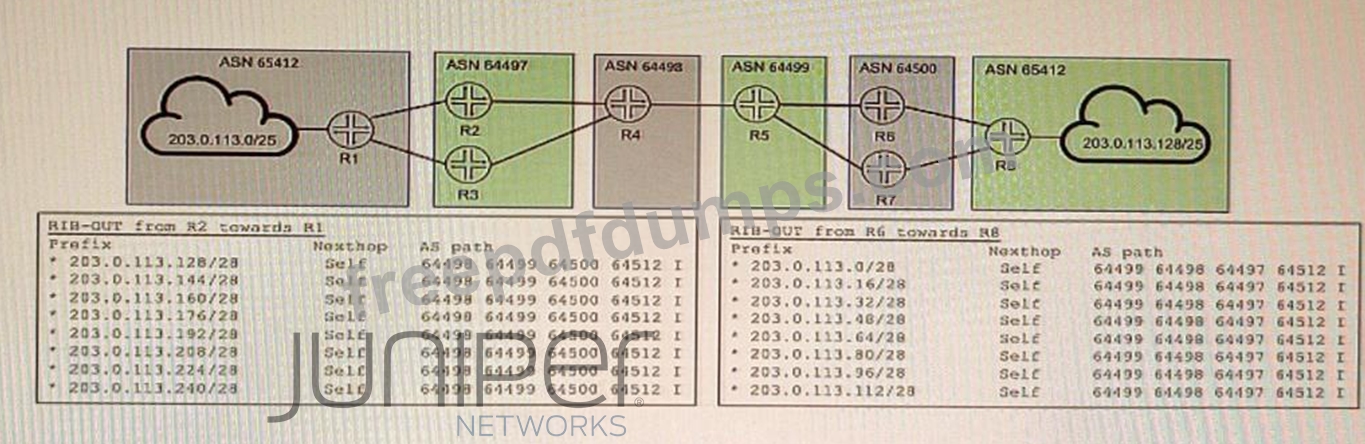

The problem in this scenario is that R1 and R8 are not receiving each other's routes because of private AS numbers in the AS path. Private AS numbers are not globally unique and are not advertised to external BGP peers. To solve this problem, you need to do the following:
* Configure loops on routers in AS 65412 and advertise-peer-as on routers in AS 64498. This allows R5 and R6 to advertise their own AS number (65412) instead of their peer's AS number (64498) when sending updates to R7 and R8. This prevents a loop detection issue that would cause R7 and R8 to reject the routes from R5 and R62.
* Configure remove-private on advertisements from AS 64497 toward AS 64498 and from AS 64500 toward AS 64499. This removes any private AS numbers from the AS path before sending updates to external BGP peers. This allows R2 and R3 to receive the routes from R1 and R4, respectively3.

Explanation
Transmission scheduling is a CoS feature that allows you to allocate bandwidth among different queues on an interface. Each queue has a configured bandwidth percentage that determines how much of the available bandwidth it can use. If a queue exceeds its allocated bandwidth, it is considered to have negative bandwidth credit and its excess traffic will be discarded by default. If a queue does not use all of its allocated bandwidth, it is considered to have positive bandwidth credit and its unused bandwidth can be shared by other queues.
