Case Study: 7
Woodgrove Bank
Overview
Existing Environment
Active Directory Environment
The network contains a single Active Directory production forest named woodgrovebank.com.
Currently, there is no trust relationship between the Active Directory forests of Woodgrove Bank and
Contoso.
Network Environment
Woodgrove Bank has a perimeter network that hosts Internet-facing servers.
Woodgrove Bank uses Hyper-V Network Virtualization to isolate its production, development, and test
environments.
Woodgrove Bank has a Microsoft Azure subscription.
System Center Environment
Woodgrove Bank deploys infrastructure servers that host the following System Center 2012 R2 components.
Operations Manager
*
Data Protection Manager (DPM)
*
Virtual Machine Manager (VMM)
*
Woodgrove Bank plans to deploy Service Provider Foundation, System Center 2012 R2 Orchestrator, and
System Center 2012 R2 Service Manager.
All of the internal Hyper-V hosts and the file servers on the Woodgrove Bank network are registered with
VMM. VMM and Windows Server Update Services (WSUS) are integrated. Woodgrove Bank has three
VMM logical networks intended for clients, management, and storage. Each VMM logical network is
configured to use a host group of All Hosts.
The Operations Manager agent is deployed to each server.
On-premises Computing and Application Environment

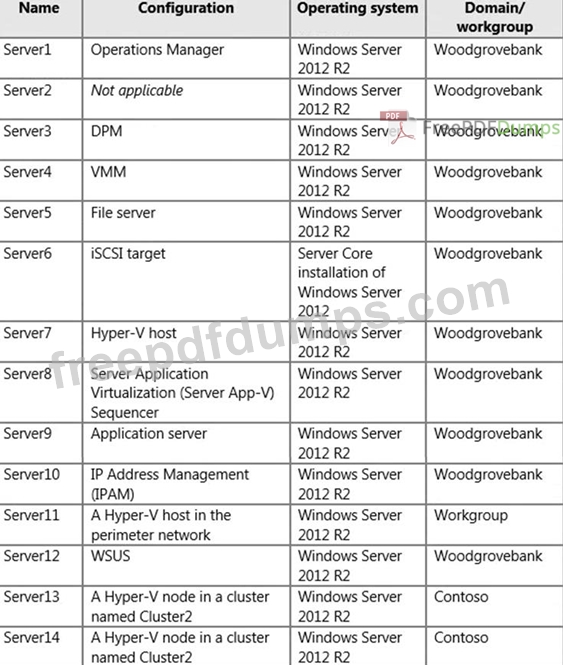

The main office has the servers configured as shown in the following table.
Server5 and Server6 were added to VMM by using explicit user credentials.
A Windows update named Update1 is part of the baseline assigned to All Hosts.
Server3 is configured to have a 2-TB storage pool. Tapes are used for long term backup.
An application named App2 is installed on Server9. App2 requires complex installation and manual setup.
Requirements
Planned Changes
Woodgrove Bank plans to implement the following changes:
Deploy Service Manager.
*
Integrate Orchestrator and Service Manager.
*
Deploy all of the components of Orchestrator.
*
Deploy Service Provider Foundation to Server2.
*
Replace the tape backups with Microsoft Azure Backup.
*
Use a domain account named WOODGROVEBANK\vmmuser1 to view and modify the IP address
*
space in IPAM.
Provide additional SMB storage to Server7 from Server5.
*
Provide additional iSCSI storage to Server7 from Server5.
*
Connectivity Requirements
Woodgrove Bank identifies the following connectivity requirements:
Minimize the Internet bandwidth used by the backups.
*
Create a logical switch that will allow you to restrict host access to the logical networks of the clients
*
only.
Provide external connectivity to the virtual machine networks that are isolated from the clients by
*
using the Network Virtualization using Generic Routing Encapsulation (NVGRE) gateway.
Application Requirements
Woodgrove Bank identifies the following application requirements:
Minimize the number of VMM service template versions used to deploy App1.
*
Create Server App-V packages while minimizing the impact on the existing environment.
*
Deploy five instances of a multi-tier application named App1 by using a VMM service template. Each
*
instance will have different deployment settings.
Compliance Requirements
Woodgrove Bank identifies the following compliance requirements:
Use the principle of least priviledge, whenever possible.
*
Leverage Azure-based services for assessing the on-premises environment.
*
Exclude Server7 from the installation of Update1. The missing patch must not affect the compliance
*
status of Server7 against the baseline assigned to All Hosts.
