Hotspot Question
You have an on-premises network.

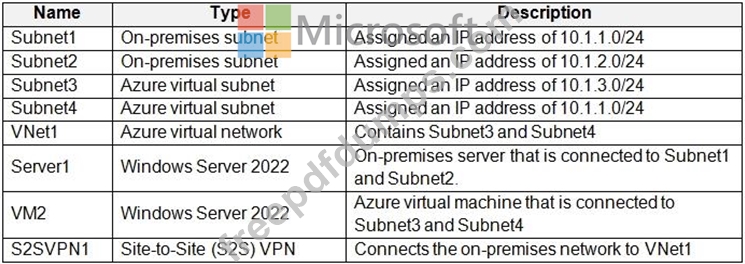

You have an Azure subscription that contains the resources shown in the following table.

You need to ensure that on-premises devices can communicate with Azure resources that are connected to Subnet4.

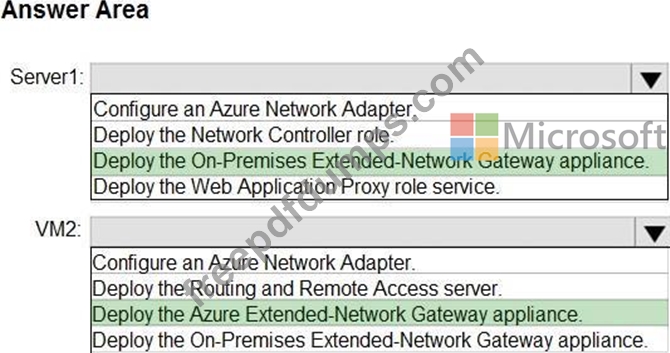

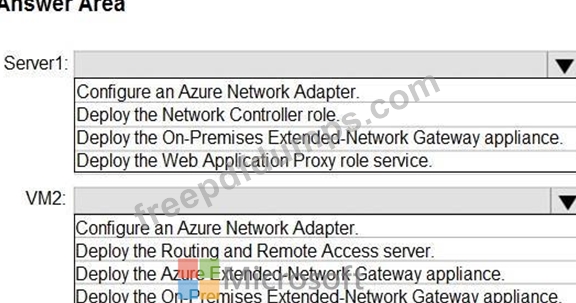

What should you do on each resource? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

You have an Azure virtual network that contains two subnets named Subnet1 and Subnet2.
Subnet1 contains a virtual machine named VM1. Subnet2 contains a virtual machine named VM2.
You have two network security groups (NSGs) named NSG1 and NSG2. NSG1 has 100 inbound security rules and is associated to VM1. NSG2 has 200 inbound security rules and is associated to Subnet1.
VM2 cannot connect to VM1.
You suspect that an NSG rule blocks connectivity.
You need to identify which rule blocks the connection. The issue must be resolved as quickly as possible.
Which Azure Network Watcher feature should you use?

You have an Azure subscription that contains an ExpressRoute Standard gateway named GW1.
You need to upgrade GW1 to support ExpressRoute FastPath. The solution must minimize downtime.
Which SKU should you use?

Hotspot Question
You have two Azure virtual networks named Vnet1 and Vnet2 in an Azure region that has three availability zones.
You deploy 12 virtual machines to each virtual network, deploying four virtual machines per zone.
The virtual machines in Vnet1 host an app named App1. The virtual machines in Vnet2 host an app named App2.
You plan to use Azure Virtual Network NAT to implement outbound connectivity for App1 and App2.
You need to identify the minimum number of subnets and Virtual Network NAT instances required to meet the following requirements:
- A failure of two zones must NOT affect the availability of either
App1 or App2.
- A failure of two zones must NOT affect the outbound connectivity of
either App1 or App2.

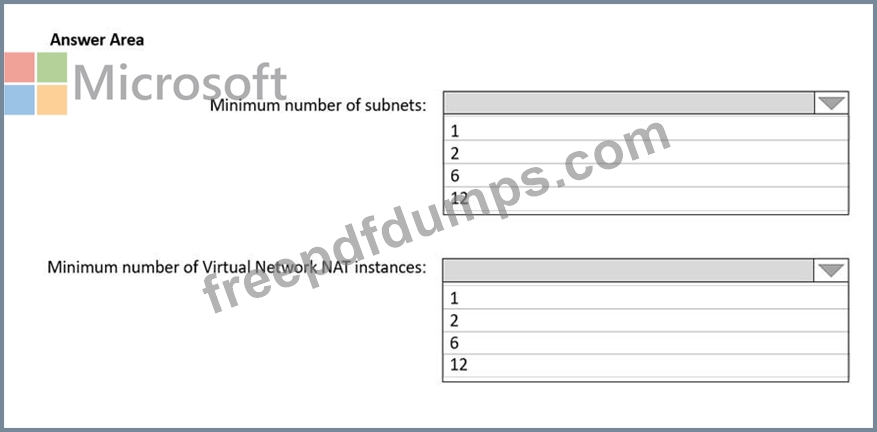

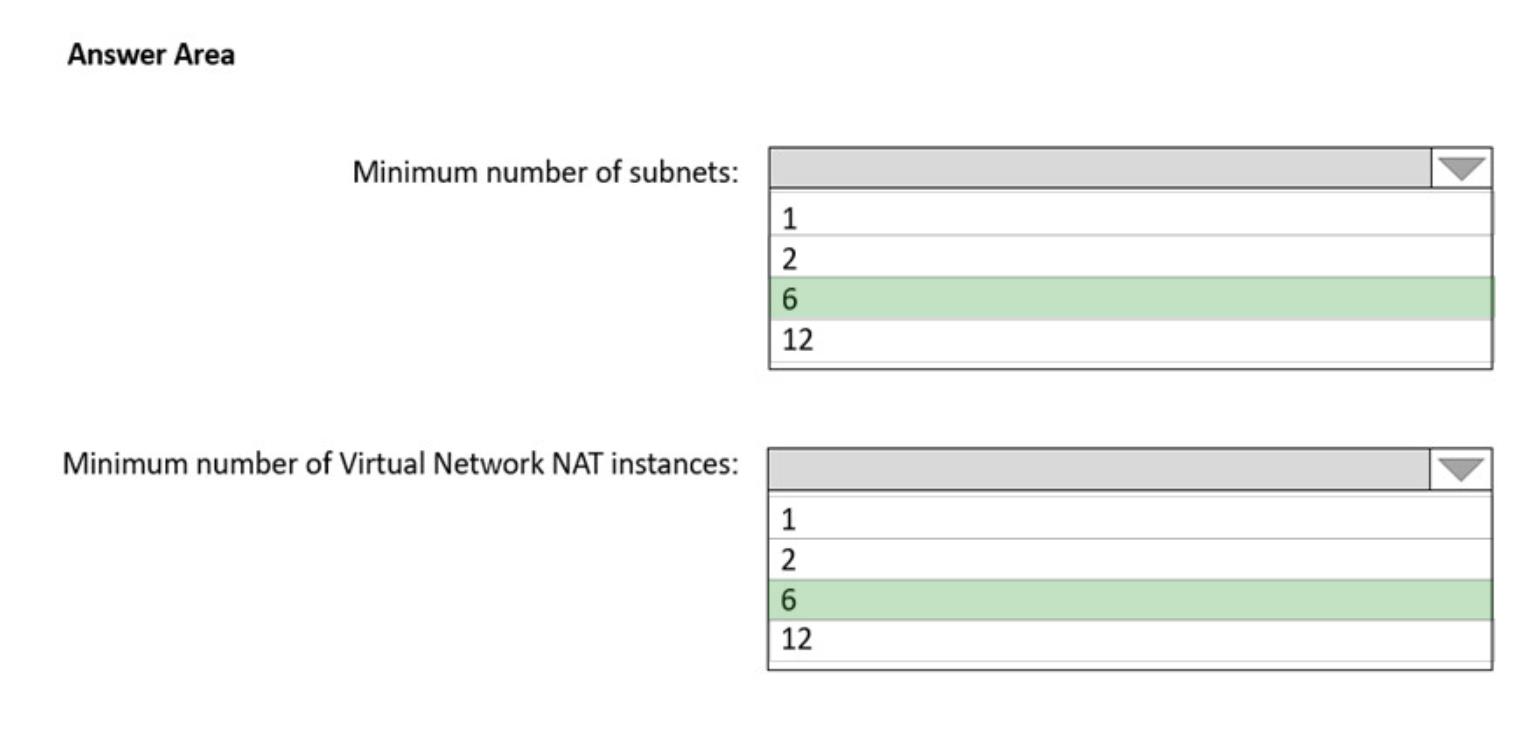

What should you identify? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

Hotspot Question

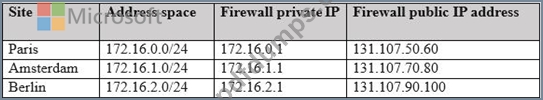

You have an on-premises network that includes the sites shown in the following table.

Each site is connected to the Internet by a firewall. All sites are connected to an SD-WAN. Each site is configured to propagate routes by using BGP.
You have an Azure subscription that includes a virtual network named Vnet1 that contains a Virtual Network Gateway named Gateway1.

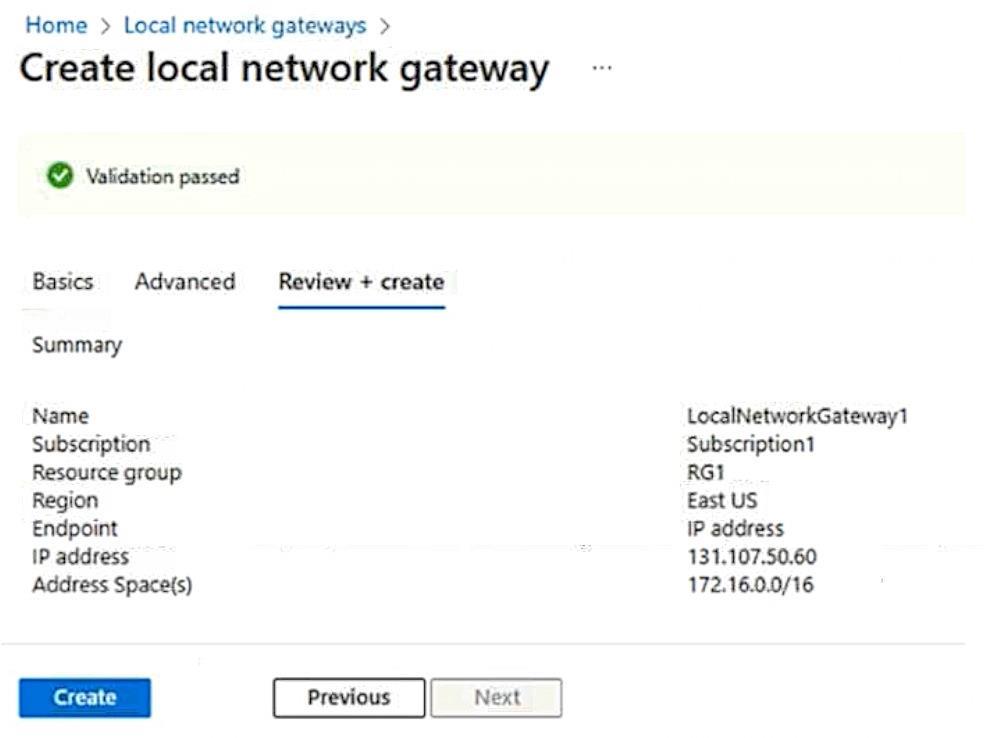

You create a local network gateway with the configuration shown in the gateway exhibit (Click the Gateway tab.)

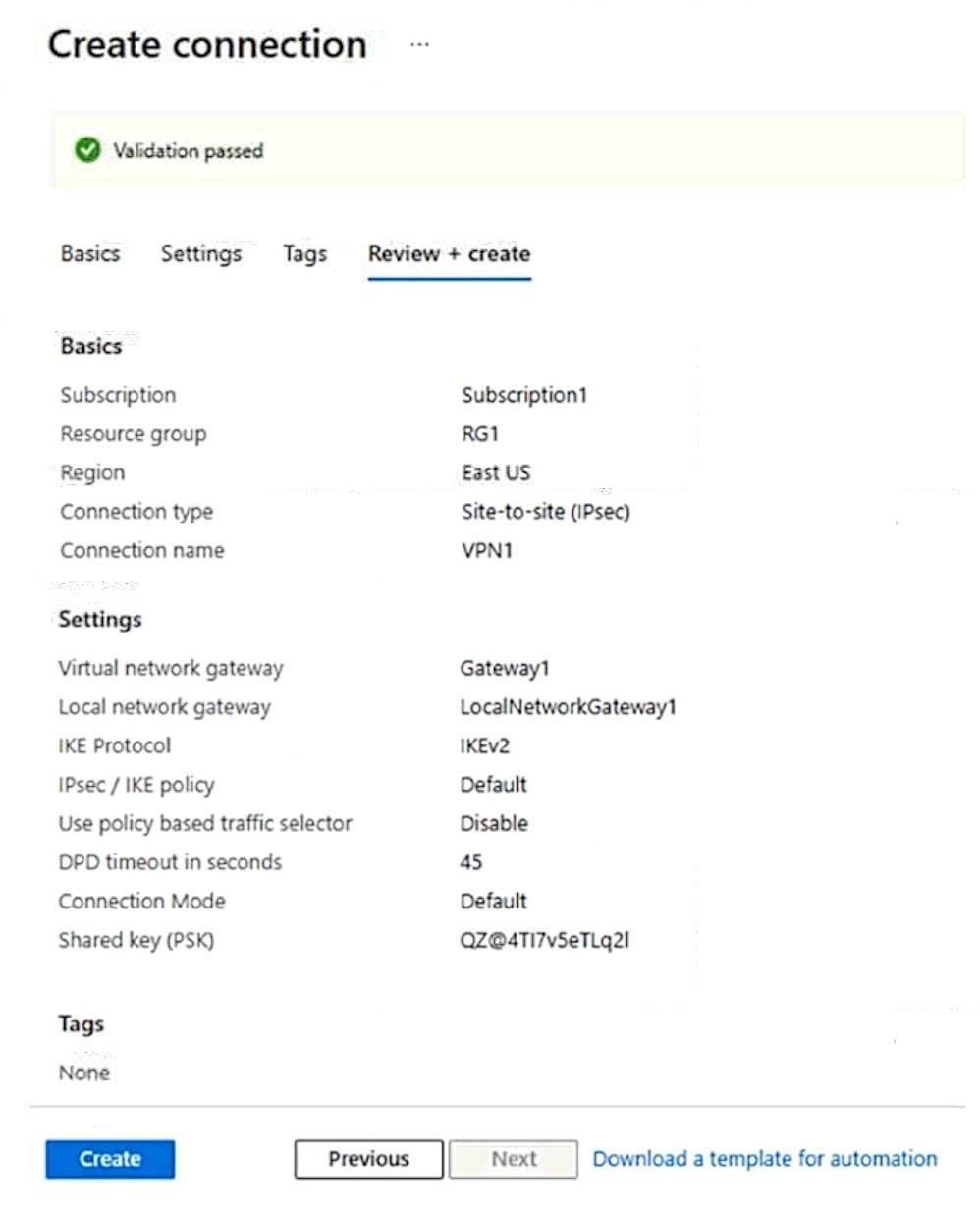

You create a Site-to-Site (S2S) connection with the configuration shown in connection exhibit.
(Click the Connection tab.)

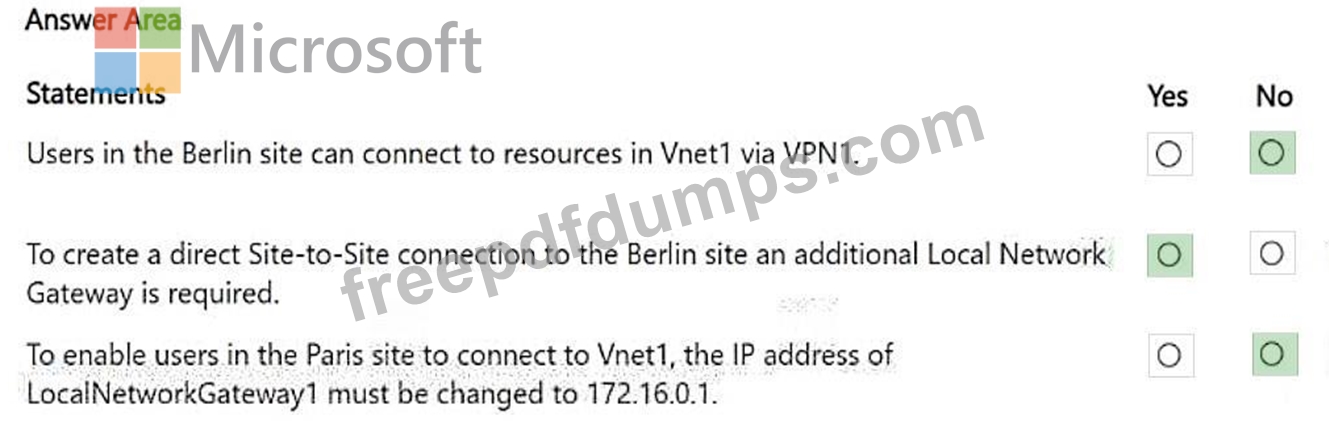

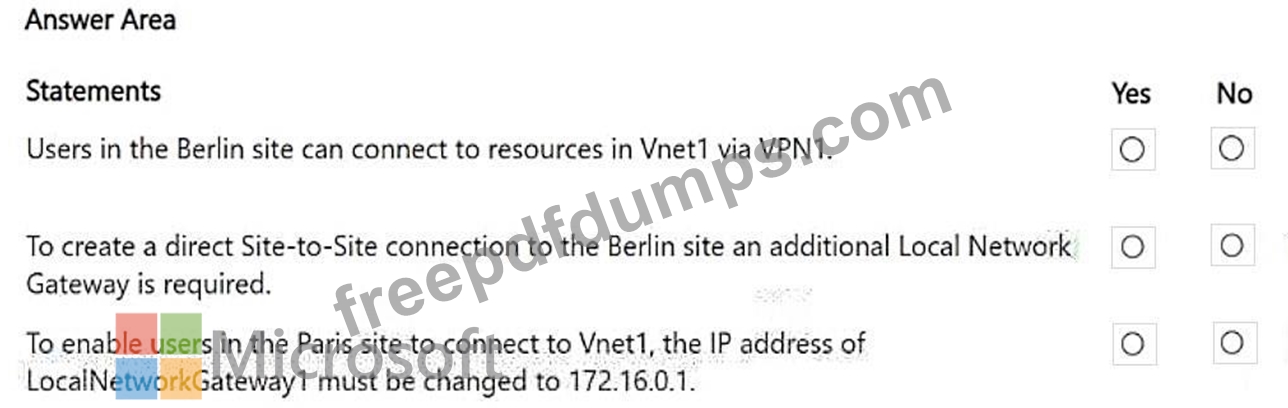

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
